4/5
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375917
FOR COMMANDER XTR TRACK SYSTEM AND ARTIC CAT 500 to 1000 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810511
•
A-2810511-EN
4
Rear suspension brackets installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to
move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) On the vehicle, unbolt the original nut
BB
and remove the original bolt
AA
of the suspension bracket. Keep them for
a later reinstallation. See
figure 4.
2) Position the rear suspension bracket in place and fix it using the M10-1.5 x 140-mm bolt
02
and the M10-1.5 nylon
nut
05
.
3) Place the M8 U-bolt
03
and fix it in place using an M8 flat washer
06
(place the washer on the oblong hole side) and
the two (2) M8-1.25 nuts
04
.

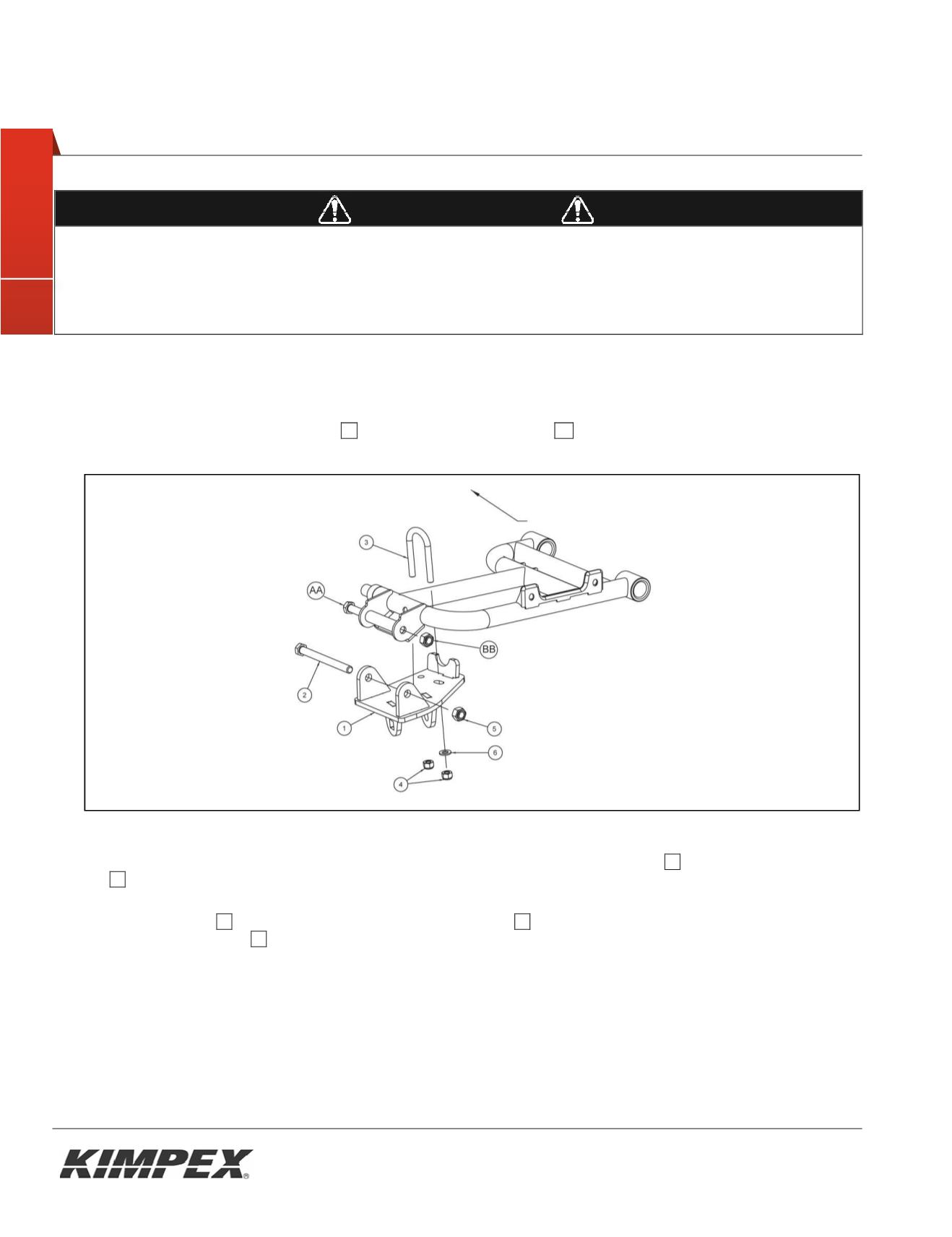

Fig. 4
Front of the ATV
