3/5
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375917
FOR COMMANDER TRACK SYSTEM AND ARTIC CAT 500 to 1000 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810511
•
A-2810511-EN
•
Lithographié au Canada / Litho’d in Canada
3
Front A-arm brackets installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive
mode with the gearbox in neutral. After lifting the vehicle and
removing the wheels:
1) Insert the carriage bolt
G
into the hole identified by a label
on the A-arm bracket
02
. See
Figure 2.
In the packaging, this bolt is mounted on the rod end
M
of the front anti-rotation arm
2) Lean the A-arm bracket
02
under the front lower
suspension arm taking care that the suspension table
tubes are firmly pressed down on the half-moon brackets
of the A-arm bracket.
3) Fix the A-arm bracket to the suspension arm using the
front clamping plate
01
, the carriage bolt
03
, the M12 flat
washer
05
and the M12 nylon nut
04
.
4) Ensure that the A-arm bracket is well positioned in the
half-moon brackets and tighten all nuts in place.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned A-arm bracket could give some play, which could make driving riskier as well as lead to breakage to
the vehicle, a loss of control and serious injuries.

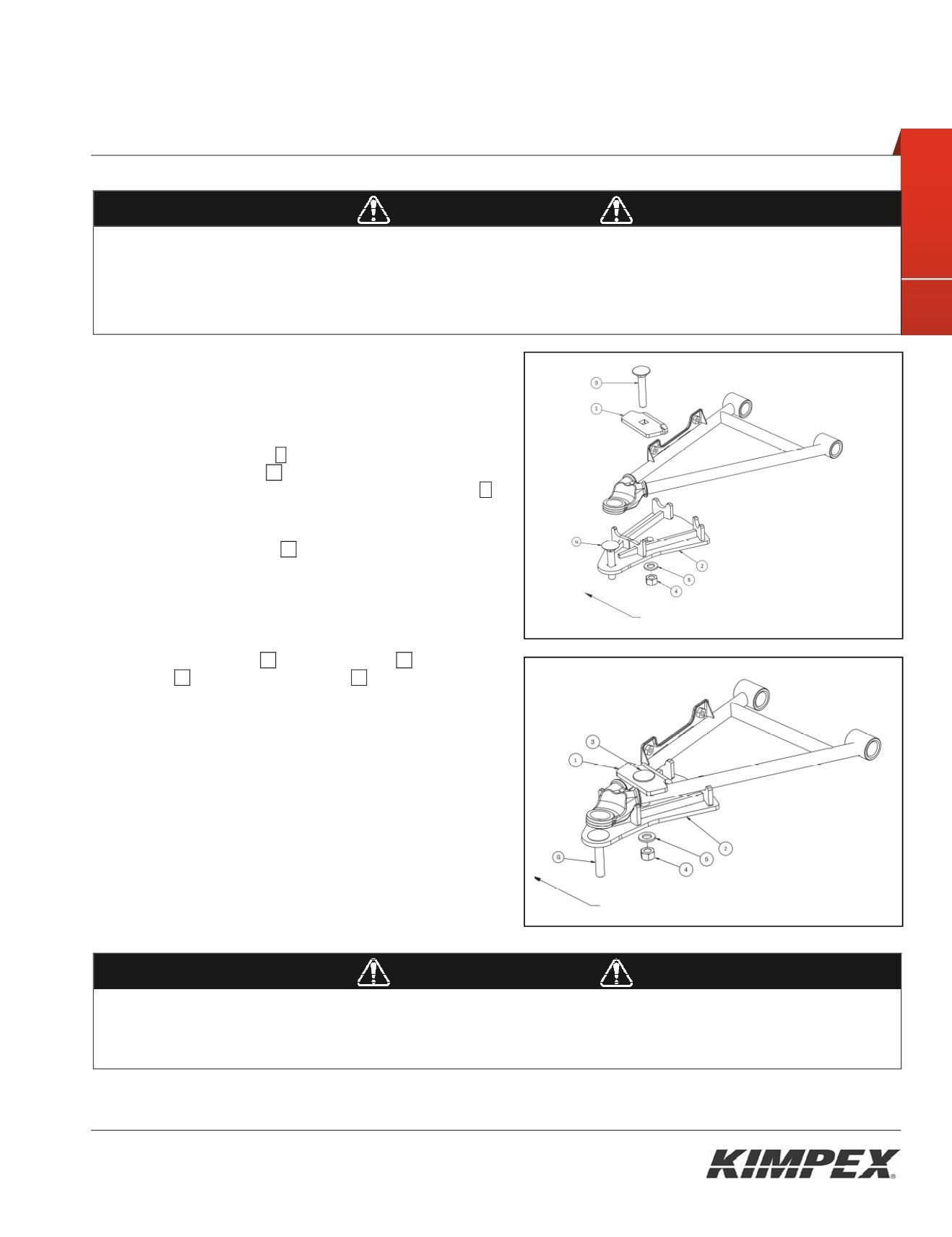

Fig. 2
Front of the ATV
CHÂSSIS AVANT
Fig. 3
Front of the ATV
CHÂSSIS AVANT
