INSTALLATION
Front frame anti-rotation arm installation
CAUTION:
Installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove the plastic cap
39
,
Assemble the free extremity of the front anti-rotation arm
C
to the hole made for this purpose in the frame of the
track kit using the hex bolt
F
, the flat washer
K
, the tightening spacer
E
, the neoprene flat washer
D
, the fender
washers
L
and the nylon nut
I
. See
figure 3.
Torque to 23 ft-lbs.
CAUTION: Attention, many holes are available on the anti-rotation fixation plate; take the one that which will make
so that the track kit is correctly in contact with the ground.
2) Reinstall the plastic cap
39
removed in
step 1.
3) Repeat
steps 1
to
3
for the opposite side.

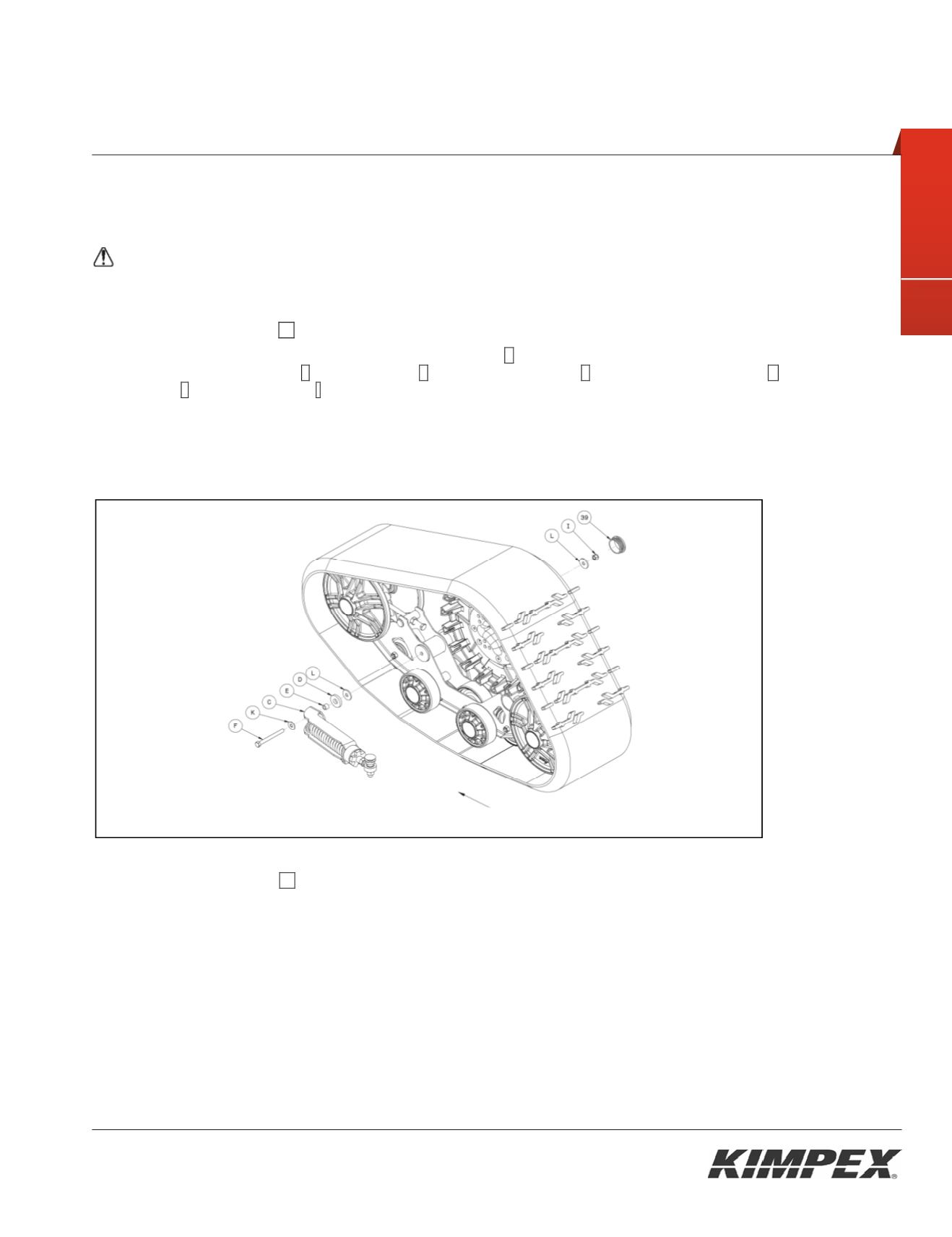

Fig. 3
Front of the ATV
