7/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375921
FOR COMMANDER WTX TRACK SYSTEM. A-ARM SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-01-33
•
A-2810479-01-33-EN
•
Lithographié au Canada / Litho’d in Canada
7
Commander WTX Installation of the rear ant-rotation arm on the frame
1) Assemble the free extremity of the rear anti-rotation arm
02
to the hole made for this purpose in the plastic frame of
the track kit using the bolt
04
, the flat washer
06
, the tightening spacer
03
, the two (2) fender washers
07
and one
nylon nut
05
. Torque to 23 ft-lbs. (see
figure 5
)
2) Repeat
step 1
for the opposite side

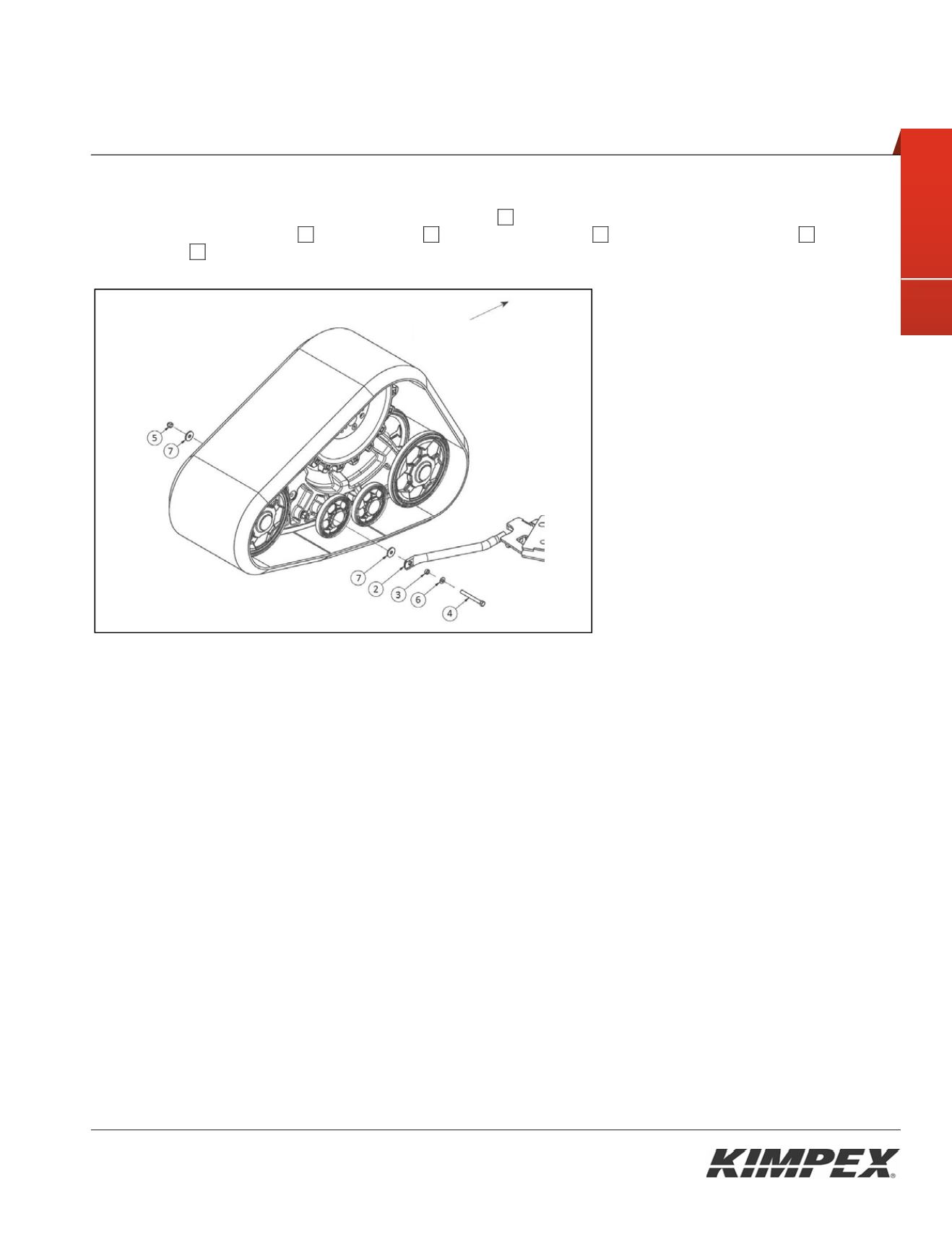

Fig. 5
Front of the ATV
