5/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375921
FOR COMMANDER WTX TRACK SYSTEM. A-ARM SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-01-33
•
A-2810479-01-33-EN
•
Lithographié au Canada / Litho’d in Canada
5
INSTALLATION
Installation of the anti-rotation arm on the front frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Assemble the free extremity of the front anti-rotation arm
C
to the hole made for this purpose in the frame of the
track kit using the hex bolt
F
, the flat washer
K
, the tightening spacer
E
, the neoprene flat washer
D
, the fender
washers
L
and the nylon nut
I
. See
figure 3.
Torque at 23 ft-lbs
CAUTION: Three (3) holes are available on the anti-rotation fixation plate; take the one that which will make so that
the track kit is correctly in contact with the ground.
2) Repeat
step 1
for the opposite side.

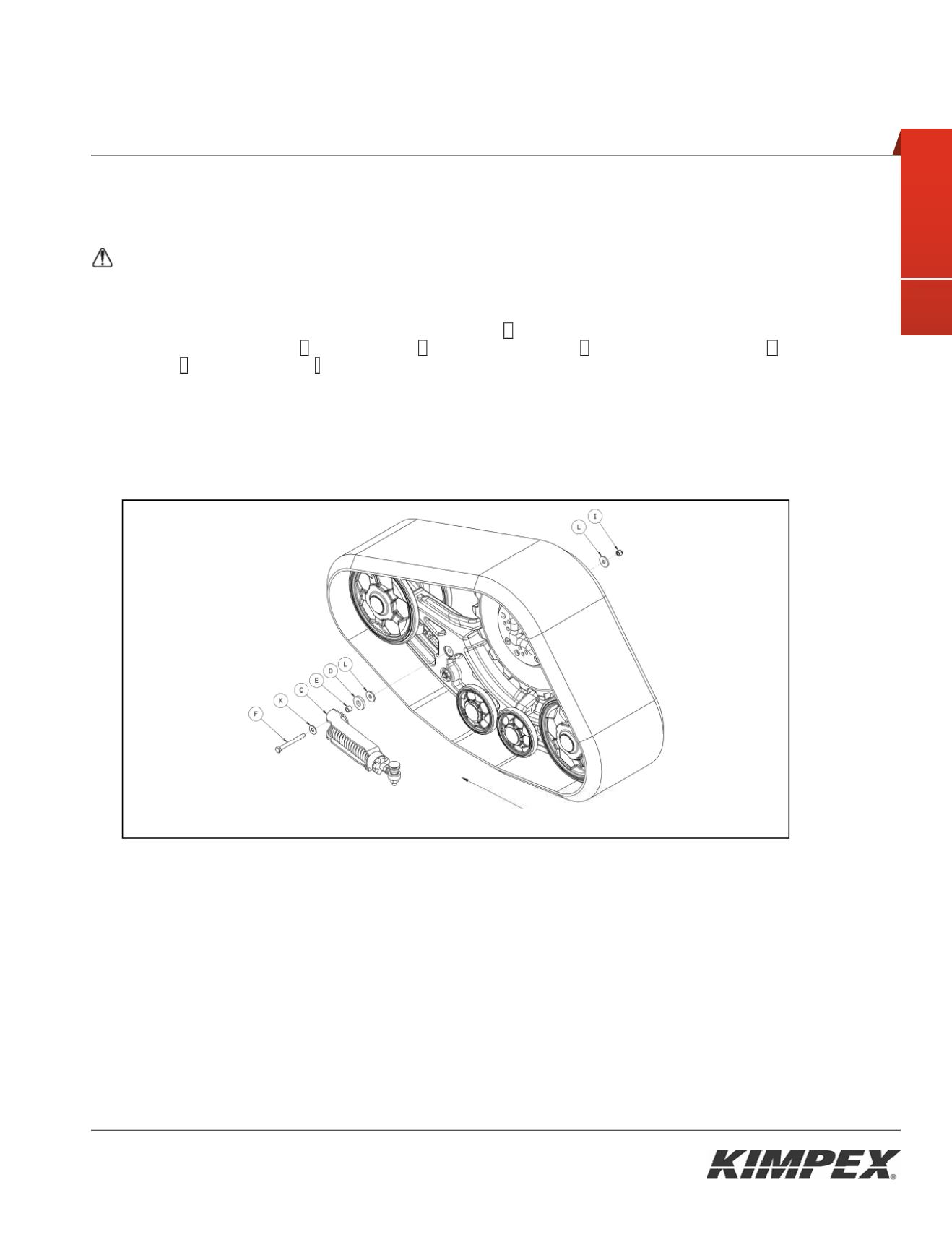

Fig. 3
Front of the ATV
