3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS KIT
KIMPEX N
°
375920
FOR COMMANDER TREX TRACK KIT AND A - ARM SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-01-32
•
A-2810479-01-32-EN
•
Lithographié au Canada / Litho’d in Canada
3

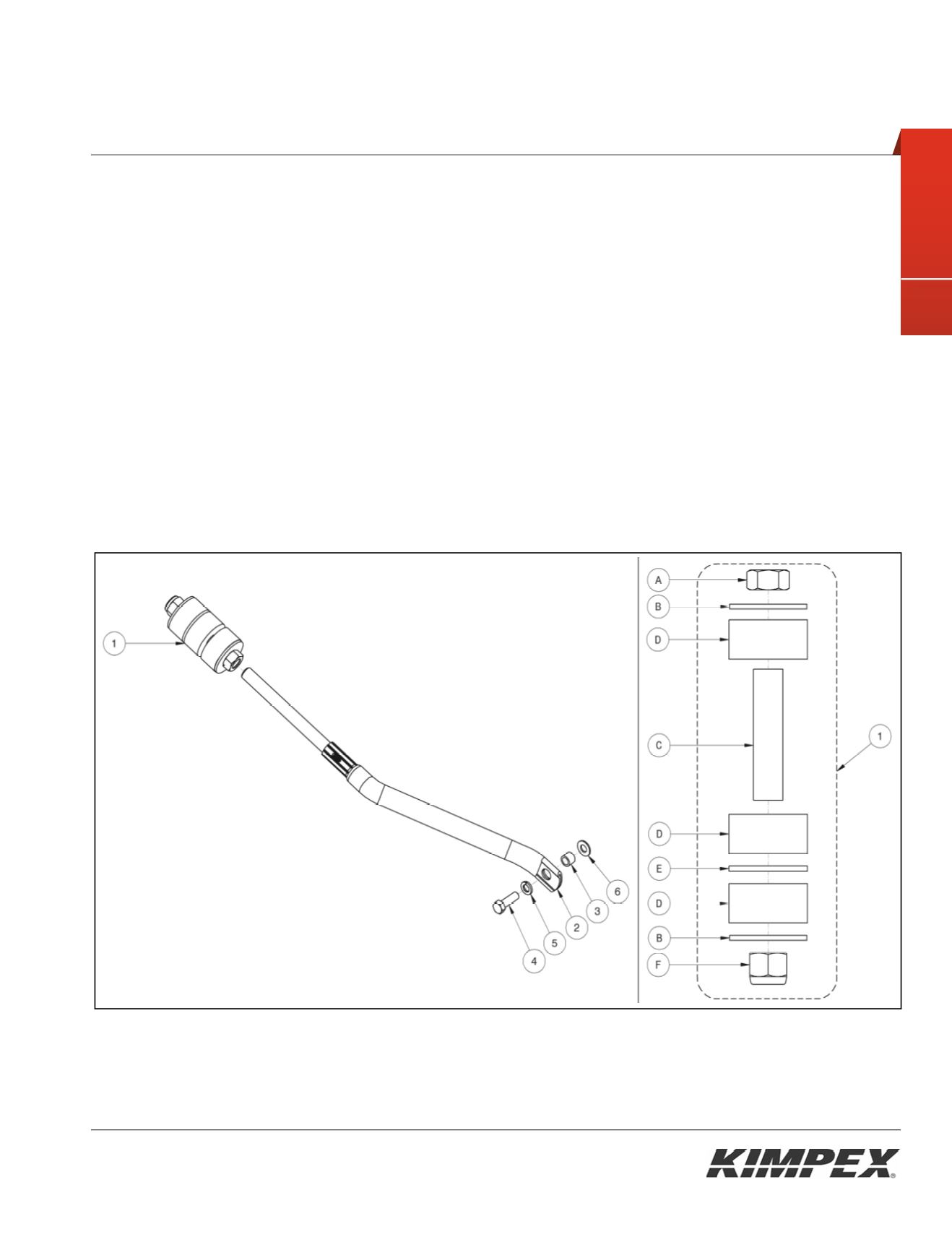

REAR ANTI-ROTATION ARM
(2810479-01-32)
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
Rear hardware set
7810182-1
1
A
5/8"-11 Cl. 5 hex. nut
S4111-11000-052
1
2
Rear anti-rotation tube welded
7810304-40-1000
1
B
50mm DE x 17mm DI x 3mm
Flat washer
S4612-M1600-01W
2
3
9/16" DE x 0.3965" DI x 0.44"
Tightening spacer
Q2212-10082
1
C
Steel slider sleeve
2510039-3-20-2000
1
4
3/8" - 16 x 1-1/4 Cl. 5 hex bolt
S1711-00610-052
1
D
Rubber bushing
2510039-1-30-6000
3
5
Lock washer
S4511-00600-002
1
E
51mm DE x 19mm DI x 3mm
Flat washer
S4612-01200-022
1
6
3/8" flat washer yellow ZP
S4612-00600-0S1
1
F
5/8"-11 Nylon nut
S4186-11000-022
1
Fig. 2
