INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375917
FOR COMMANDER TRACK SYSTEM AND ARTIC CAT 500 to 1000 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810511
•
A-2810511-EN
•
Lithographié au Canada / Litho’d in Canada
5
4) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
Mounting Holes on the Hub of the Track System
To install your track system, use the holes indicated in the following figure.
CAUTION
: Use the chromed wheel nuts No. 015696 supplied to replace the original wheel nuts of the vehicle.

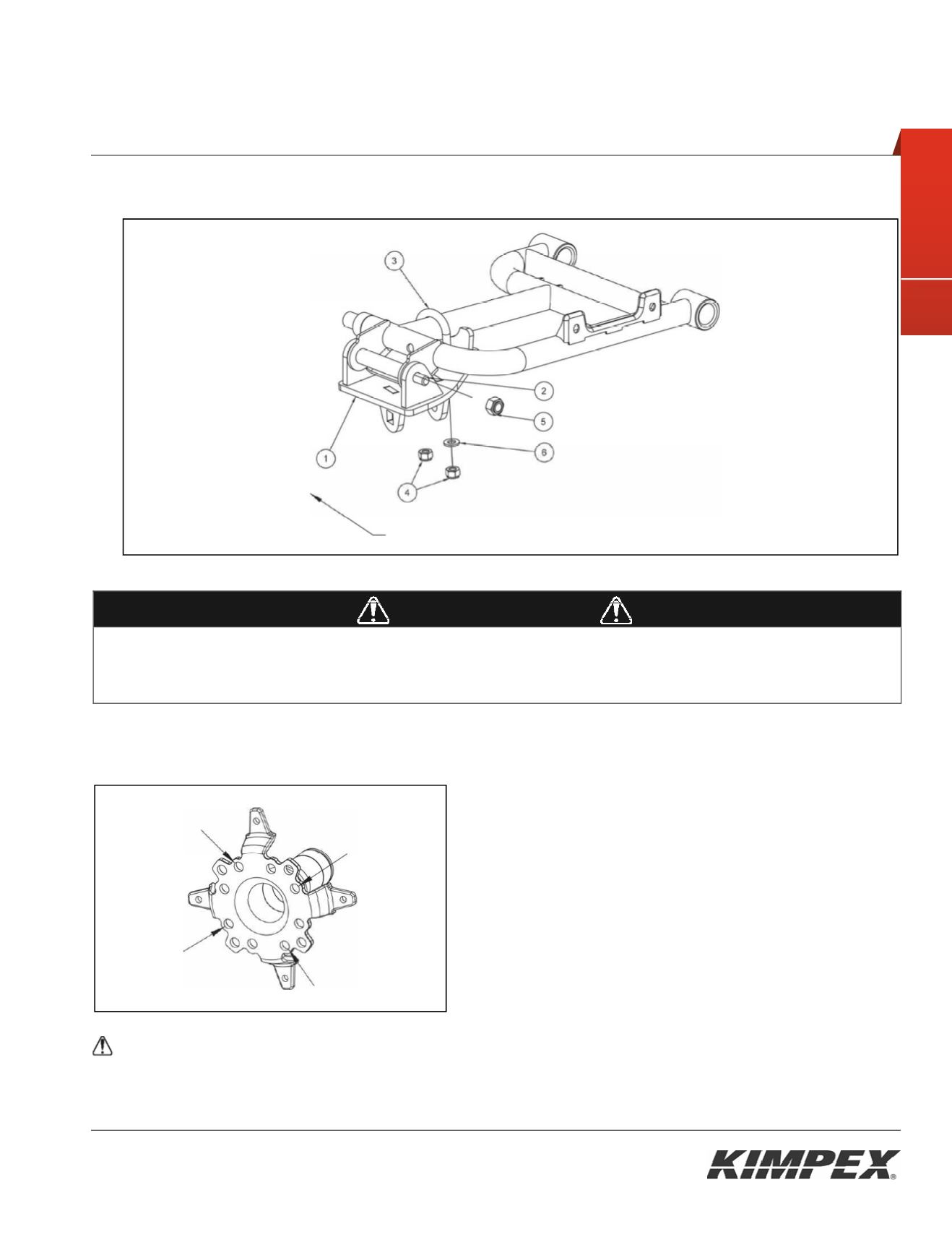

Fig. 13
Fig. 5
Front of the ATV
