INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375915
FOR COMMANDER TRACK SYSTEM AND KAWASAKI BRUTE FORCE 650 RIGID VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810506
•
A-2810506-EN
•
Lithographié au Canada / Litho’d in Canada
5
4) Set the rear suspension bracket
02
in place and secure it using the two (2) 3/8" "U"-bolts
04
and the four (4) flanged
nuts
05
. See
figure 6.
5) Tighten all nuts in place.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.

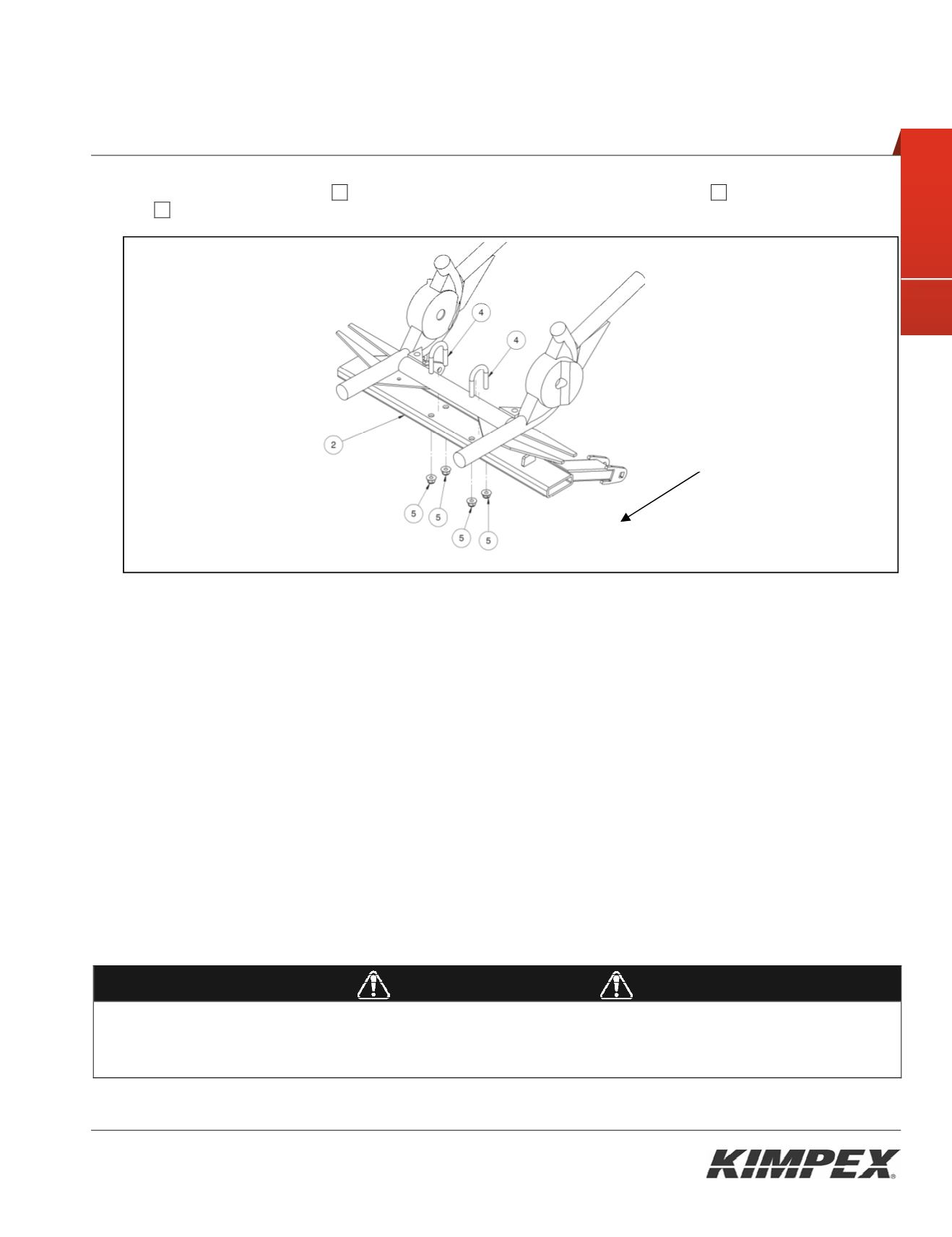

Fig. 6
Front of the ATV
