4
Rear suspension bracket installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode
with the gearbox in neutral. After lifting the vehicle and removing the
wheels:

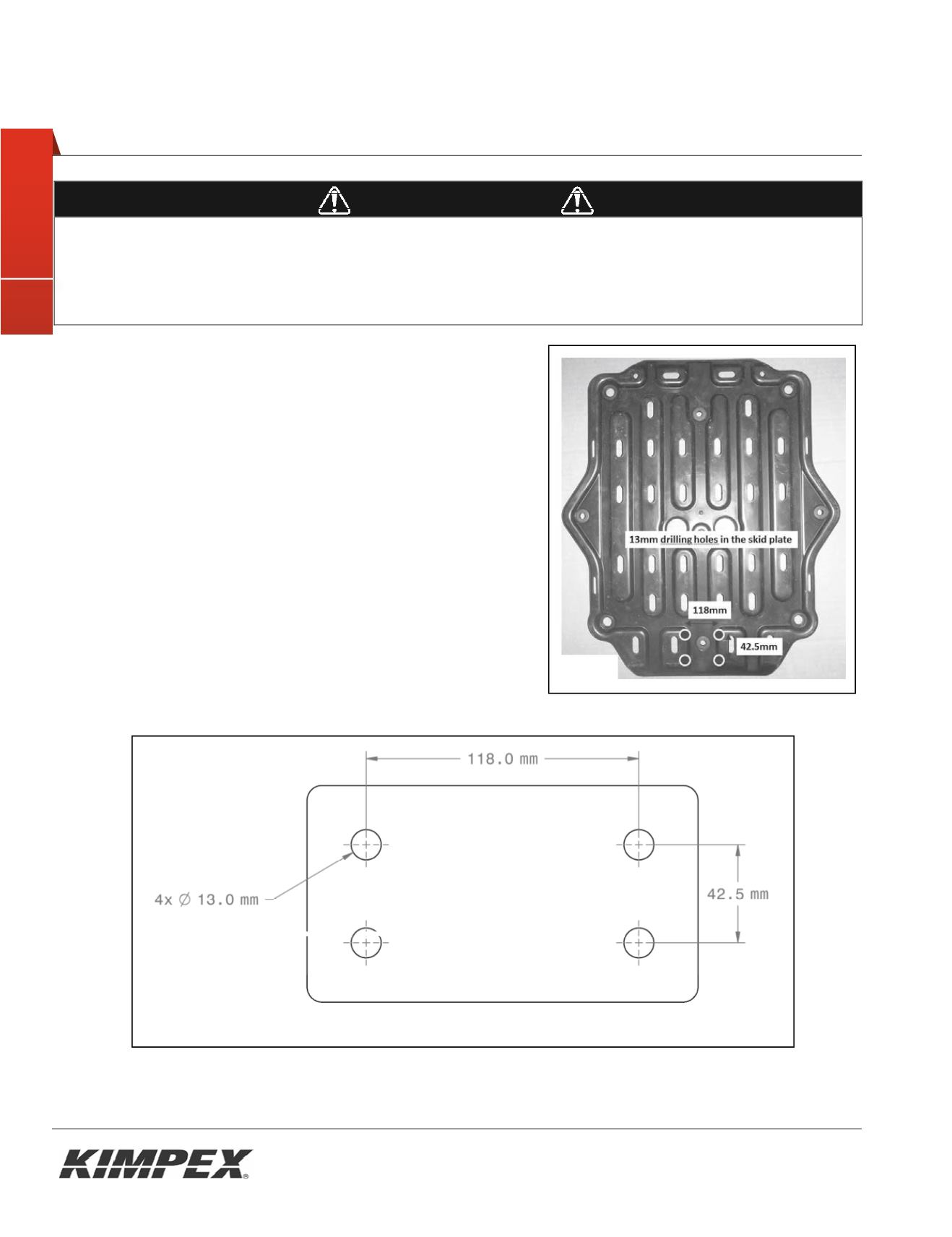

1) Remove the skid plate located under the vehicle. See
figure 4.
2) Using the drilling template provided on the last page, drill the skid
plate. Use a drill with a diameter of 13mm (+- 33/64 po).
3) Reinstall the skid plate, removed in step 1
Fig. 4
Drilling template provided on the last page
Fig. 5
