INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375914
FOR COMMANDER TRACK SYSTEM AND HONDA FOREMAN 450ES VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810504
•
A-2810504-EN
2
FRONT A-ARMS BRACKETS
REAR SUSPENSION BRACKET
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
Front-left A-arm bracket
2810181-1000
1
1
2" Main axle adapter
7810149-9000C
1
Front-right A-arm bracket
2810181-2000
1
2
Subplate extension
2810181-6000
1
2
Front-left clamping plate
2810181-4000
1
3
Rear anti-rot. Arm support
2810182-3000
2
Front-right clamping plate
2810181-3000
1
4
Subplate
81-570-01-1000
1
3
3/8-16 x 2-1/4" Cl. 5 hex bolt
S1711-00618-052
4
5
M10-1.25 x 30mm Cl. 8.8 hex bolt S1211-10030-0D1
8
4
3/8-16 Nylon nut
S4186-10600-022
4
6
3/8-16 x 1" Cl. 5 hex bolt
S1711-00608-052
10
7
M10-1.25 Wheel nut
S4178-M010M-028
8
8
3/8-16 Nylon nut
S4186-10600-022
10

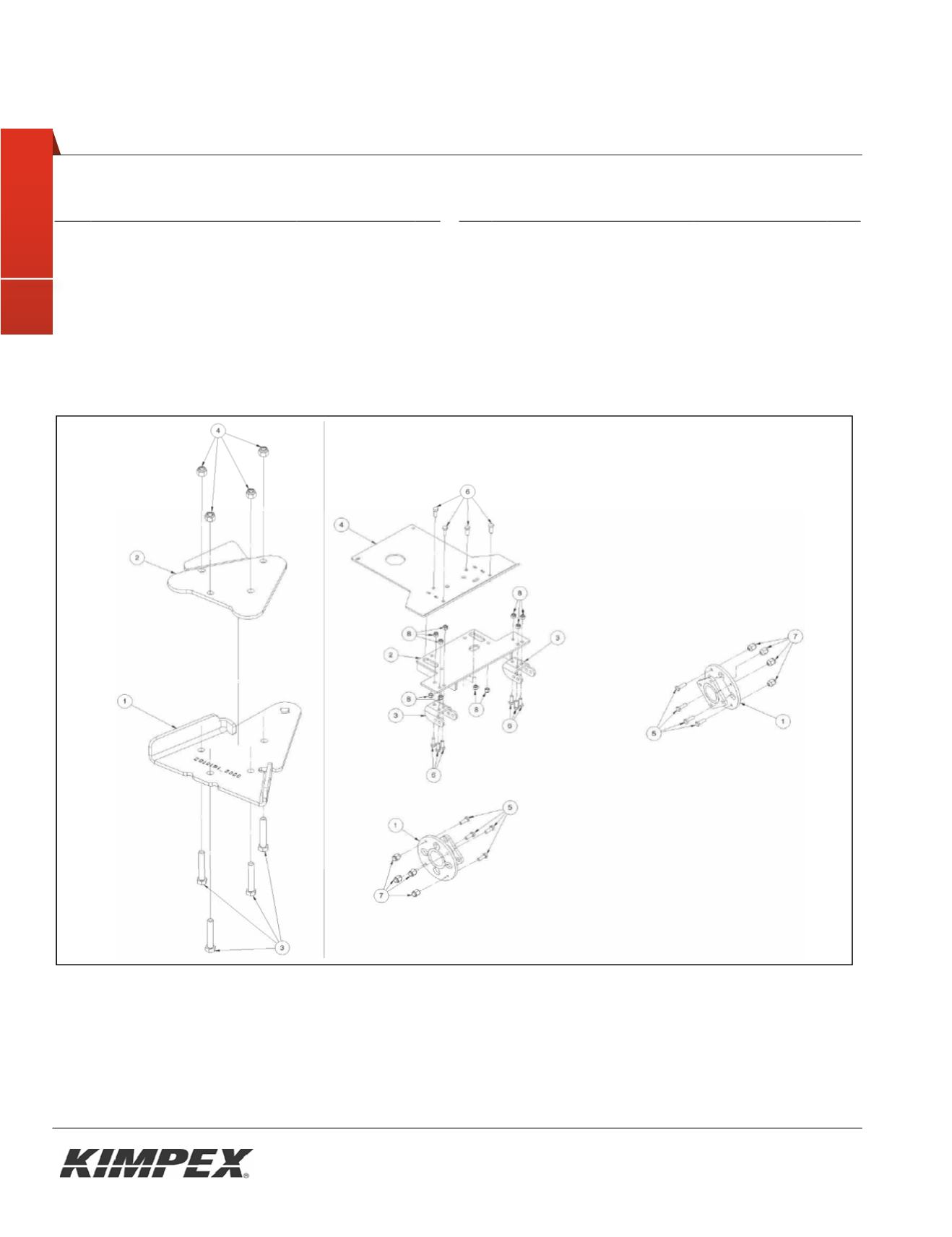

Fig. 1
