3/7
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375911
FOR COMMANDER TRACK SYSTEM AND POLARIS SPORTSMAN 95-04 VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810496
•
A-2810496-EN
•
Lithographié au Canada / Litho’d in Canada
3
Front frame - main axle adapter installation -
CAUTION
: Installing the main axle adapter should be done before installing the track system on the vehicle.
1) Remove and discard two (2) bolts retaining the sprocket to the main axle of the track kit; retain the flat washers. See
figure 2.
CAUTION: Pay special attention to the orientation given to the main axle adapter
01
during installation. The lip, of
the main axle adapter, must fit perfectly the circumference of the main axle.
2) Position the main axle adapter
01
and the additional main axle adapter
02
and fasten using the two (2) Allen socket
machine screws
04
, the flat washers
a
removed in
step
and the two (2) nylon nuts
05
. Torque to 20 ft-lbs.
3) Install the track kit onto the hub of the ATV using the four (4) "T" nuts
03
. Torque to 25 ft-lbs.
NOTE : Recheck torque of the "T" nuts
03
after one hour of use.
4) Repeat
steps 1
to
3
for the opposite side.

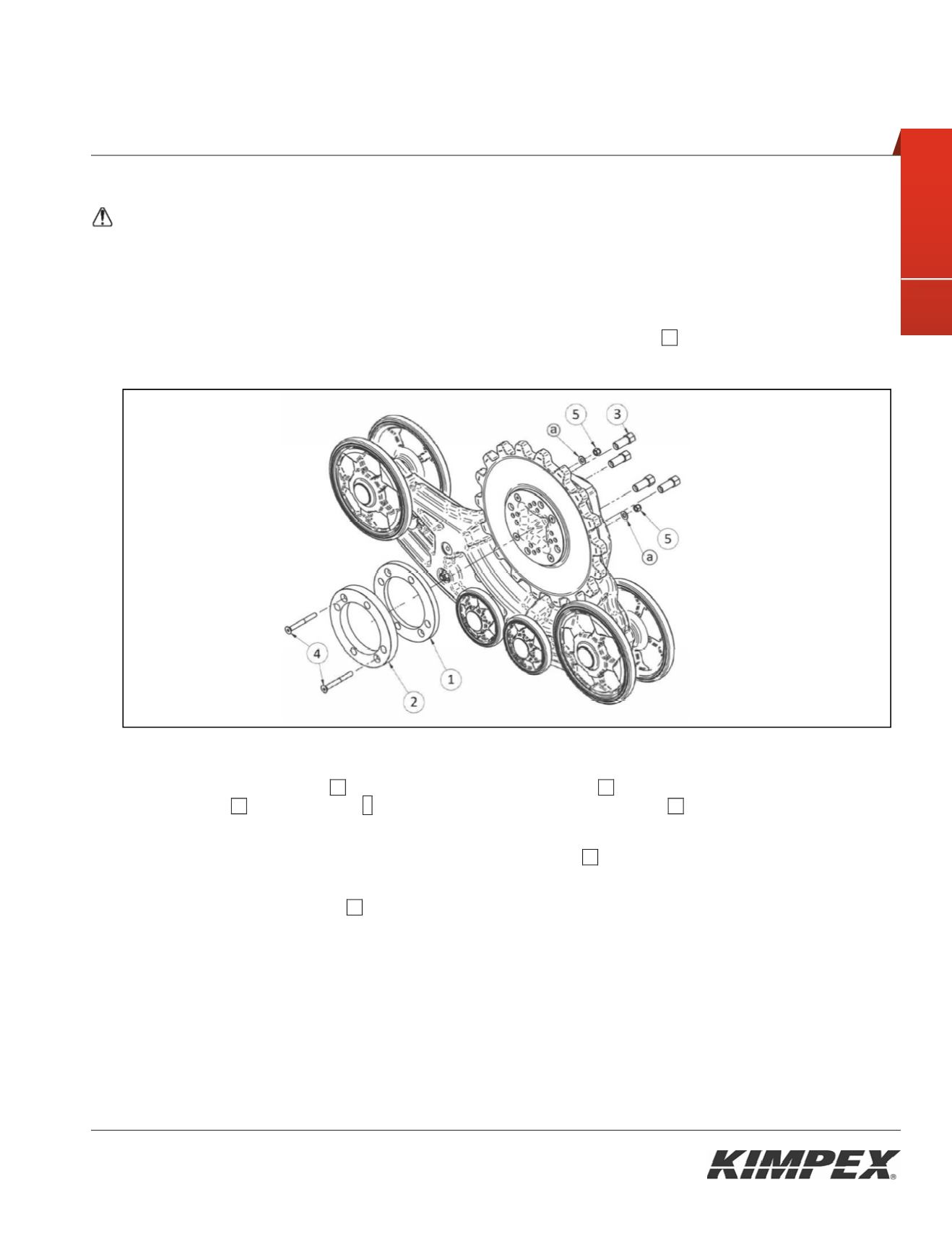

Fig. 2
