4/5
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375904
FOR COMMANDER TRACK SYSTEM AND GRIZZLY 660 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810488
•
A-2810488-EN
4
Rear suspension brackets installation
WARNING
1.
The vehicle must be
immobilized
, the
engine turn off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on its locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to
move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1) Remove the dial protector. Keep the parts for a later reinstallation.
2) On the vehicle, unbolt the original nut
BB
and remove the original bolt
AA
of the suspension bracket. Keep them for
a later reinstallation. See
figure 4A.
3) Position the rear-right suspension bracket in place and fix it using the M10-1.5 x 110-mm bolt
02
and the M10-1.5
nylon nut
05
.
4) Place the M8 U-bolt
03
and fix it in place using an M8 flat washer
06
(place the washer on the oblong hole side) and
the two (2) M8-1.25 nylon nuts
04
.
5) Tighten all bolts in place.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned suspension bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.

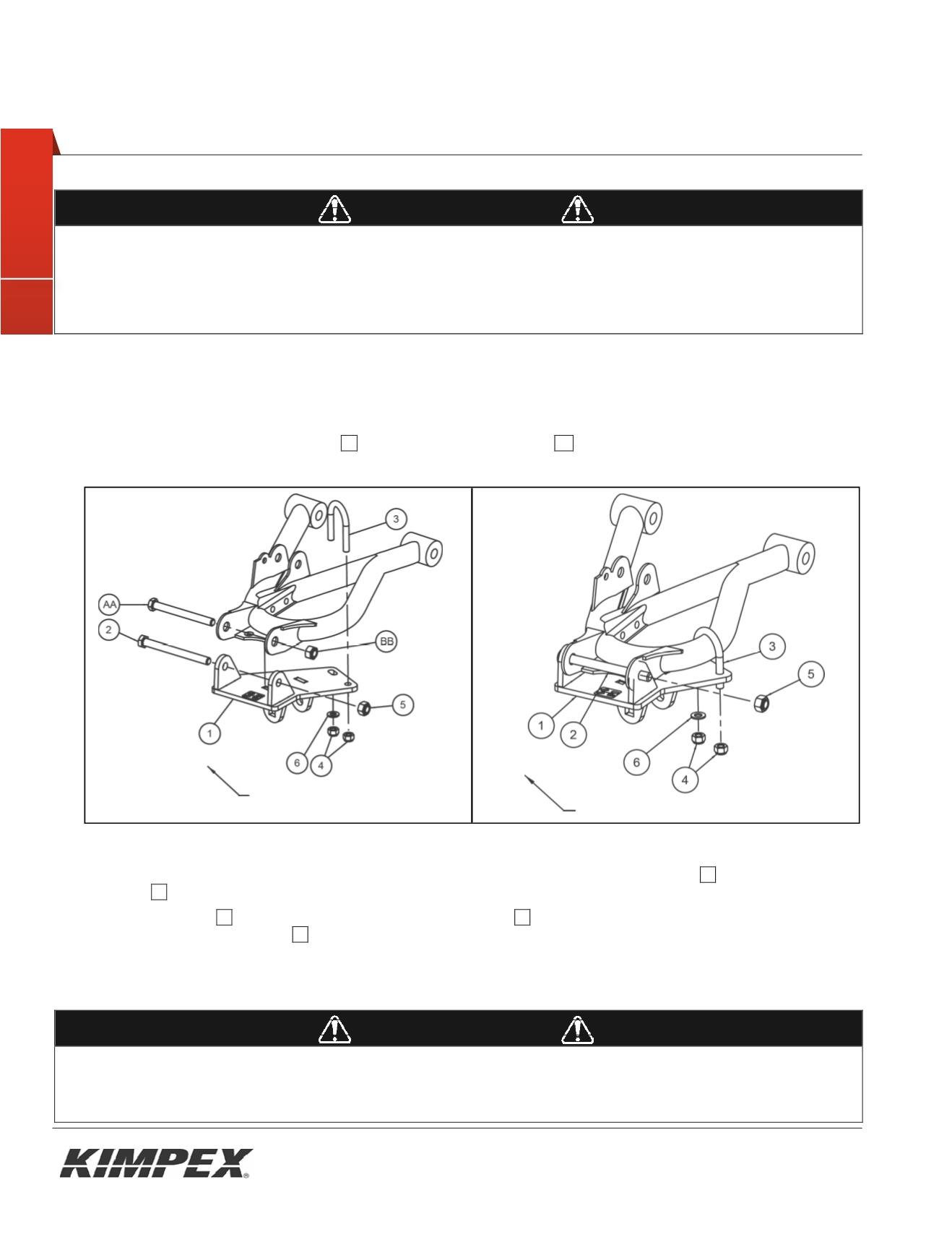

Fig. 4
FRONT OF THE ATV
FRONT OF THE ATV
A
B
