2/4
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375902
FOR COMMANDER TRACK SYSTEM AND SPORTSMAN 500/800 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810485
•
A-2810485-EN
2
FRONT A-ARM BRACKETS
REAR SUSPENSION BRACKETS
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
Front A-arm bracket
2810446-1-1000
1
1
Rear clamping plate
2810446-3-2000
2
2
Front clamping plate
2810446-1-2000
1
2
Rear-left suspension bracket
2810446-4-1000
1
3
M12-1.75 x 70 mm Cl.8.8
Carriage bolt
S2411-M1270-031
1
Rear-right suspension bracket
2810446-3-1000
1
4
M12-1.75 Cl.8.8 Nylon nut
S4186-M120P-021
1
3
M8-1.25x35mm Cl 8.8 bolt
S1111-08035-0D1
1
5
M12 Flat washer
S4612-M1200-0A1
1
4
M8-1.25x65mm Cl 8.8 bolt
S1111-08065-0D1
1
6
3/8"-24 chromed wheel nut
015403
8
5
M8-1.25 x 70 mm Cl.10.9 bolt
S1111-08070-0F1
4
6
M8-1.25 Cl.8.8 nylon nut
S4186-M080M-021
5
7
5/16" flat washer
S4612-00500-065
1
8
M8 flat washer
S4612-M080-0K1
2
9
3/8"-24 chromed wheel nut
015403
8

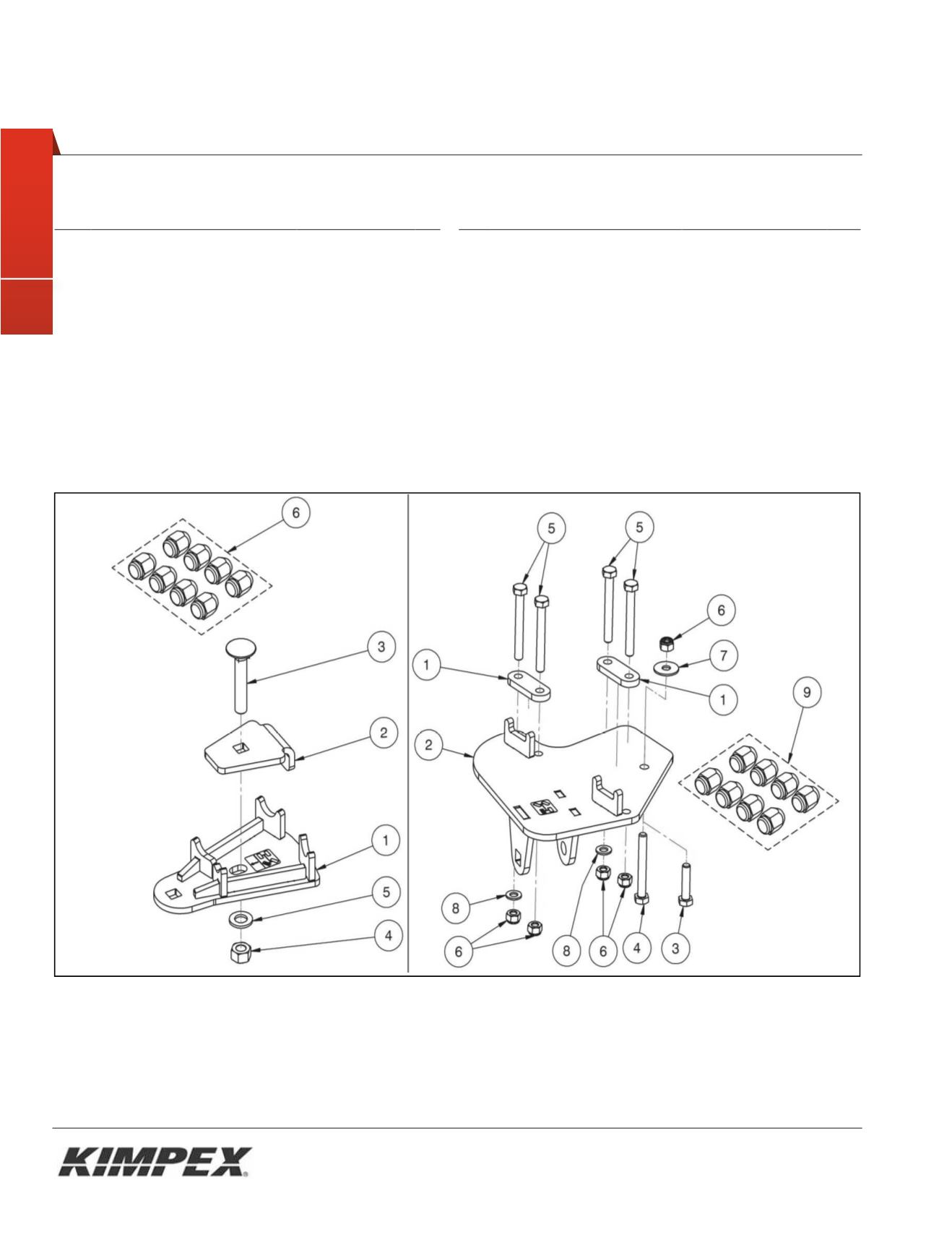

Fig. 1
