11/15
ATV
FRONT AND REAR A-ARM BRACKET KIT
FOR ST-90 TRACK KIT
FRONT
MOUNTING HOLE
FRONT ANTI-ROTATION ASSEMBLY
NOTE: Pay special attention to the orientation given to ball joint spacers (#1 and #2) during installation.
1.
Assemble the ball joint (
#18
) and the 1/2” nf thin nut (
#14
) to the front anti-rotation assembly (
#4
).
2.
Install the large ball joint spacer (
#1
) with the narrow part facing down onto the 1/2” nc X 3” carriage bolt (
#13
)
installed in
step 3
at the
“FRONT A-ARM BRACKET INSTALLATION”
section.
3.
Install the ball joint (
#18
) of the anti-rotation assembly (
#4
) onto the bolt (
#13
), below the large ball joint spacer (
#1
).
Install the short ball joint spacer (
#2
) with the narrow part facing up, below the anti-rotation assembly (
#4
).
4.
Tighten the assembly with the 1/2” nc nylock nut (
#16
). Torque to 65 ft-lbs.
WARNING: If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
5.
Rotate the anti-rotation assembly (
#4
) towards the center of the vehicle to prevent it from interfering with the installation
of the Track Kit.
NOTE: Refer to the Track Kit manual to complete the installation.
6.
Repeat
steps 1
to
5
for the opposite side.
IMPORTANT: Make sure to use the correct mounting hole on the anti-rotation (#4) when you assemble to the Track Kit.

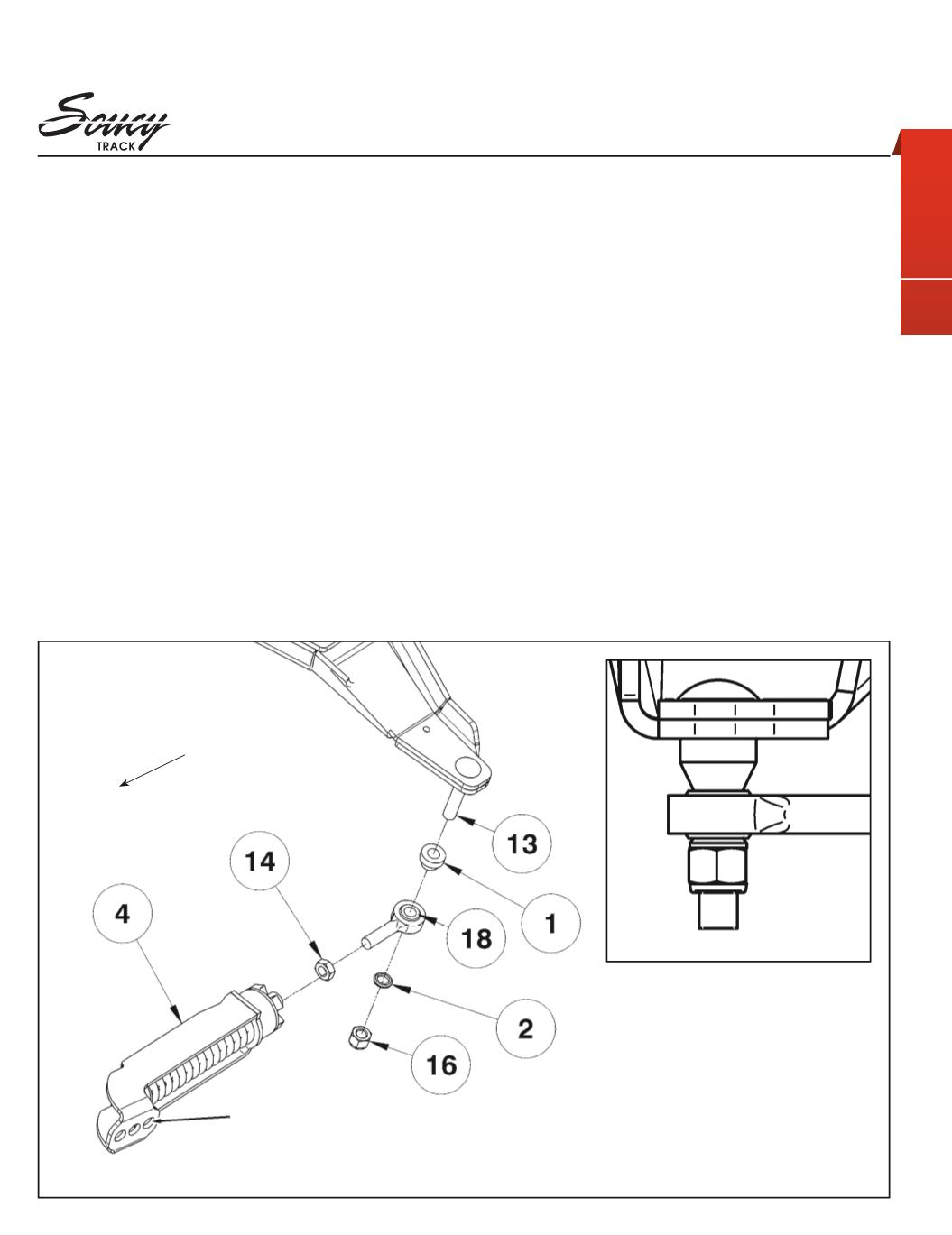

figure 4
LEFT FRONT VIEW
KIMPEX N°
374502
|
