15/15
ATV
FRONT AND REAR A-ARM BRACKET KIT
FOR ST-90 TRACK KIT

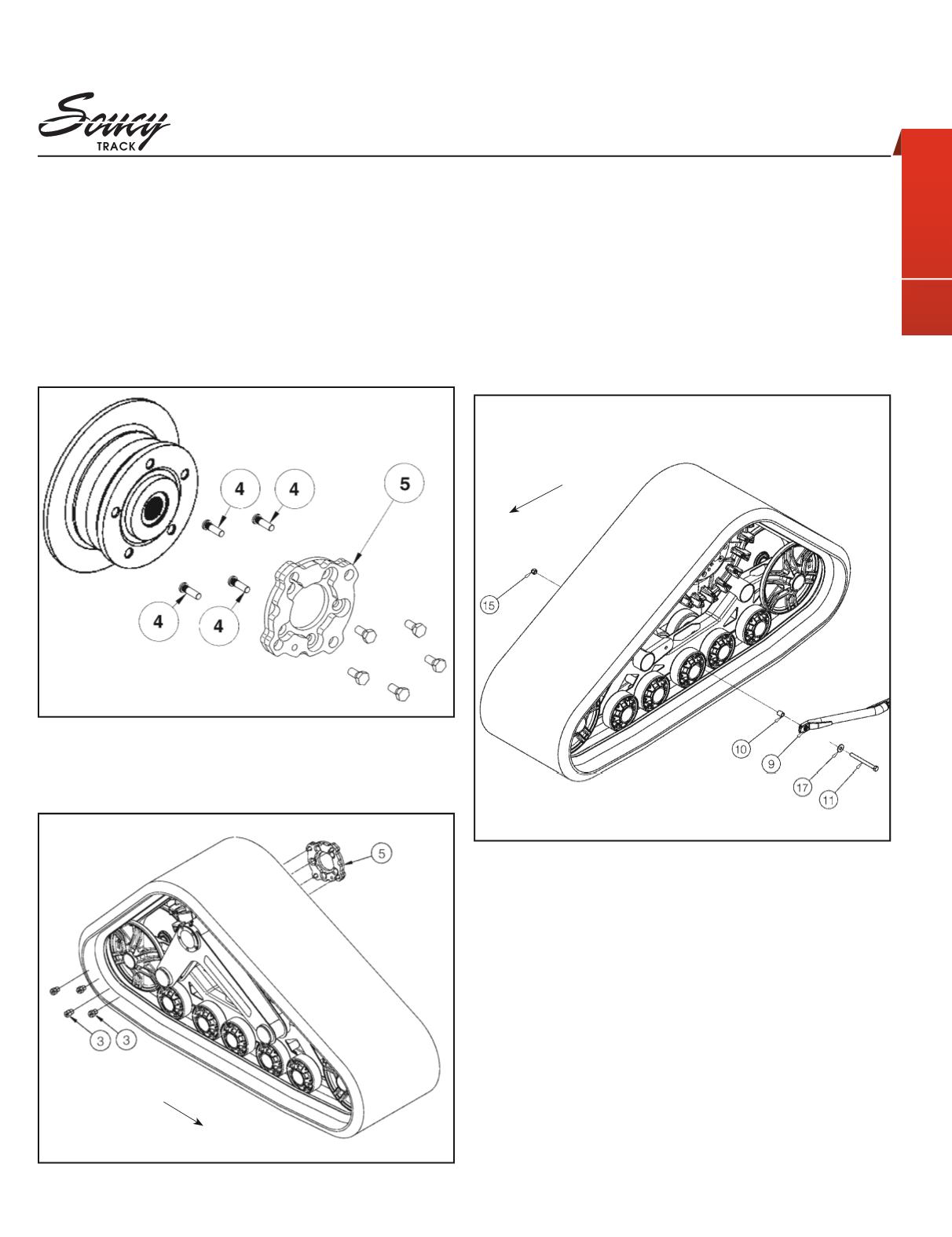

figure 12
REAR ANTI-ROTATION INSTALLATION
1.
Assemble the free extremity of the rear anti-rotation (
#9
)
to the hole made for this purpose in the frame of the
Track Kit using the 3/8” nc X 4-1/4” hex bolt (
#11
), the
3/8” dia flat washer (
#17
), the tightening sleeve (
#10
),
and the 3/8” nc nylock nut (
#15
).
Apply a tightening torque of 23 ft-lbs.
2.
Repeat
step 1
for the opposite side.
NOTE: Refer to the Track Kit manual to complete the
installation.
3.
Position the Track Kit onto the wheel spacer (
#5
) and
fasten using the (4) M12-1.25 T-nuts (
#3
).
Torque to 90 ft-lbs.
4.
Repeat
steps 1
to
3
for the opposite side.
figure 11
LEFT REAR
VIEW
LEFT REAR
VIEW
REAR
WHEEL SPACER INSTALLATION
1.
Insert the (4) M12-1.25 X 35 mm wheel studs (
#4
) onto
the wheel spacer (
#5
) as illustrated.
2.
Fasten the wheel spacer (
#5
) using the original wheel
nuts. Apply torque according with the manual of the
vehicle.
figure 10
REAR
KIMPEX N°
374502
|
