ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375904
FOR COMMANDER TRACK SYSTEM AND GRIZZLY 660 VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810488
•
A-2810488-EN
2

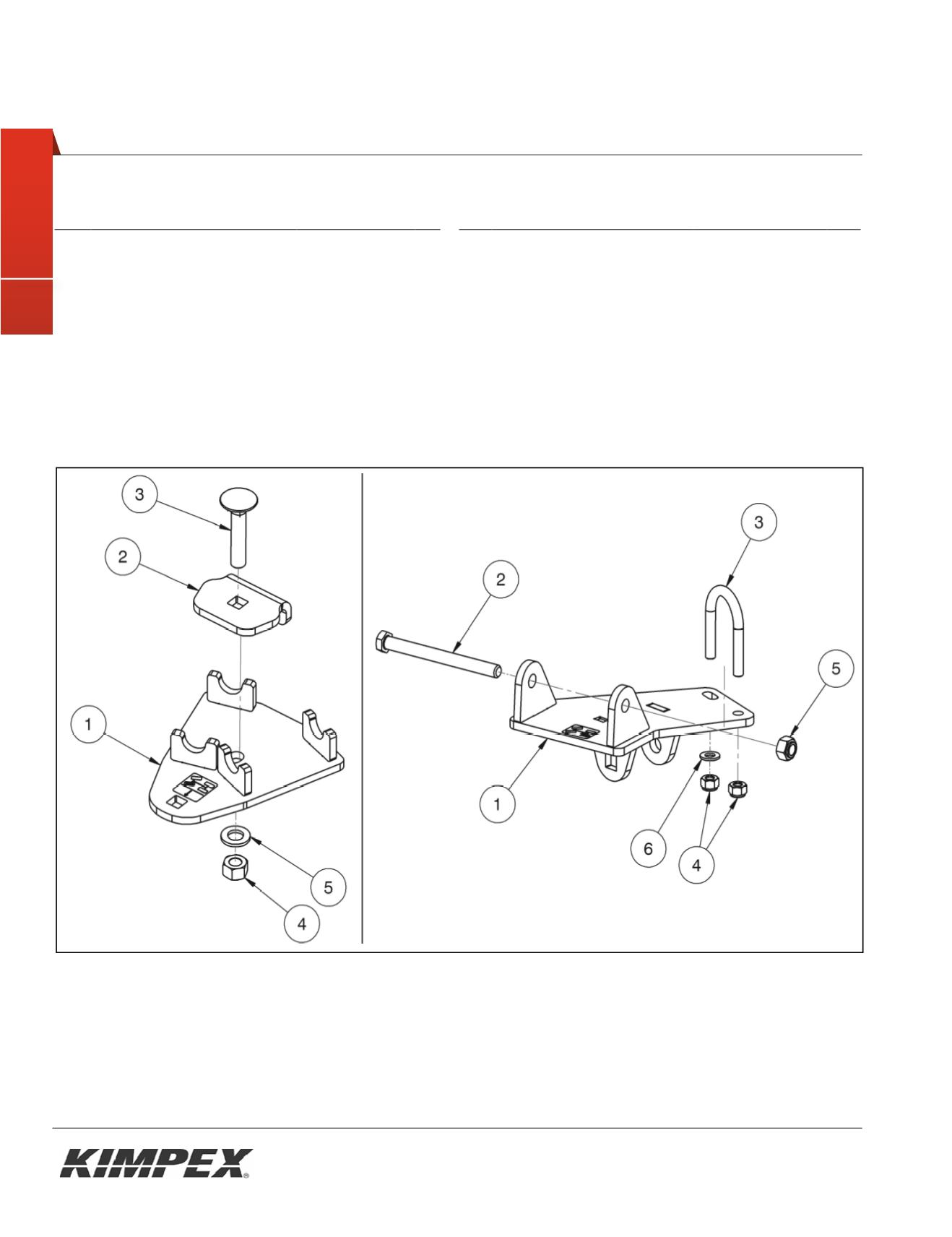

FRONT A-ARM BRACKETS
REAR SUSPENSION BRACKETS
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
Front A-arm bracket
2810447-1-1000
1
1
Rear-left suspension bracket
2810447-4-1000
1
2
Front clamping plate
2810447-1-2000
1
Rear-right suspension bracket
2810447-3-1000
1
3
M12-1.75 x 70 mm Cl.8.8
Carriage bolt
S2411-M1270-031
1
2
M10-1.25 x 110 mm Cl.8.8 bolt
S1111-100A1-0D1
1
4
M12-1.75 Cl.8.8 nylon nut
S4186-M120P-021
1
3
M8-1.25 x 34 mm Cl.8.8
U-bolt
S2213-J4461-002
1
5
M12 Flat washer
S4612-M1200-0A1
1
4
M8-1.25 Cl.8.8 Nylon nut
S4186-M080M-021
2
5
M10-1.5 Cl.8.8 Nylon nut
S4186-M100N-021
1
6
M8 flat washer
S4612-M080-0K1
1
Fig. 1
