14/15
ATV
FRONT AND REAR A-ARM BRACKET KIT
FOR ST-90 TRACK KIT
REAR ANTI-ROTATION ASSEMBLY
1.
Screw the 5/8” nc nut (
#14
) onto the threaded part of the anti-rotation tube (
#9
).
2.
Install the 50 mm O.D. X 17 mm I.D. X 3 mm flat washer (
#19
) and the bushing spacer tube (
#2
) onto the threaded part
of the anti-rotation tube (
#9
).
3.
Install the rubber bushing (
#1
) over the bushing spacer tube (
#2
.
4.
Slide the anti-rotation assembly into the hole on the bottom of the rear A-arm bracket (
#8
).
5.
Install the rubber bushing (
#1
), the 3/4” I.D. X 2” O.D. X 1/8” flat washer (
#18
), and the other rubber bushing (
#1
)
over the bushing spacer tube (
#2
).
6.
Install the flat washer (
#21
) and the 50 mm O.D. X 17 mm I.D. X 3 mm flat washer (
#19
) onto the threaded part of the
anti-rotation tube (
#9
).
7.
Screw the 5/8” nc nylock nut (
#16
) onto the threaded part of the anti-rotation tube (
#9
). Do not overtighten.
NOTE: Refer to the Track Kit manual to complete the installation.
8.
Reinstall the rear CV shield removed during
step 2
of the “
REAR A-ARM BRACKET INSTALLATION
” section using the
original hardware.
8.
Repeat
steps 1
to
8
for the opposite side.

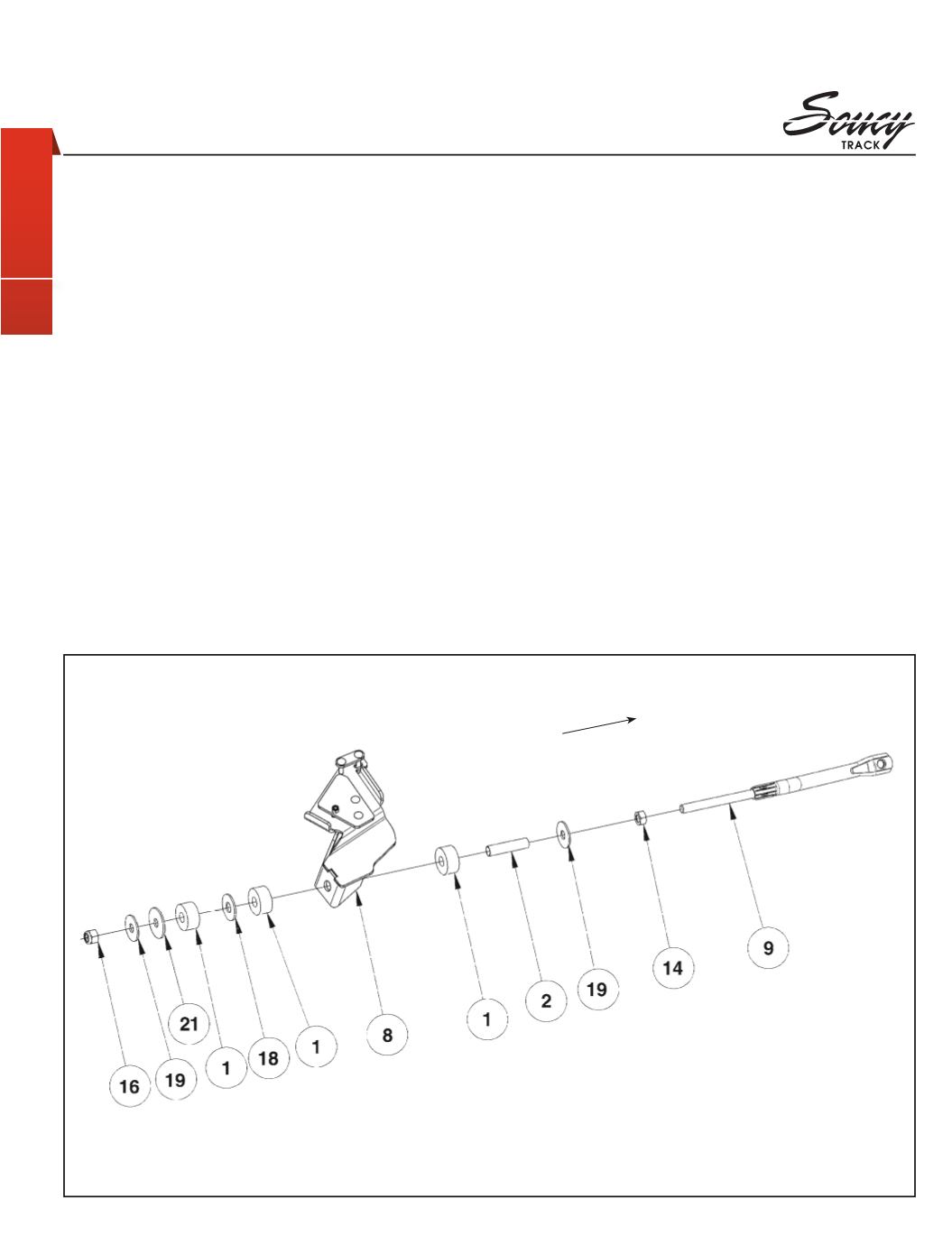

REAR
figure 9
LEFT REAR VIEW
|
KIMPEX N°
374502
