13/15
ATV
FRONT AND REAR A-ARM BRACKET KIT
FOR ST-90 TRACK KIT
REAR A-ARM BRACKET INSTALLATION
Prior to installation, turn off the engine, put in two-wheel
driving mode and the transmission in neutral, and block
the wheels.
WARNING
When the vehicle is raised, make sure that it is properly
secured/supported to prevent it from accidentally falling
during the installation of the A-arm brackets. If not
properly secured/supported, serious physical injury
could occur.
WARNING
1.
Raise the front of the vehicle off the ground and remove
the wheels.
2.
Remove the rear left CV shield. Do not discard. They will
be reinstalled later.
3.
Place the rear left A-arm bracket (
#8
) below the rear
lower A-arm so that the two parts fit snugly.
4.
Install the rear A-arm clamping plate (
#6
) above the
lower front A-arm and fasten it to the A-arm bracket (
#8
)
using the (2) 3/8” nc X 1-1/2” carriage bolts (
#12
), the
3/8” nc X 1-1/2” hex bolt (
#20
), the 3/8” dia flat
washer (
#17
), and the (3) 3/8” nc nylock nuts (
#15
).
Torque to 20 ft-lbs.
5.
Install the rear tightening support (
#7
) above the lower
front A-arm and fasten it to the A-arm bracket (
#8
) using
the (2) 3/8” nc X 2-1/2” carriage bolts (
#13
), the 3/8”
dia flat washer (
#17
), and the (2) 3/8” nc nylock nuts
(
#15
). Torque to 20 ft-lbs.
IMPORTANT: Tighten in a manner not to permanently
deform the assembly.
6.
Repeat
steps 2
to
5
for the opposite side.

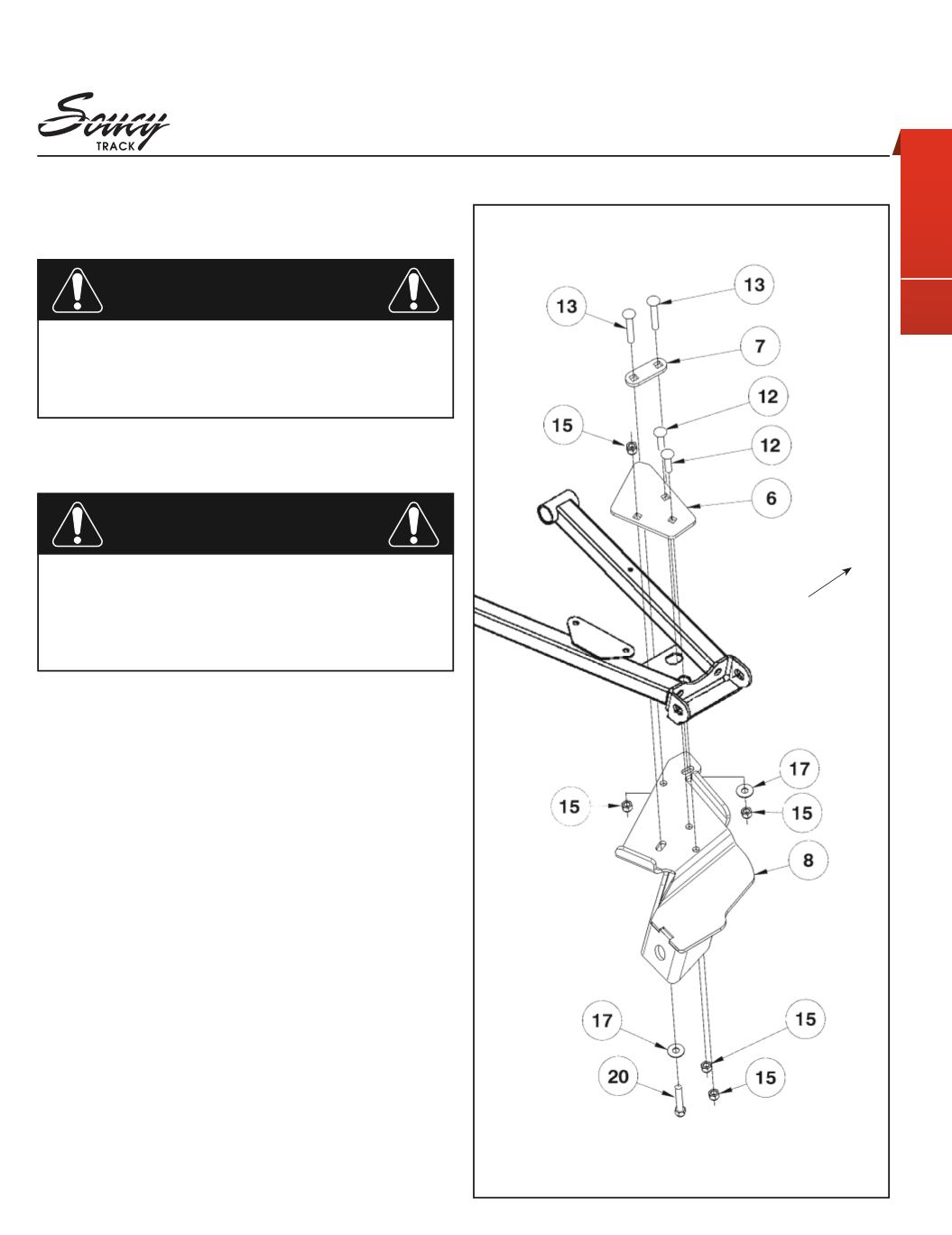

figure 8
REAR
LEFT REAR VIEW
KIMPEX N°
374502
|
