6/7
ATV
INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375911
FOR COMMANDER TRACK SYSTEM AND POLARIS SPORTSMAN 95-04 VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810496
•
A-2810496-EN
6
Rear suspension bracket installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
The installation requires that the vehicle is in two-wheel drive mode with the gearbox in neutral. After lifting the vehicle
and removing the wheels:
1)
Remove the universal joint guard. Keep the parts for later reinstallation.
2) Install the rear suspension bracket guide
03
onto the rear suspension bracket
01
using the two (2) carriage bolts
07
and the nylon nuts
10
; torque to 7 ft-lbs. See
figure 6.
3) Insert the two (2) carriage bolts
08
. Slide the spacer
05
onto the bolts
08
(one spacer on each bolt). See
figure 7.
4) Place the rear suspension bracket
01
below the rear lower arm of the vehicle and slide over the lower rear
suspension arm the two (2) flat washers
14
and screw the two (2) nylon nuts
12
(screw the first threads only). See
figure 7.
5) Insert the U-bolt
06
over the rear lower suspension arm into the intended mounting holes of the rear suspension
bracket
01
. Insert the two (2) flat washer
13
and screw the two (2) nylon nuts
11
.

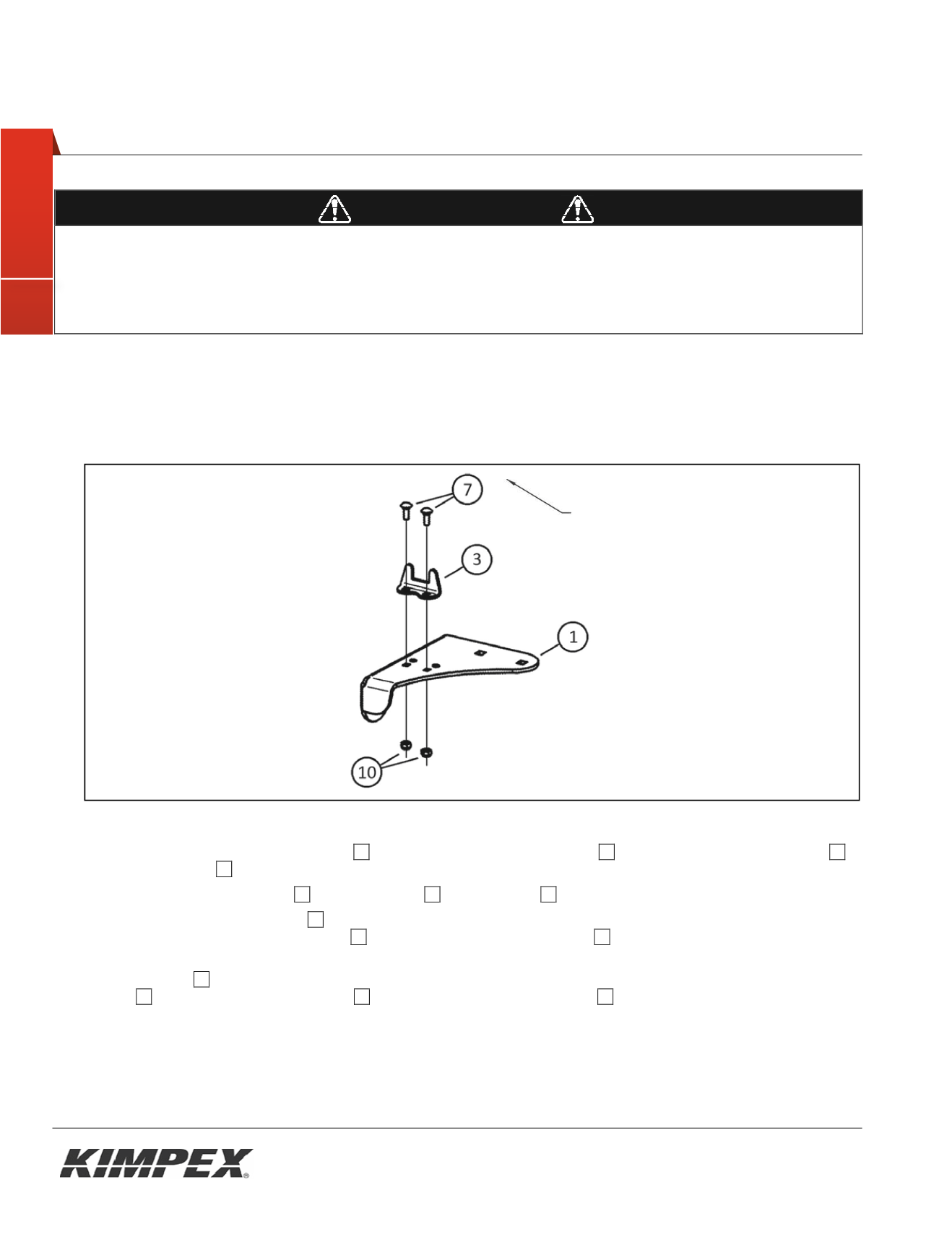

Fig. 6
AVANT VÉHICULE
Front of the ATV
