INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375911
FOR COMMANDER TRACK SYSTEM AND POLARIS SPORTSMAN 95-04 VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810496
•
A-2810496-EN
•
Lithographié au Canada / Litho’d in Canada
7
6) Tighten all the bolts. Torque the nylon nuts
11
to 15 ft-lbs and the nylon nuts
12
to 25 ft-lbs.
WARNING
1.
Do not overtorque the bolts. Some parts may be subject to deformation. If the bolts are too tight, some safety aspects could be
compromised.
2.
Be careful: an incorrectly positioned A-arm bracket could give some play, which could make driving riskier as well as lead to
breakage to the vehicle, a loss of control and serious injuries.
Mounting Holes on the Hub of the Track System
To install your track system, use the holes indicated in the following figure.
CAUTION
: Use the chrome wheel nuts 015696 supplied instead the original wheel nuts of the vehicle.

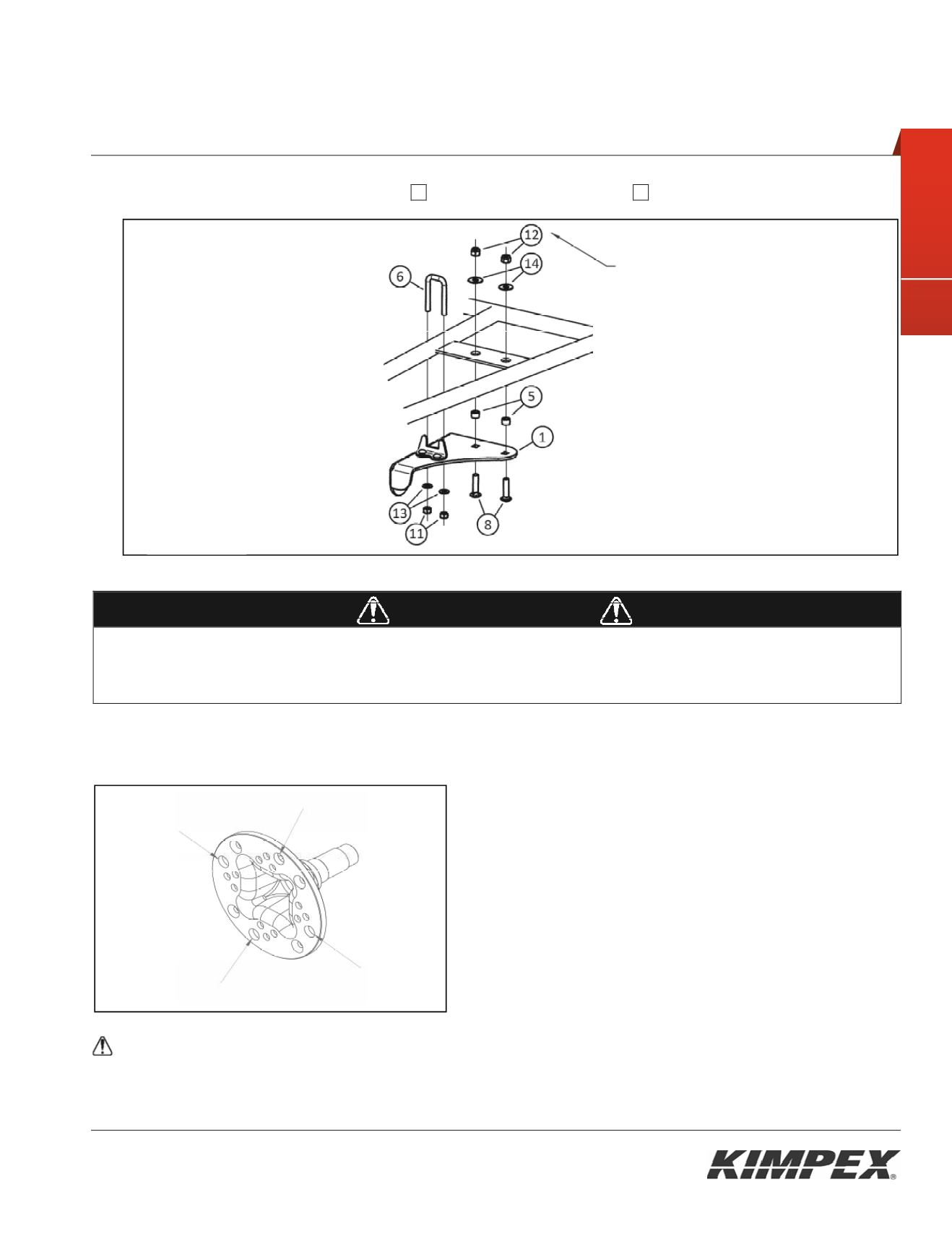

Fig. 8
Front of the ATV
Fig. 7
