INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
o
375915
FOR COMMANDER TRACK SYSTEM AND KAWASAKI BRUTE FORCE 650 RIGID VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810506
•
A-2810506-EN
2
FRONT A-ARM BRACKETS
REAR SUSPENSION BRACKETS
Réf. Description
N
o
d’article
Qté Réf. Description
N
o
d’article
Qté
1
3/16" SHIM
2810468-1-5000
4
1
60.3mm Axle spacer
2810185-4000
2
2
Front-right A-arm bracket
2810506-1-1000
1
2
Rear suspension bracket
2810506-3-1000
1
Front-left A-arm bracket
2810506-2-1000
1
3
M10-1.25 x 30mm Cl8.8 Hex bolt S1211-10030-0D1
8
3
Front clamping plate
2810506-1-2000
1
4
3/8"-16 x 3/4"DI "U"-bolt
S2215-E1236-002
2
4
M12-1.75 x 70mm Cl 8.8
Carriage bolt
S2411-M1270-031
1
5
3/8-16 Flanged hex nut
S4173-10600-052
4
5
M12 – 1.75 Nylon nut
S4186-M120P-021
1
6
M10-1.25 Chromed wheel nut
S4178-M010M-028
8

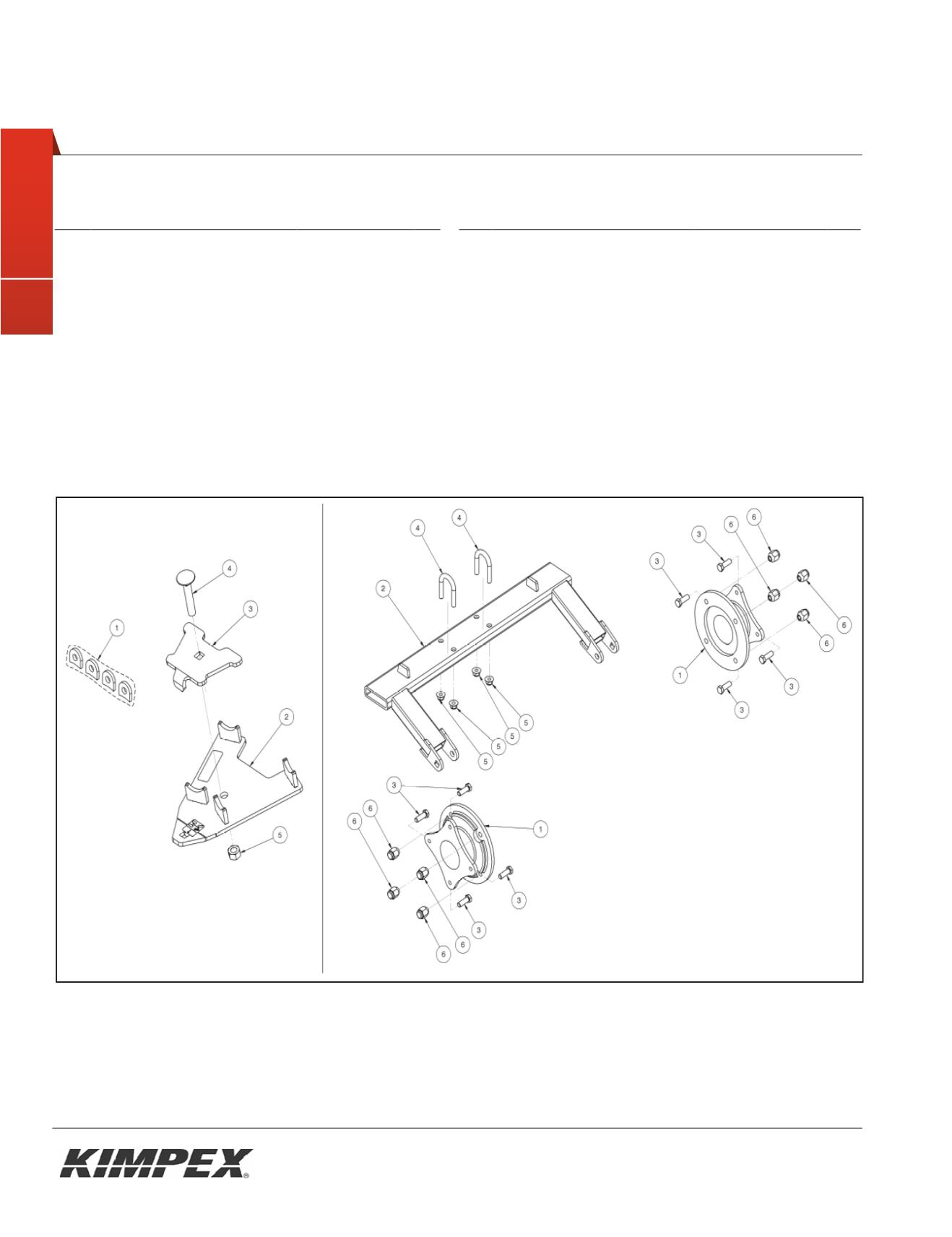

Fig. 1
