INSTALLATION MANUAL
FRONT AND REAR MOUNTING BRACKET KIT
KIMPEX N
°
375914
FOR COMMANDER TRACK SYSTEM AND HONDA FOREMAN 450ES VEHICLE
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810504
•
A-2810504-EN
4
Snowplow adapter installation
WARNING
1.
The vehicle must be
immobilized
and the
engine turned off
and cooled.
2.
Always wear
safety glasses
during installation, adjustment or repair.
3.
Please read and ensure you
have understood the warnings
and guidelines.
4.
Make sure the vehicle is
safely secured in place
by a system dedicated to this use (jack stands and hoist) and that it is supported or
fixed on locations that are not likely to break, bend or slip. A hydraulic jack is not safe; nor is a log. The vehicle must be not able to move.
L’installation nécessite que le véhicule soit en mode deux roues motrices avec la boîte de vitesse au neutre. Après avoir
soulevé le véhicule et retiré les roues :

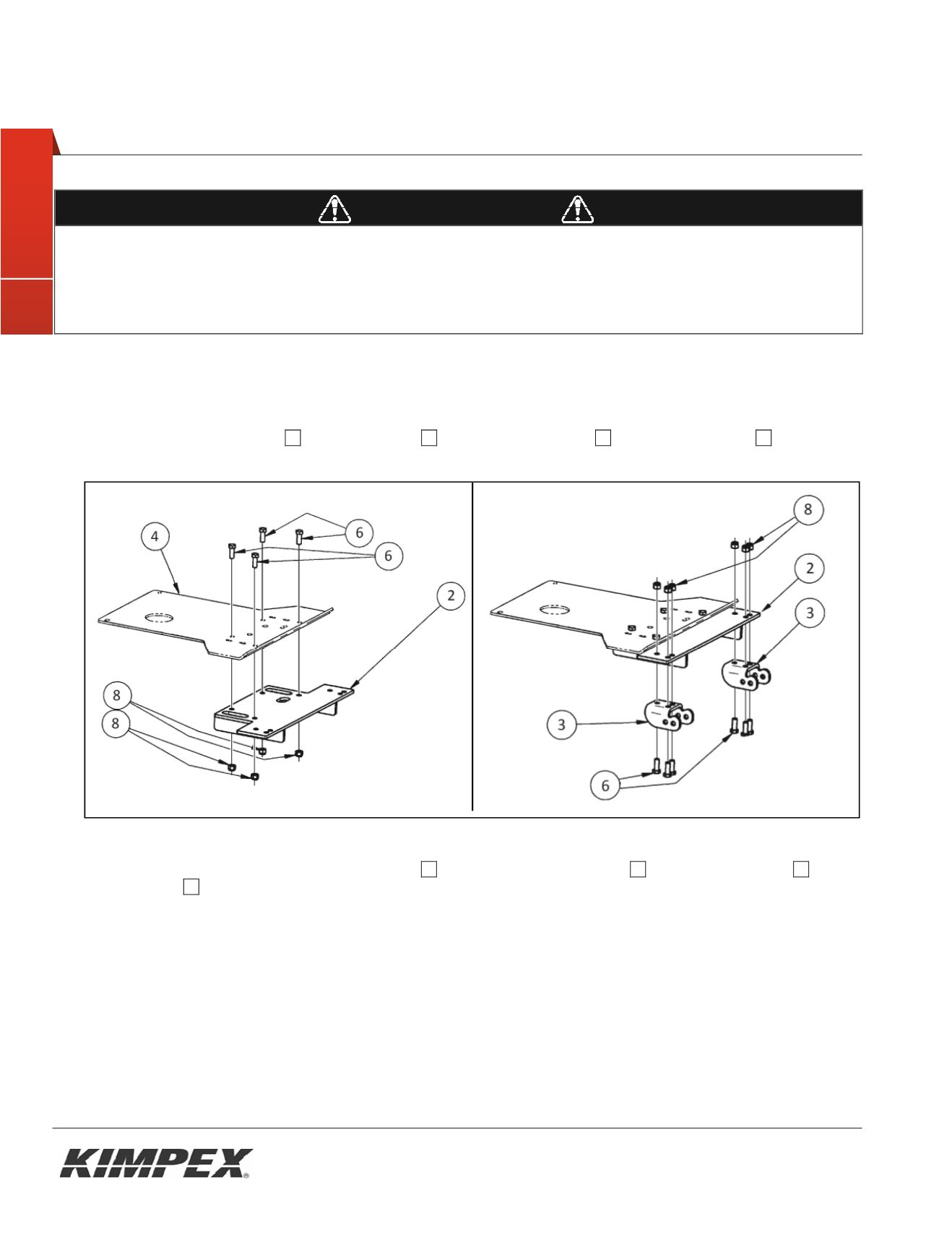

1) Fasten the subplate extension
02
onto the adapter
04
using the four (4) bolts
06
and the four (4) nuts
08
. See
figure
3A
2) Fasten the two (2) rear anti-rotation arms supports
03
onto the subplate extension
02
using the six (6) bolts
06
and
the six (6) nuts
08
. See
figure 3B.
3) Tighten all bolts in place.
A
Fig. 3
B
