7/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS KIT
KIMPEX N
°
375920
FOR COMMANDER TREX TRACK KIT AND A - ARM SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-01-32
•
A-2810479-01-32-EN
•
Lithographié au Canada / Litho’d in Canada
7

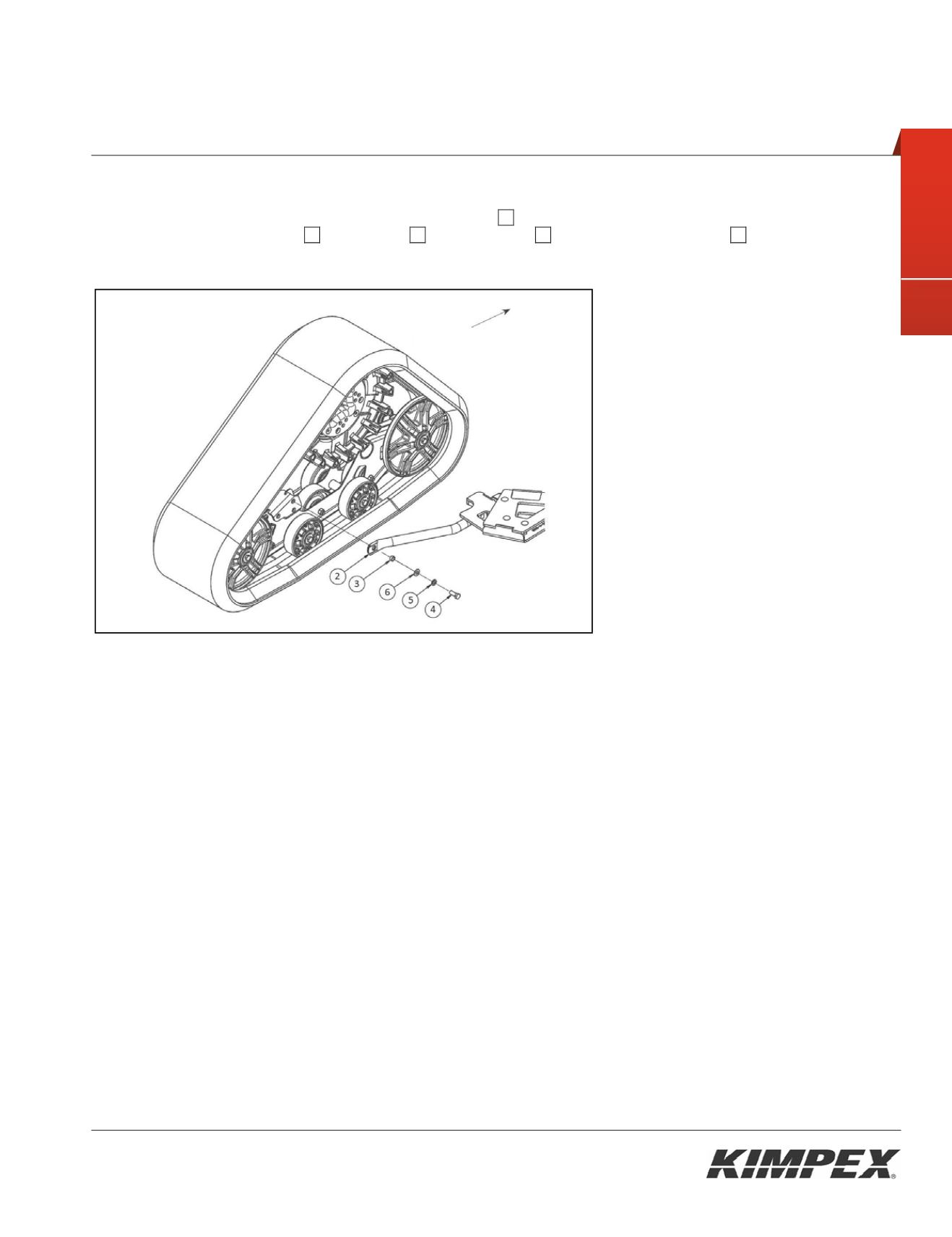

Commander TREX rear anti-rotation arm installation
1) Assemble the free extremity of the rear anti-rotation arm
02
to the hole made for this purpose in the frame of the
track kit using the hex. bolt
04
, the lock nut
05
, the flat washer
06
and the tightening spacer
03
. Torque to 23 ft-lbs.
(See
figure 5
)
2) Repeat
step 1
for the opposite side.
Front of the ATV
Fig. 5
