6/7
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375921
FOR COMMANDER WTX TRACK SYSTEM. A-ARM SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810479-01-33
•
A-2810479-01-33-EN
6
Installation of the anti-rotation arm on the rear bracket
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Screw the nut
A
onto the threaded part of the anti-rotation tube
02
.
2) Install the flat washer
B
and the steel slider sleeve
C
onto the threaded part of the anti-rotation tube
02
.
3) Install the rubber bushing
D
over the steel slider sleeve C
4) Slide the anti-rotation assembly into the hole on the bottom of the rear A-arm bracket (see
figure 4
)
5) Install the rubber bushing
D
, the flat washer
E
and the other rubber bushing
D
over the steel slider sleeve
C
6) Install the other flat washer
B
onto the threaded of the anti-rotation tube
02
7) Screw the nut
F
onto the threaded part of the anti-rotation tube
02
8) Repeat
steps 1
to
7
for the opposite side.

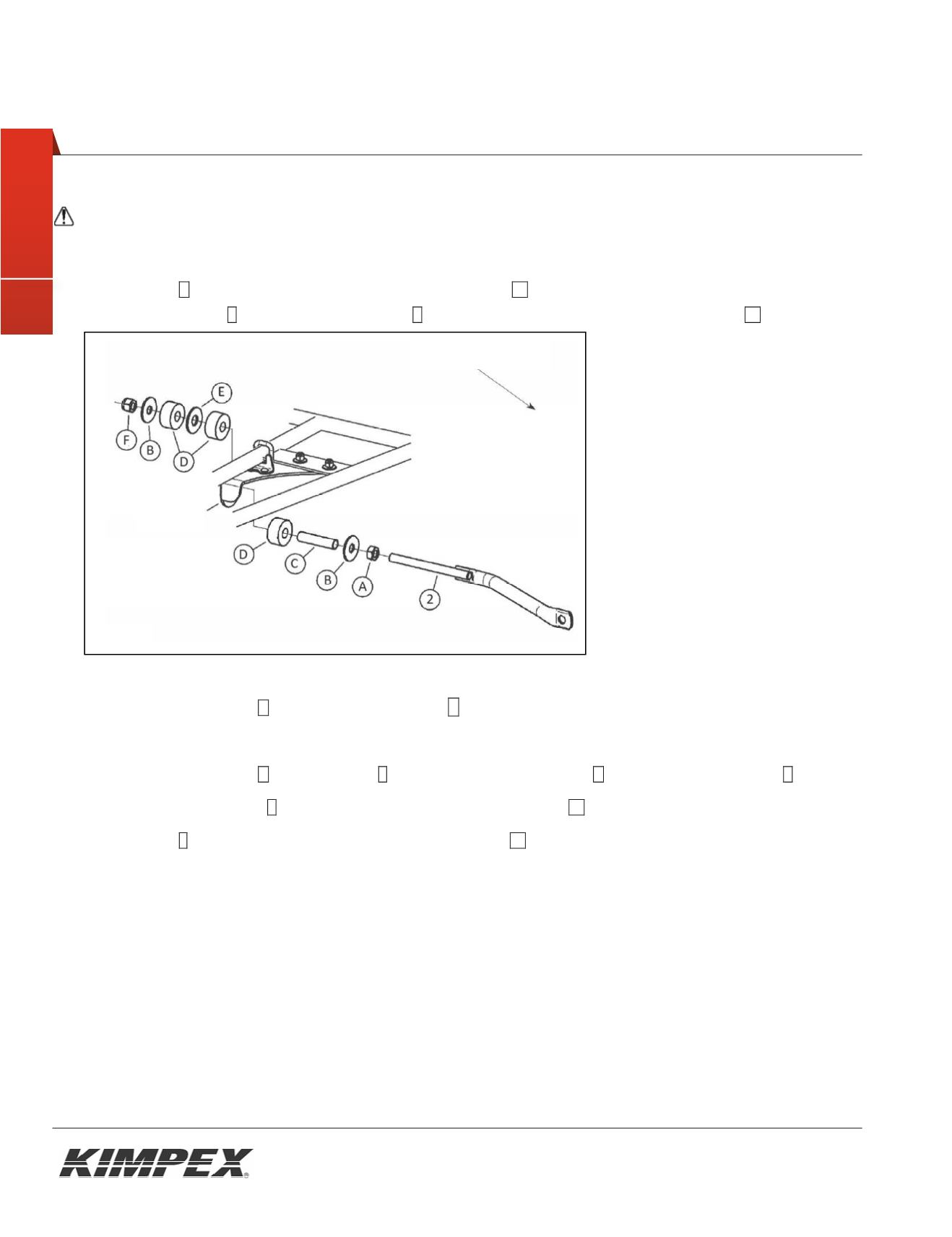

Fig. 4
Rear of the ATV
Bracket
