7/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375929
FOR XTR COMMANDER TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-11
•
A-2810479-00-11-EN
•
Lithographié au Canada / Litho’d in Canada
7

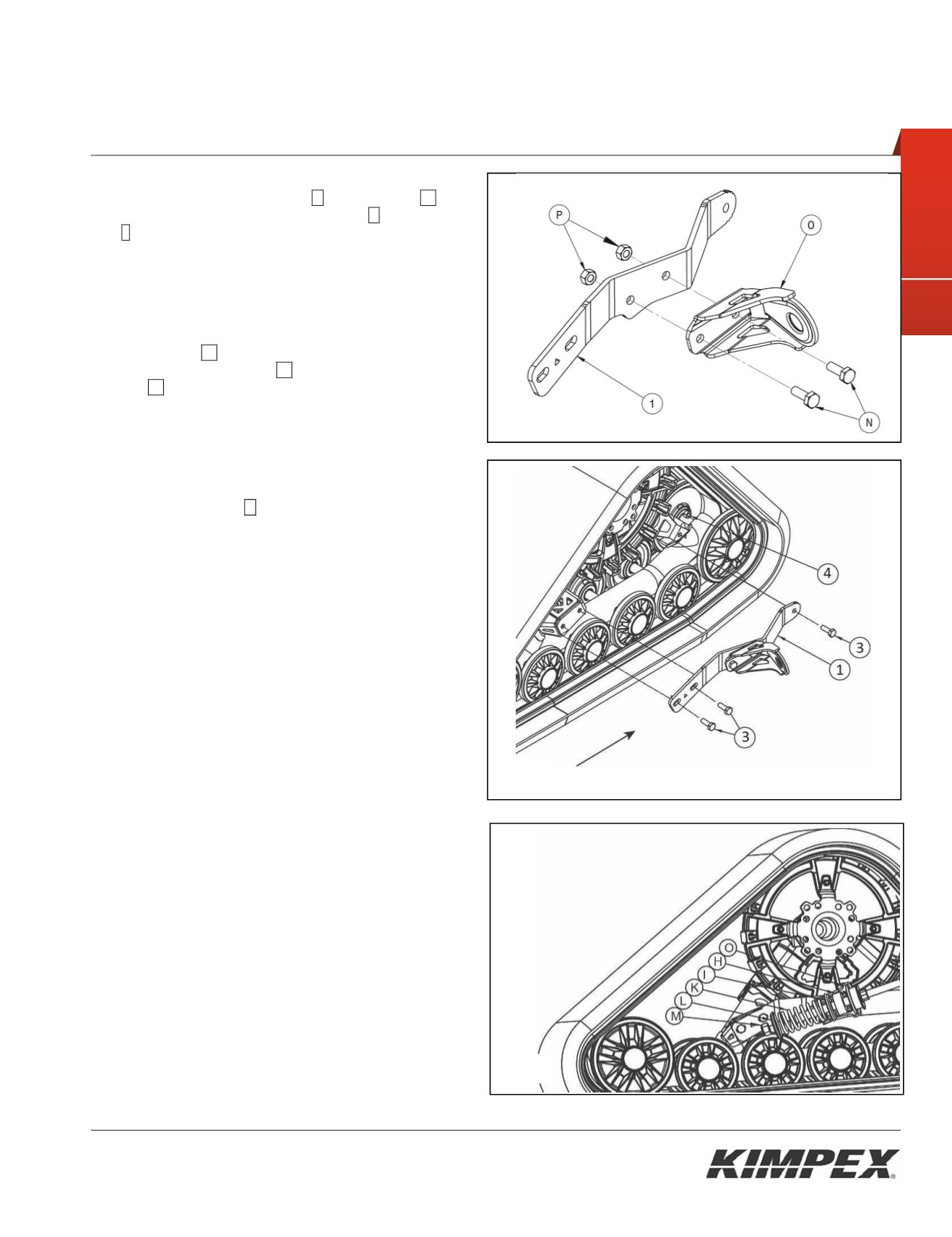

4) Install the mounting bracket
O
onto the spar
01
using two (2) M10-1.5 x 30 mm bolts
N
and the nuts
P
removed in the
step 3
. Torque to 46 N-m (34 ft-
lbs).
See
figure 7.
5) Fix the spar
01
to the track system using three (3)
M10-1.5 x 30 mm bolts
03
and the M10-1.5 nylon
nut
04
. Torque to 46 N-m (34 ft-lbs).
See
figure 8.
6) Insert the anti-rotation arm into the hole of the
mounting bracket
O
already installed.
7) Replace the components removed in
step 1
in the
same order illustrated in
figure 9
and
figure 5.
Fig. 7
Front of the ATV
Fig. 8
Fig. 9
