3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375929
FOR XTR COMMANDER TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-11
•
A-2810479-00-11-EN
•
Lithographié au Canada / Litho’d in Canada
3

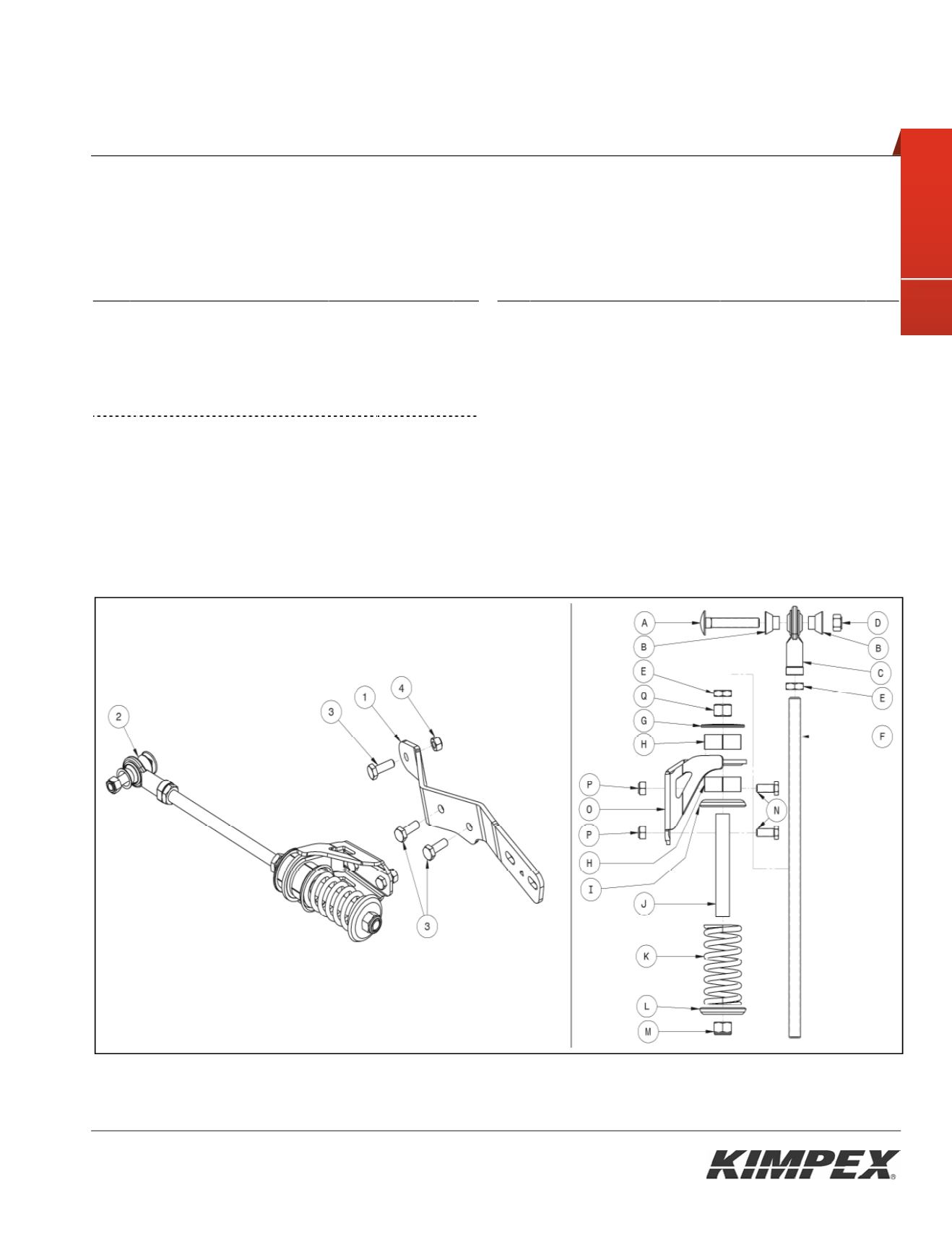

REAR ANTI-ROTATION ARM
(7810479-00-11)
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
Right spar
2810435-5-2000
1
G
Conical washer
7990163-1-8000
1
Left spar
2810435-6-2000
1
H
Rubber bushing
7990163-3-2000
2
2
Rear anti-rotation arm
7990163-3A
1
I
Spring washer
7990163-1-9000
1
3
M10-1.5 x 30mm Cl. 8.8 hex. bolt S1111-10030-0D1
3
J
Steel slider sleeve
7990163-1-3000
1
4
M10-1.5 Cl. 8 Nylon nut
S4186-M100N-021
1
K
Spring
7990163-1-4000
1
A
M12-1.75 x 75 mm Cl. 8.8
Carriage bolt
S2411-M1275-031
1
L
Small center spring washer
7990613-1-2000
1
B
Rear rod-end spacer
7990163-1-6000
2
M
M16-2.0 Cl. 8 Nylon nut
S4186-M160Q-051
1
C
M16-2.0 Rod-end
7S9141-M0016-002
1
N
M16-2.0 Cl. 8.8 nut
S411-M160Q-021
1
D
M12-1.75 Cl. 8.8 Nylon nut
S4186-M120P-021
1
O
Mounting bracket
7990163-3-1000
1
E
M16-2.0 Cl. 8 hex nut (jam nut)
S4113-M0160-021
2
P
M10-1.5 Cl. 8.8 Nylon nut
S4186-M100N-021
2
F
M16-2.0 x 430 mm Cl. 10.9
Threaded stud
7810433-3-1000
1
Q
M16-2.0 Cl. 8.8 Nut
S4111_M160Q_021
1
Fig. 2
