3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375928
FOR COMMANDER WTX TRACK SYSTEM. RIGID VEHICLES SUSPENSION
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-13
•
A-2810479-00-13-EN
•
Lithographié au Canada / Litho’d in Canada
3

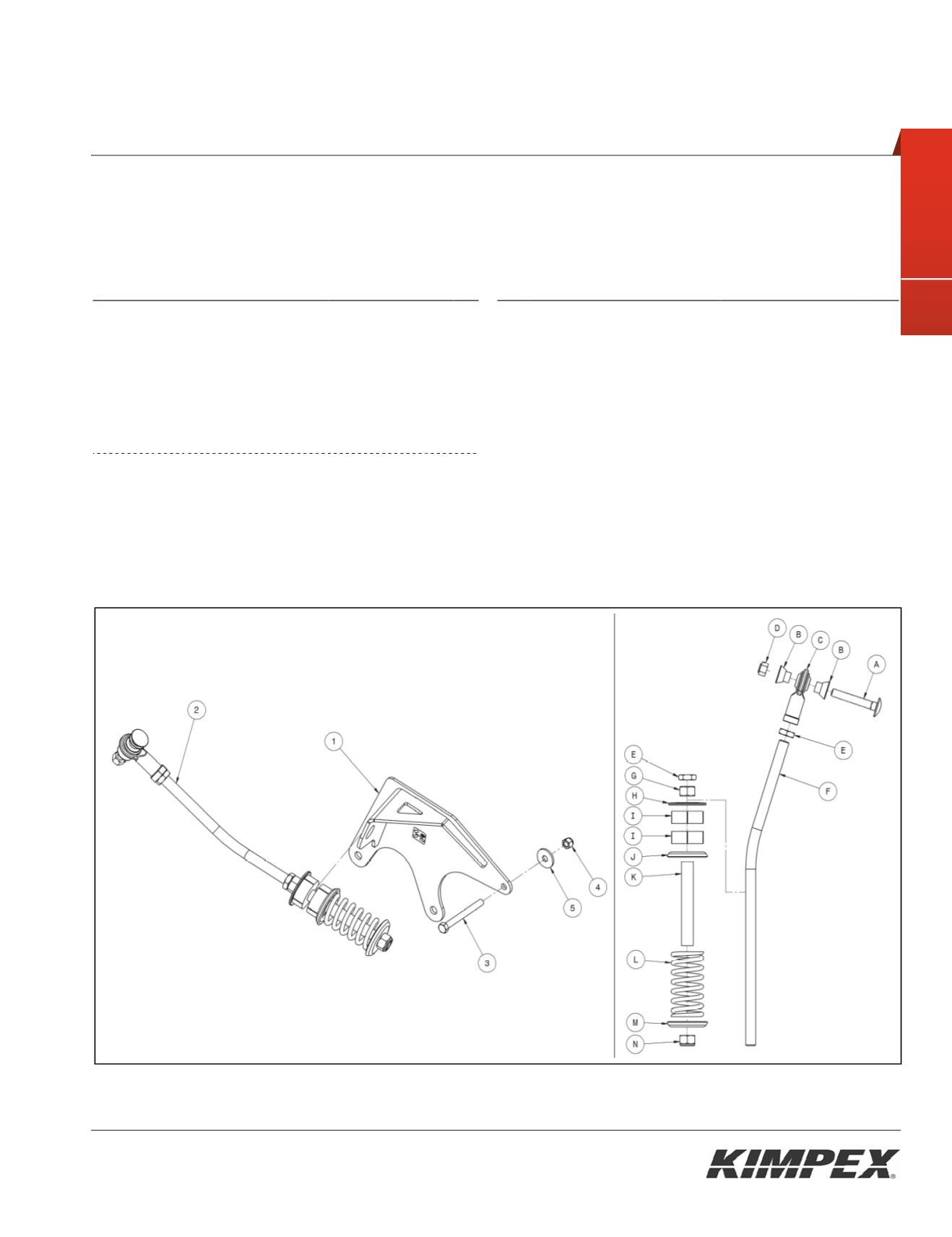

REAR ANTI-ROTATION ARM
(2810479-00-13)
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
Rear-right anti-rot. arm bracket
2810479-3-300-1000 1
E
M16-2.0 Cl. 8 hex nut (jam nut) S4113-M0160-021
2
Rear-left anti-rot. arm bracket
2810479-4-300-1000 1
F
M16-2.0 x 450 mm Cl. 10.9
Bend threaded stud
7810479-3-2000
1
2
450mm anti-rotation arm bended 7810479-BAR-x450
1
G
Conical flat washer
7990163-1-8000
1
3
3/8-16 x 3-3/4" Cl. 5 hex bolt
S1711-00630-052
1
H
Rubber bushing
7990163-3-2000
2
4
3/8-16 Nylon nut
S4186-10600-022
1
I
Sprign washer
7990163-1-9000
1
5
1-1/4" DE x 3/8" DI x 0.12"
fender washer
S4614-00600-082
1
J
Steel slider sleeve
7990163-1-3000
1
A
M12-1.75 x 75 mm Cl. 8.8
Carriage bolt
S2411-M1275-031
1
K
Spring
7990163-1-4000
1
B
Rear ball joint spacer
7990163-1-6000
2
L
Small center spring washer
7990613-1-2000
1
C
M16-2.0 Rod-end
7S9141-M0016-002
1
M
M16-2.0 Cl. 8 Nylon nut
S4186-M160Q-051
1
D
M12-1.75 Cl. 8.8 Nylon nut
S4186-M120P-021
1
N
M16-2.0 Cl. 8.8 Nut
S411-M160Q-021
1
Fig. 2
