7/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375927
FOR COMMANDER TREX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-12
•
A-2810479-00-12-EN
•
Lithographié au Canada / Litho’d in Canada
7
b. Assemble the rear part of the rear-right anti-rotation arm bracket
02
itno the two (2) mounting holes made for
this purpose in the frame of the track kit using two (2) hex bolts
04
and the two (2) lock washers
07
(finger
tighten at this time) See
figure 5B.
c.
Position the clamping round plate
01
where the plastic cap was removed in
step a
and fasten the front part of
the rea-right anti-rotation arm bracket
02
in to the frame using the hex bolt
05
and the nylon nut
06
(see figure
5B).
d. Torque to 20 ft-lbs the three (3) hex bolts and replaced the plastic cap
38
removed in
step a.
e. Repeat
steps a
to
d
for the opposite side.
3) Insert the anti-rotation arm into the hole of the rear anti-rotation arm bracket
02
, already installed. (See
figure 5B
)
4) Replace the components removed in
step 1
in the same order illustrated in
figure 6
and
figure 4
.

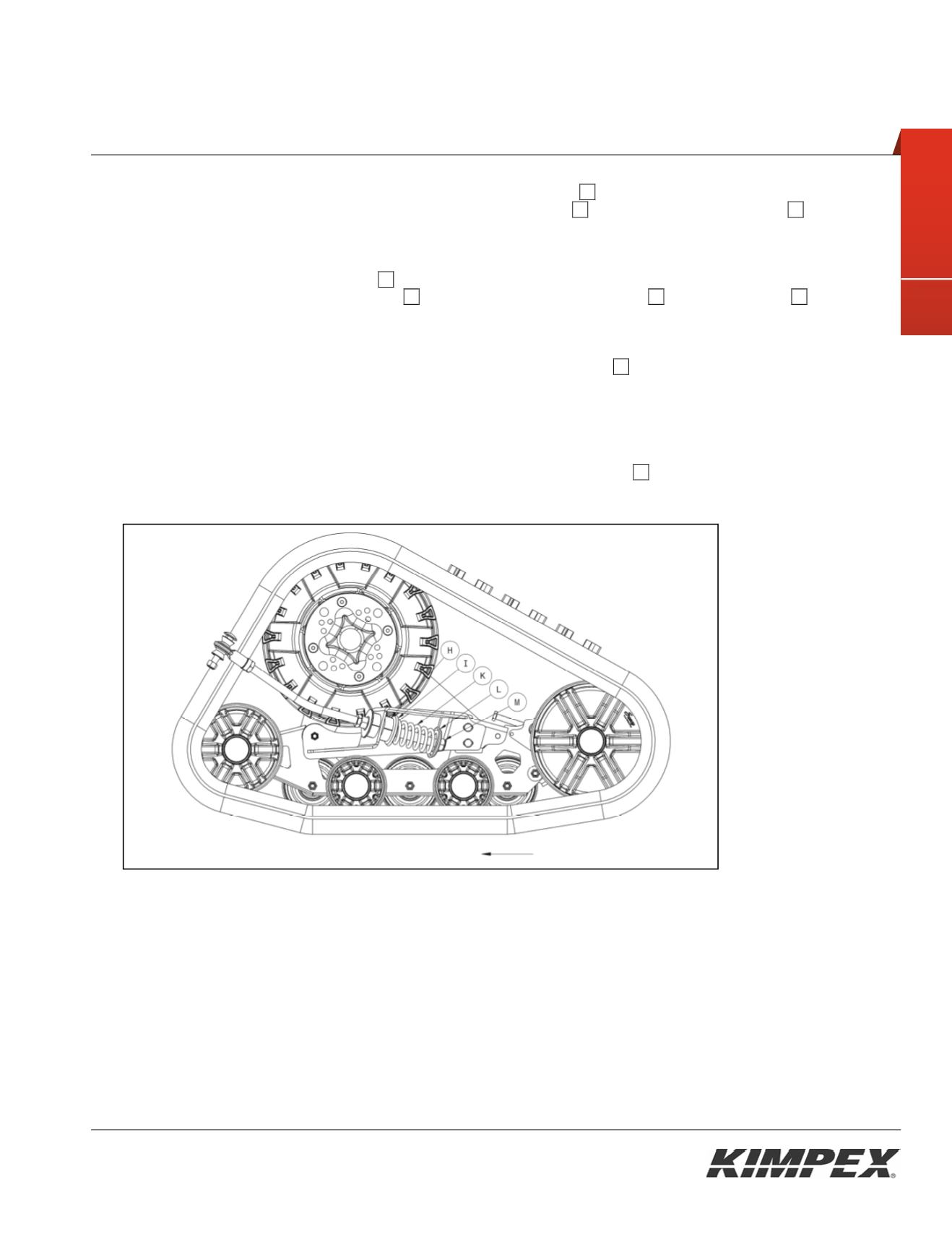

Fig. 6
Front of the ATV
