Installation of the anti-rotation arm on the rear frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) From the anti-rotation arm, remove the nylon nut
F
, the first flat washer
B
, the first rubber bushing
D
, the second flat
washer
E
and the second rubber bushing
D
. See

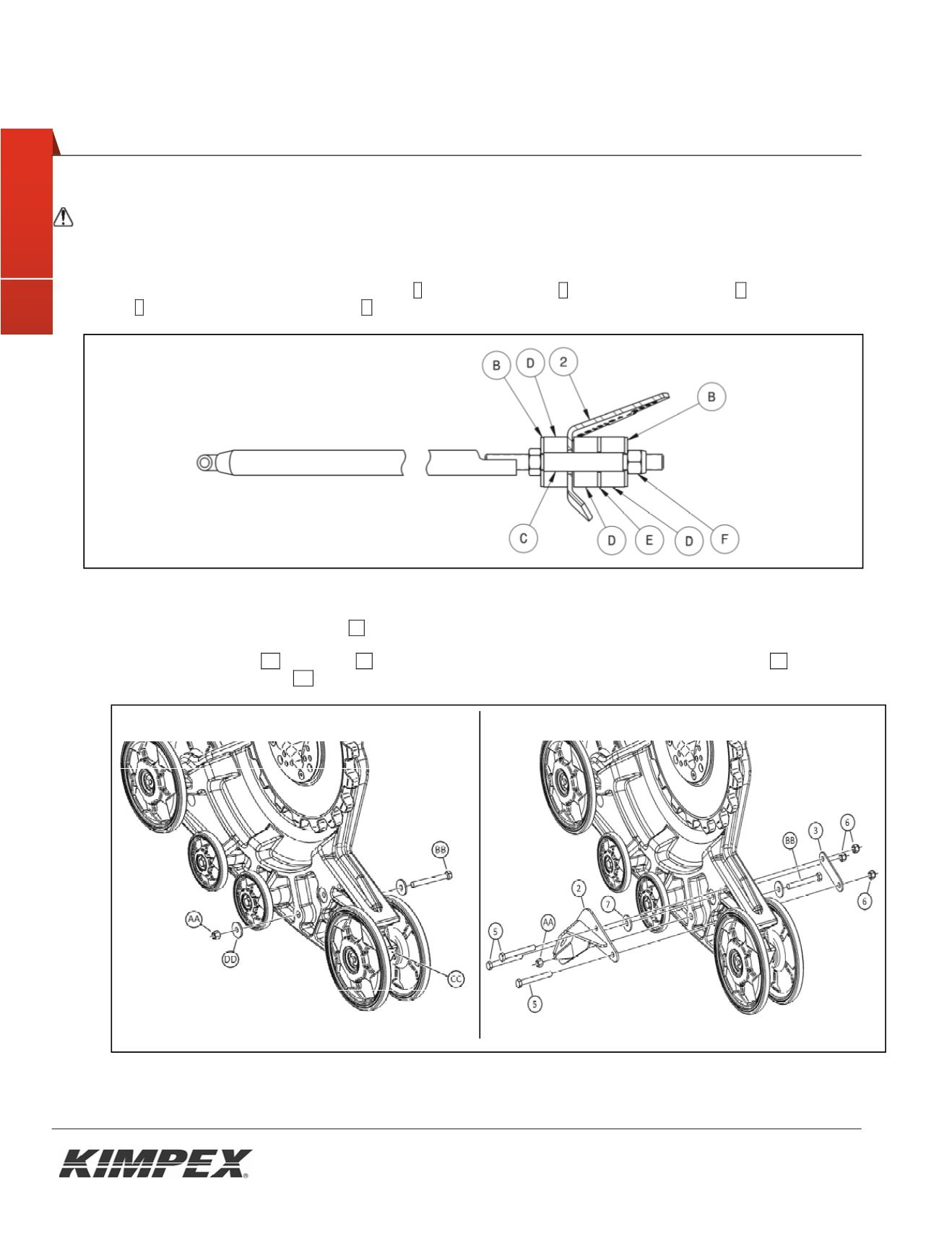

figure 4.
2) Install the rear anti-rotation arm bracket
02
to the track system as follows:
a. Remove the nylon nut
AA
of the bolt
BB
retaining the wheel located nearest the slide of adjustment
CC
. Remove
and discard the flat washer
DD
. (see
figure 5A
)
B
A
