ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375925
FOR COMMANDER TREX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-32
•
A-2810479-00-32-EN
•
Lithographié au Canada / Litho’d in Canada
7
b. Repeat for the opposite side

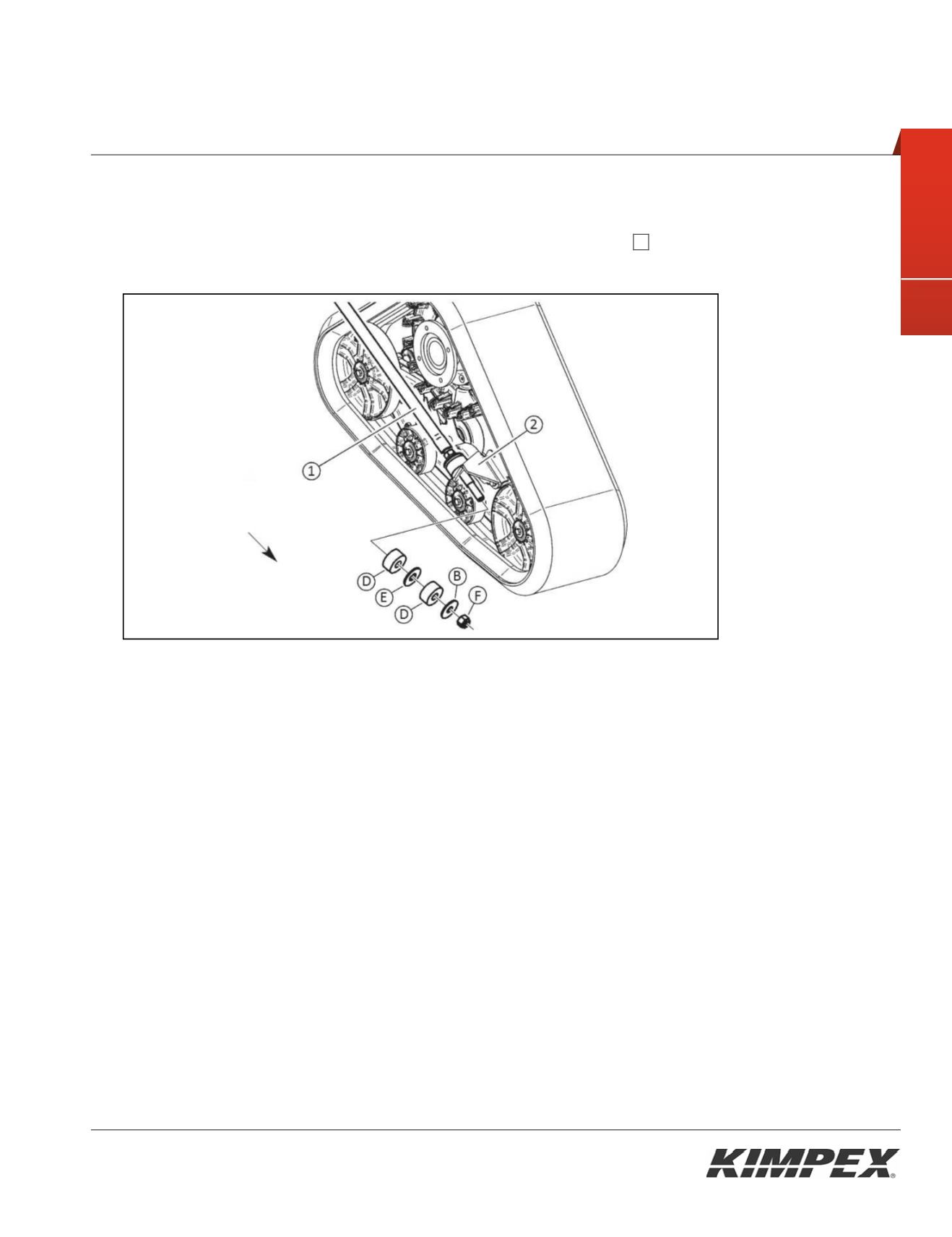

3) Insert the anti-rotation arm into the hole of the rear anti-rotation arm bracket
02
, already installed. (see
figure 5
)
4) Replace the components removed in
step 1
in the same order illustrated in
figure 6
and
figure 4
.
Fig. 6
Front of
The ATV
