3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375925
FOR COMMANDER TREX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-32
•
A-2810479-00-32-EN
•
Lithographié au Canada / Litho’d in Canada
3

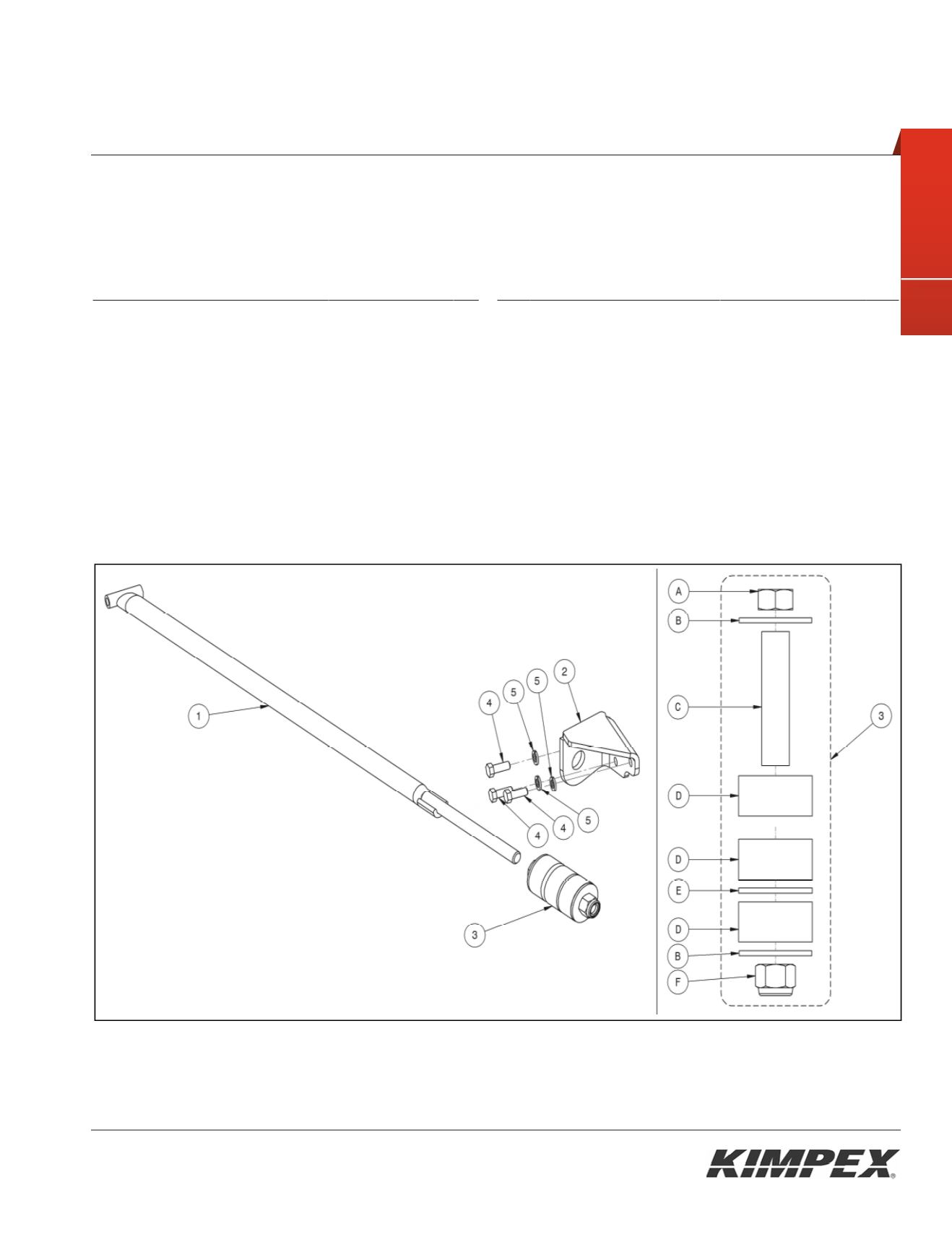

REAR ANTI-ROTATION ARM
(2810479-00-32)
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
760mm anti-rotation arm
2810179-5000
1
A
5/8-11 Cl. 5 hex bolt
S4111-11000-052
1
2
Right anti-rot. arm bracket
2810255-2000
1
B
50mm DE x 17mm DI x 3mm
Flat washer
S4612-M1600-01W
2
Left anti-rot. arm bracket
2810255-3000
1
C
Steel slider sleeve
2510039-3-20-2000
1
3
Hardware rear set
7810182-1
1
D
Rubber bushing
2510039-1-30-6000
3
4
3/8-16 x 1" Cl. 5 hex bolt
S1711-00608-052
3
E
51mm DE x 19mm DI x 3mm
Flat washer
S4612-01200-022
1
5
3/8 lock washer
S4511-00600-002
3
F
5/8-11 Nylon nut
S4186-11000-022
1
Fig. 2
