INSTALLATION
Installation of the anti-rotation arm on the front frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Assemble the free extremity of the front anti-rotation arm
C
to the hole made for this purpose in the plastic frame of
the track kit using the hex bolt
F
, the flat washer
K
, the tightening spacer
E
, the neoprene washer
D
, the fender
washers
L
and a nylon nut
I
. See
figure 3.
Torque at 23 ft-lbs
WARNING: Three (3) holes are available on the anti-rotation fixation plate; take the one which will make so that the
track kit is correctly in contact with the ground.
2) Repeat
step 1
for the opposite side.

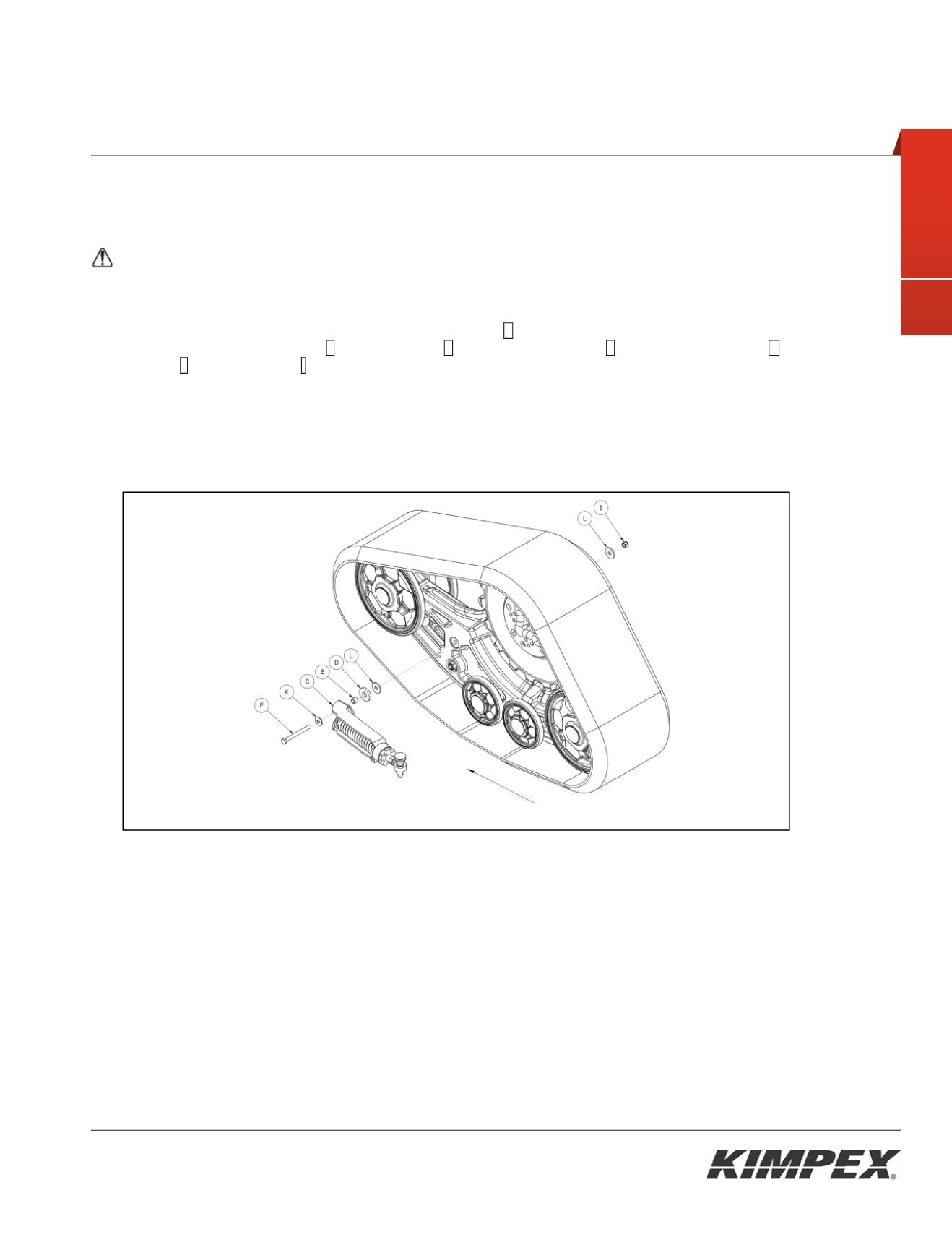

Fig. 3
Front of the ATV
