6/7
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375927
FOR COMMANDER TREX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810479-00-12
•
A-2810479-00-12-EN
6
Installation of the anti-rotation arm on the rear frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.

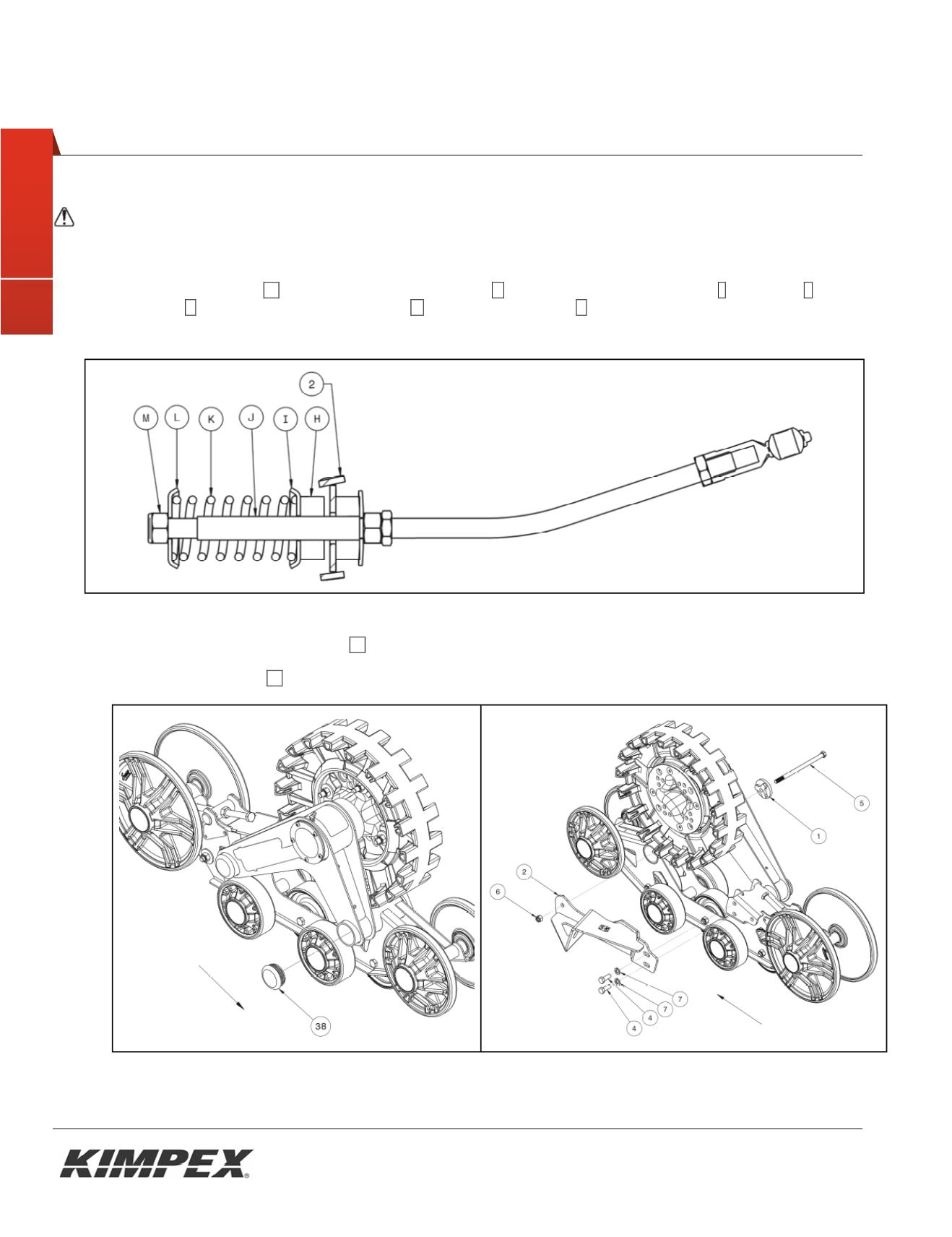

1) From the anti-rotation arm
03
, remove the M16-2.0 nylon nut
M
, the small center spring washer
L
, the spring
K
, the
spring washer
-
I
-
sliding on the steel slider sleeve
-
J
-
and a rubber bushing
H
.
See
figure 4.
2) Install the rear anti-rotation arm bracket
02
to the track system as follows:
a. Remove the plastic cap
38
. (see
figure 5A
)
B
A
Fig. 5
Front of
the ATV
Front of the ATV
Fig. 4
