6
Installation of the anti-rotation arm on the rear frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.

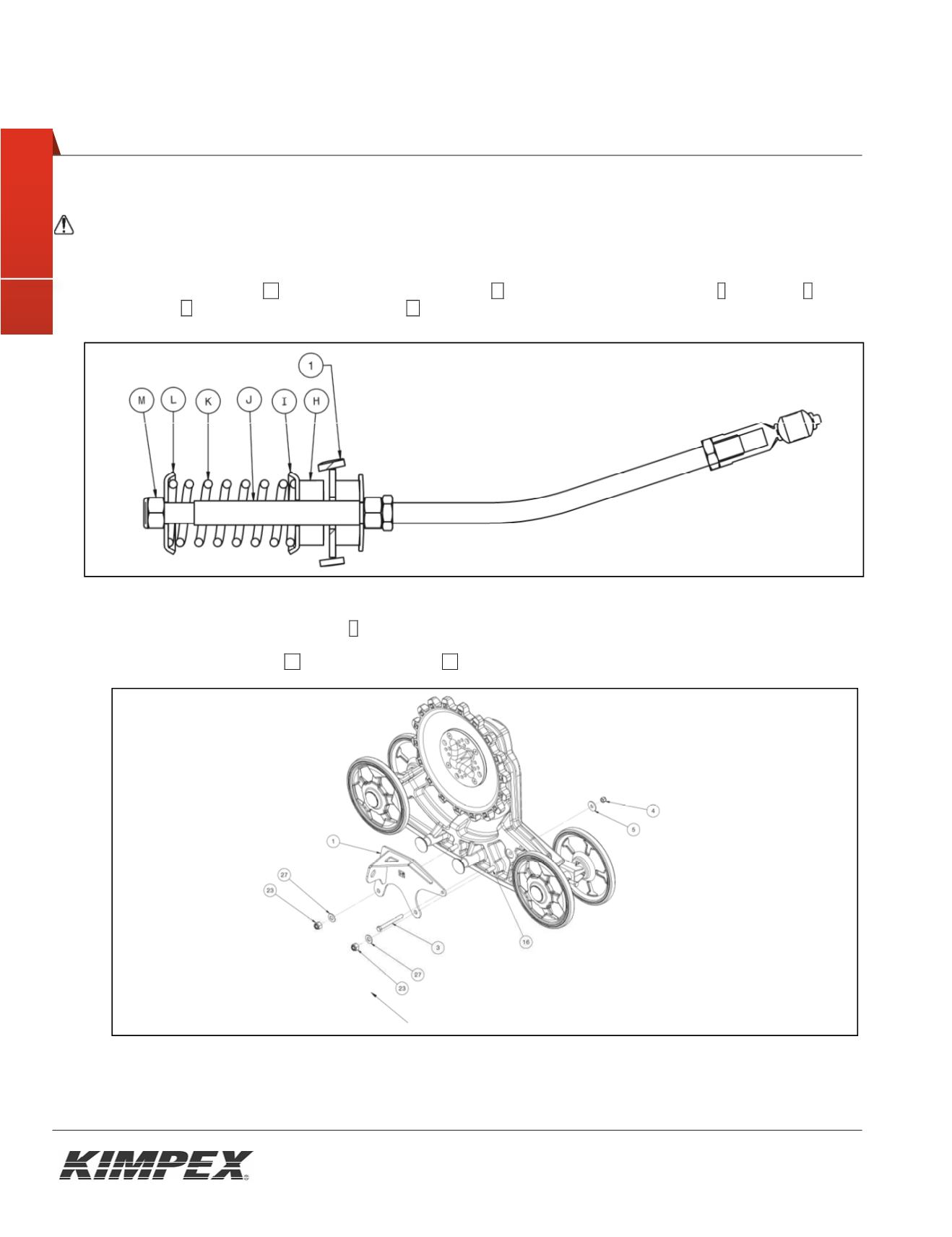

1) From the anti-rotation arm
02
, remove the M16-2.0 nylon nut
M
, the small center spring washer
L
, the spring
K
, the
spring washer
-
I
-
sliding on the steel slider sleeve
-
J
-
and a rubber bushing. See
figure 4.
2) Install the rear anti-rotation arm bracket
2
to the track system as follows:
a. Remove the existing nuts
23
and the flat washers
27
. See
figure 5.
NOTE : The wheels have not been showed for clearer the views. They do not have removed to perform this
installation.
See
figure 5.
Fig. 5
Front of the ATV
Fig. 4
