5/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375929
FOR XTR COMMANDER TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-11
•
A-2810479-00-11-EN
•
Lithographié au Canada / Litho’d in Canada
5
INSTALLATION
Installation of the anti-rotation arm on the front frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.

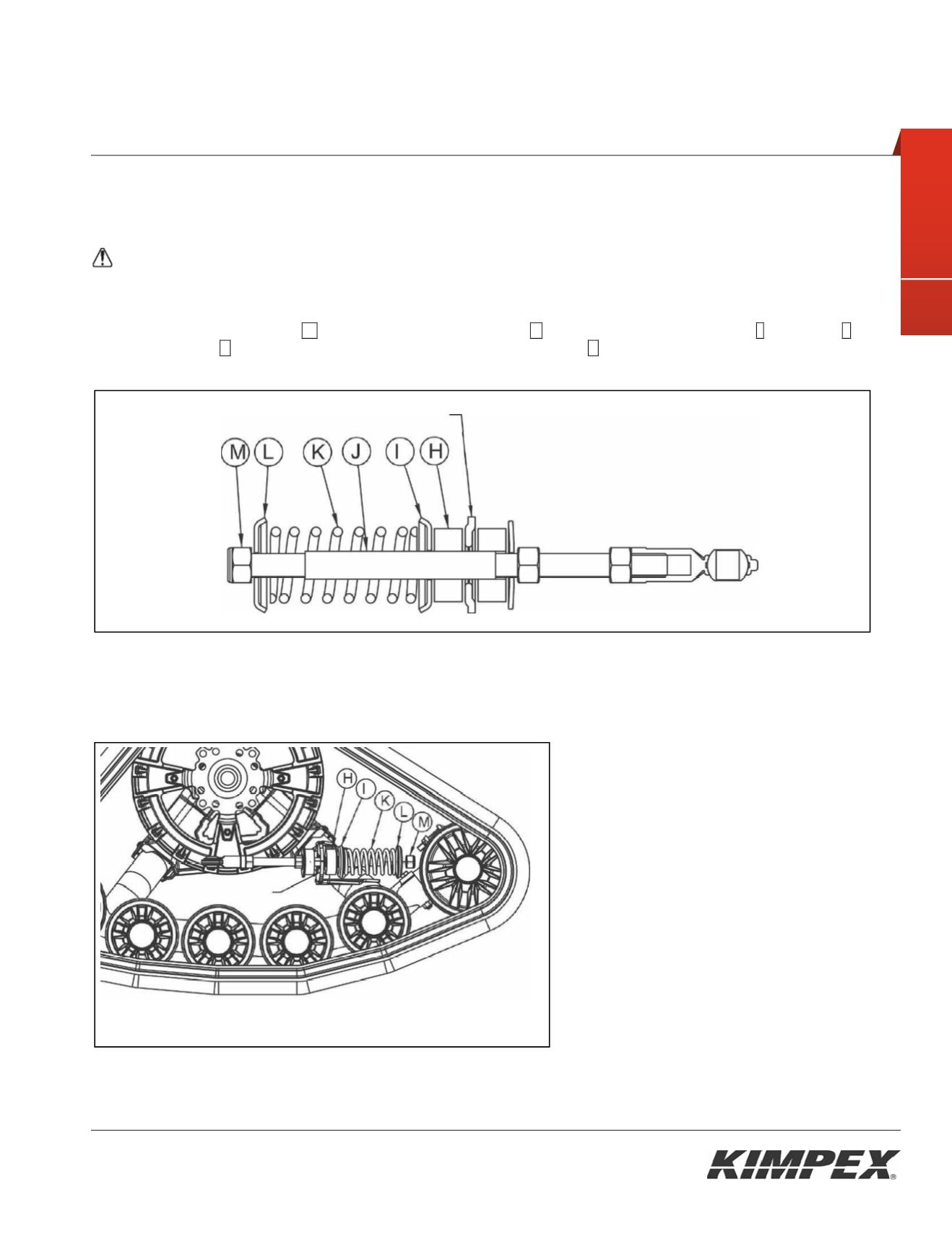

1) From the anti-rotation arm
02
, remove the M16-2.0 nylon nut
M
, the small center spring washer
L
, the spring
K
, the
spring washer
-
I
-
sliding on the steel slider sleeve and a rubber washer
H
. See
figure 3.
2) Insert the anti-rotation arm into the hole provided for this purpose on the track system.
3) Replace the components removed in
Step 1
in the same order. See
figure 4
and
figure 3.
Fig. 4
HOLE
FRONT FRAME
Fig. 3
