INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375929
FOR XTR COMMANDER TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810479-00-11
•
A-2810479-00-11-EN
2
FRONT ANTI-ROTATION ARM
(7990163-1)
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
A
M12-1.75 x 65 mm Cl.8.8
Carriage bolt
S2411-M1265-031
1
H
Rubber bushing
7990163-3-2000
2
B
Front rod-end spacer
7990163-1-6000
2
I
Spring washer
7990163-1-9000
1
C
M16-2.0 rod-end
7S9141-M0016-002 1
J
Steel slider sleeve
7990163-1-3000
1
D
M12-1.75 Cl.8.8 Nylon nut
S4186-M120P-021
1
K
Spring
7990163-1-4000
1
E
M16-2.0 Cl. 8 hex nut (jam nut)
S4113-M0160-021
2
L
Small center spring washer
7990163-1-2000
1
F
M16-2.0 x 300 mm Cl.10.9
Threaded stud
7990163-1-1000
1
M
M16-2.0 Cl.8.8 Nylon nut
S4186-M160Q-051
1
G
Conical washer
7990163-1-8000
1
N
M16-2.0 Cl.8.8 Nut
S4111-M160Q-021
2

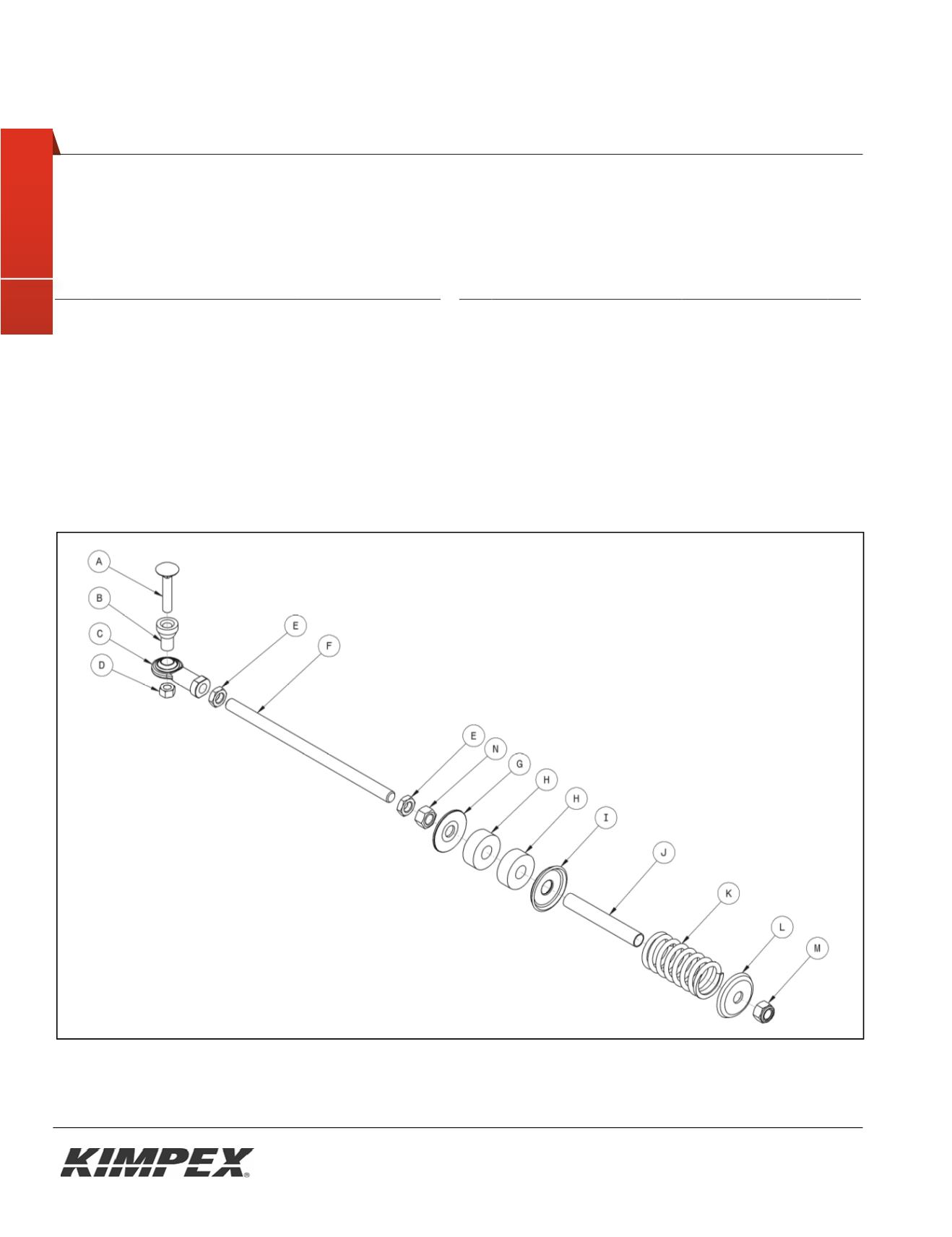

Fig. 1
