6/7
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375929
FOR XTR COMMANDER TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
Lithographié au Canada / Litho’d in Canada
•
2810479-00-11
•
A-2810479-00-11-EN
6
Installation of the anti-rotation arm on the rear frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove the three (3) M10-1.5 x 30 mm bolts
03
and the three (3) M10-1.5 nylon nuts
04
from the spar
01
.
See
figure 2.

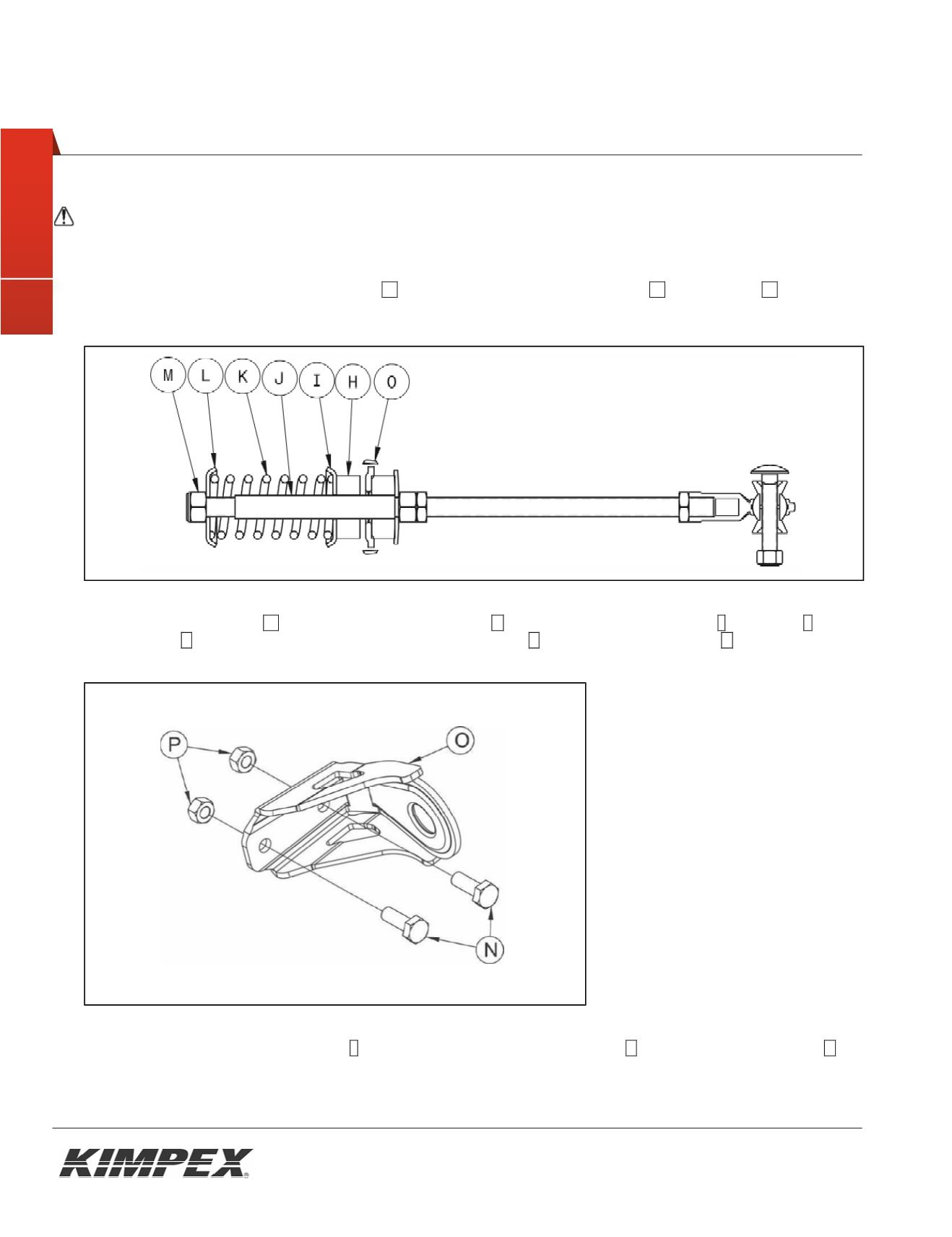

2) From the anti-rotation arm
02
, remove the M16-2.0 nylon nut
M
, the small center spring washer
L
, the spring
K
, the
spring washer
-
I
-
sliding on the steel slider sleeve, a rubber bushing
H
and the mounting bracket
O
. See
figure 5.
3) Remove the two (2) M10-1.5 nylon nuts
P
and the two (2) M10-1.5 X 30-mm bolts
N
from the mounting bracket
O
.
See
figure 6.
Fig. 6
Fig. 5
