ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375926
FOR COMMANDER WTX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-33
•
A-2810479-00-33-EN
•
Lithographié au Canada / Litho’d in Canada
7
b. Assemble the rear-right anti-rotation bracket
02
into the holes provided for this purpose in the frame of the track
kit using three (3) hex bolts
05
, a fender flat washer
07
, the rear clamping plate
03
, three (3) nylon nuts
06
and
the original nylon nut
AA
, removed in
step a
. (see
figure 5B
).
c.
Repeat
steps a
and
b
for the opposite side.
3) Insert the anti-rotation arm into the hole of the rear anti-rotation arm bracket
02
, already installed. (see
figure 5B
)
4) Replace the components removed in
step 1
in the same order illustrated in
figure 6
and
figure 4
.

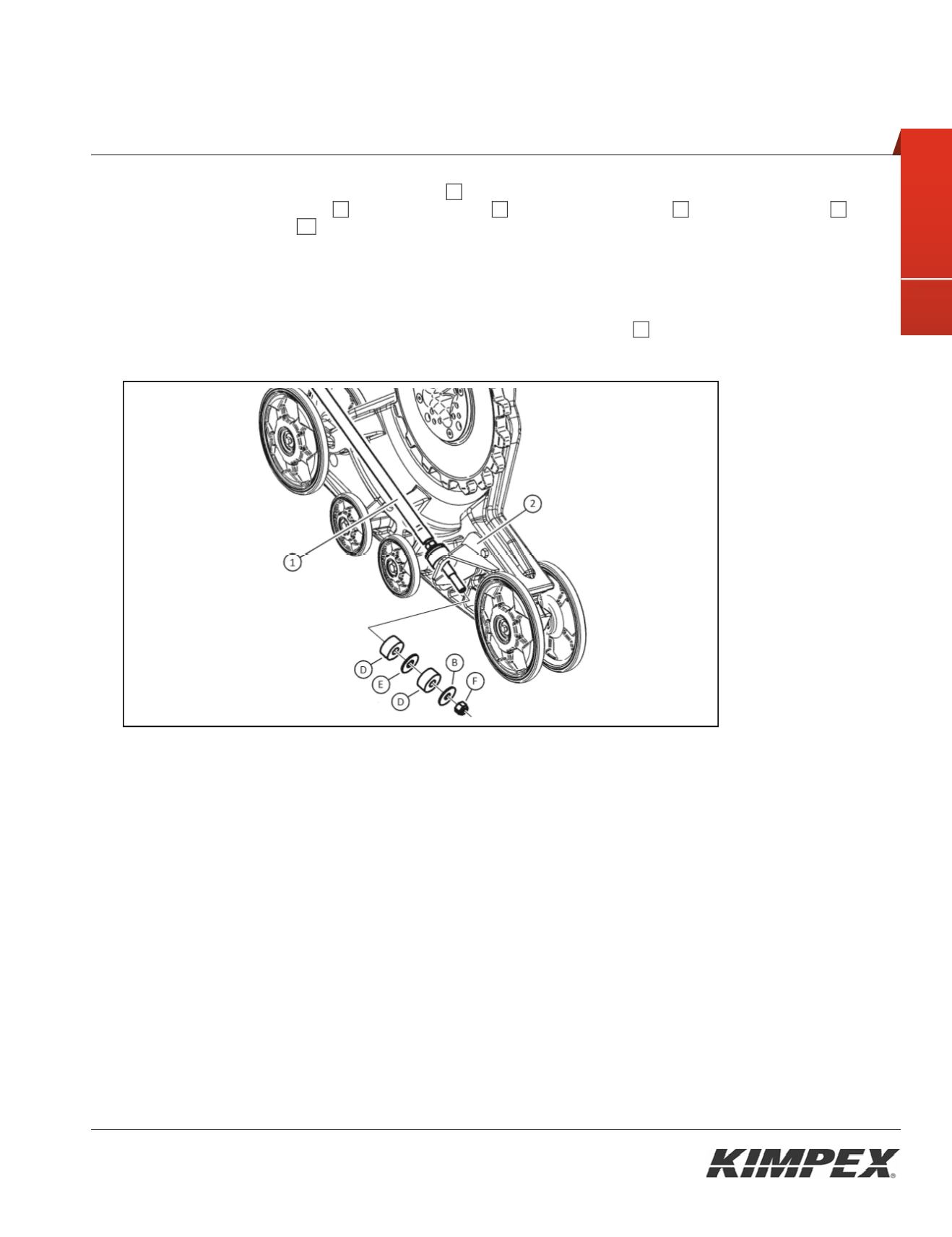

Fig. 6
