Installation of the anti-rotation arm on the rear frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.

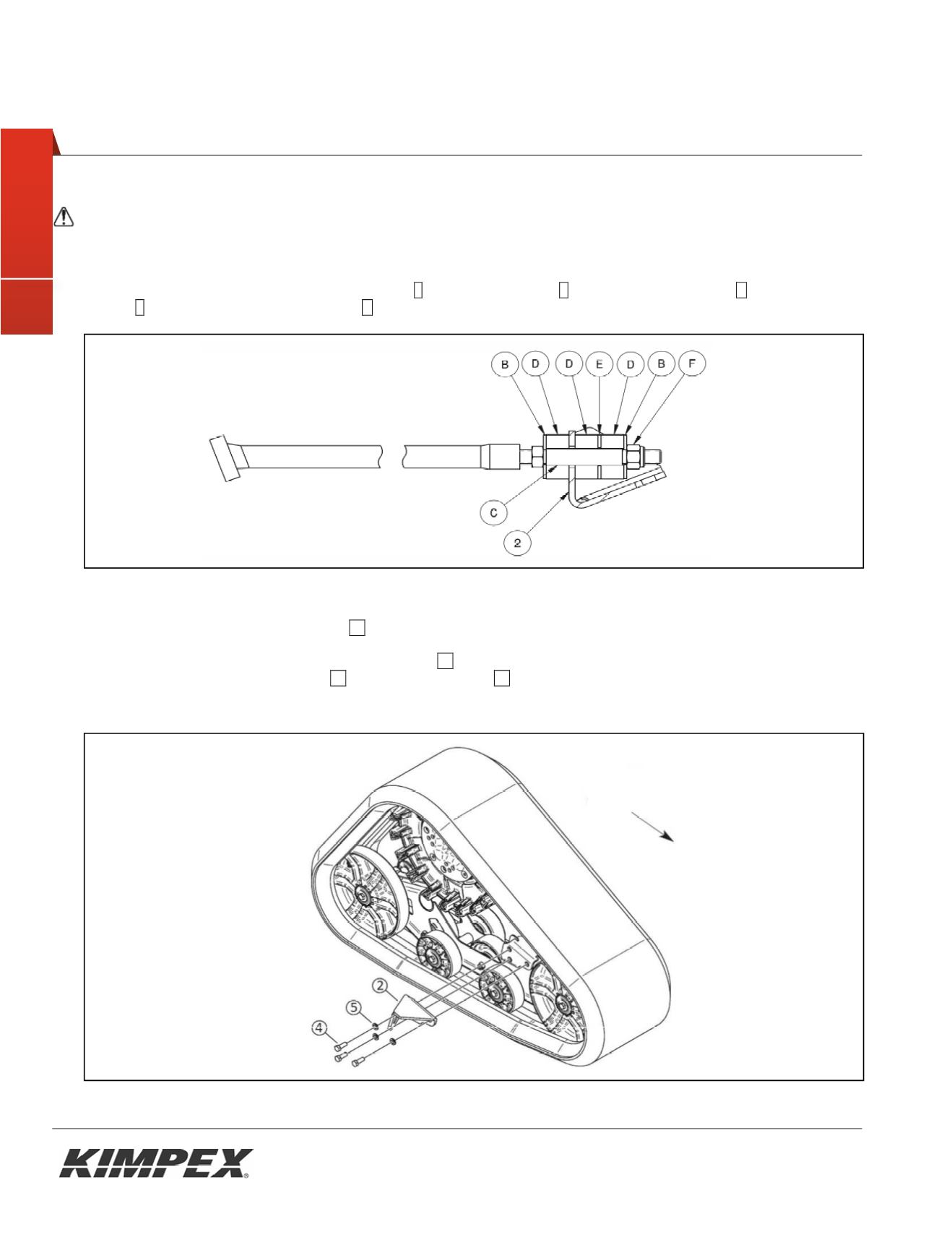

1) From the anti-rotation arm, remove the nylon nut
F
, the first flat washer
B
, the first rubber bushing
D
, the second flat
washer
E
and the second rubber bushing
D
. See
figure 4.
2) Install the rear anti-rotation arm bracket
02
to the track system as follows:
a. Assemble the rear-right anti-rotation arm bracket
02
into the holes provided for this purpose in the frame of the
track kit using three (3) hex bolts
04
and the lock washers
05
. (see
figure 5
)
Fig. 5
Rear of
The ATV
Fig. 4
