5/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375925
FOR COMMANDER TREX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-32
•
A-2810479-00-32-EN
•
Lithographié au Canada / Litho’d in Canada
5
INSTALLATION
Installation of the anti-rotation arm on the front frame
CAUTION
: The installation of the anti-rotation arm must be done before the installation of the track system on the
vehicle.
1) Remove the plastic cap
39
,
2) Assemble the free extremity of the front anti-rotation arm
C
to the hole made for this purpose in the frame of the
track kit using the hex bolt
F
, the flat washer
K
, the tightening spacer
E
, the neoprene washer
D
, the fender washer
L
and a nylon nut
I
. See
figure 3.
Torque at 23 ft-lbs
WARNING: Three (3) holes are available on the anti-rotation fixation plate; take the one which will make so that the
track kit is correctly in contact with the ground.
3) Reinstall the plastic cap
39
removed at
step 1.
4) Repeat
steps 1
to
3
for the opposite side.

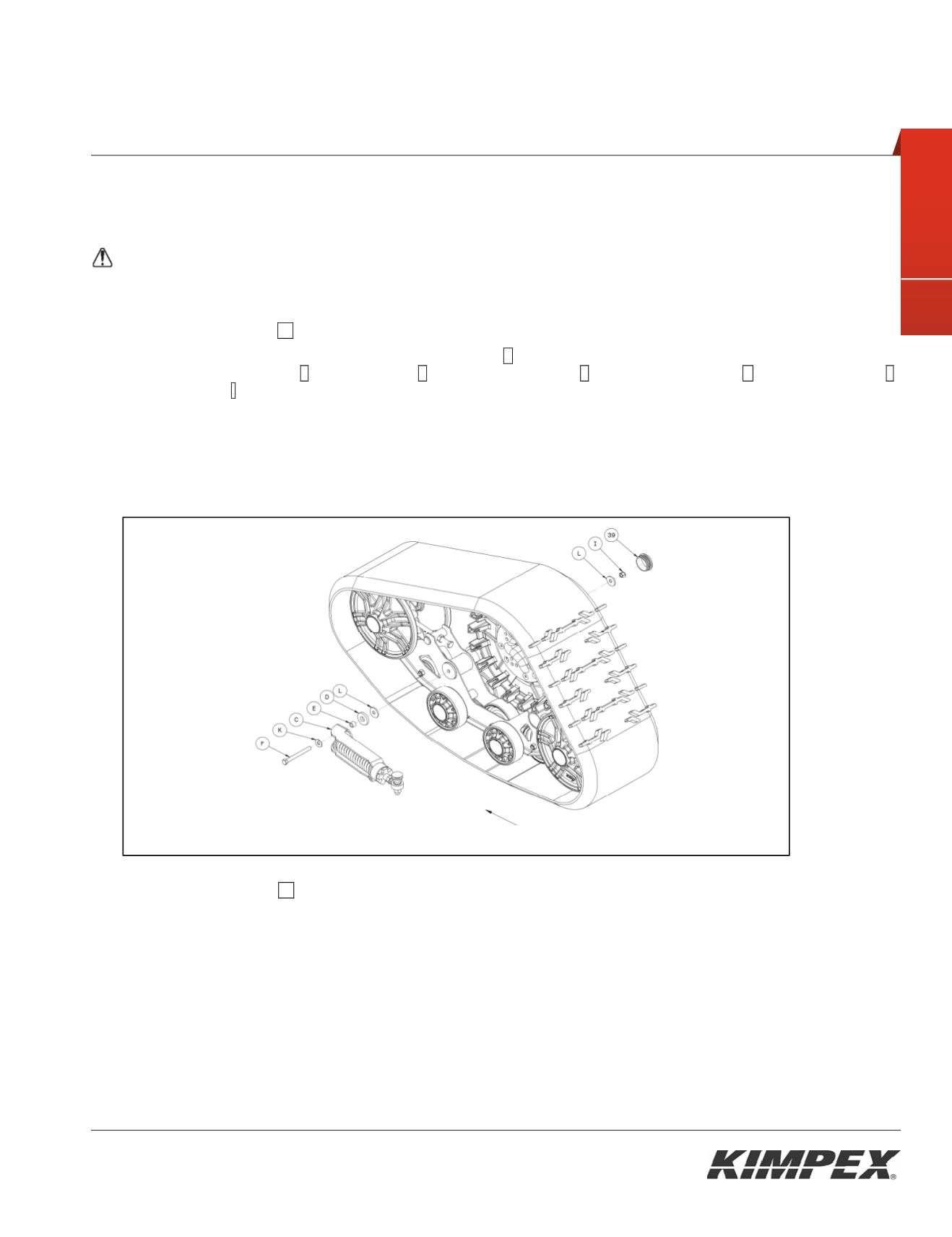

Fig. 3
Front of the ATV
