3/7
ATV
INSTALLATION MANUAL
ANTI-ROTATION ARMS SET
KIMPEX N
°
375926
FOR COMMANDER WTX TRACK SYSTEM. RIGID SUSPENSION VEHICLES
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain (New York) / 12919
2810479-00-33
•
A-2810479-00-33-EN
•
Lithographié au Canada / Litho’d in Canada
3

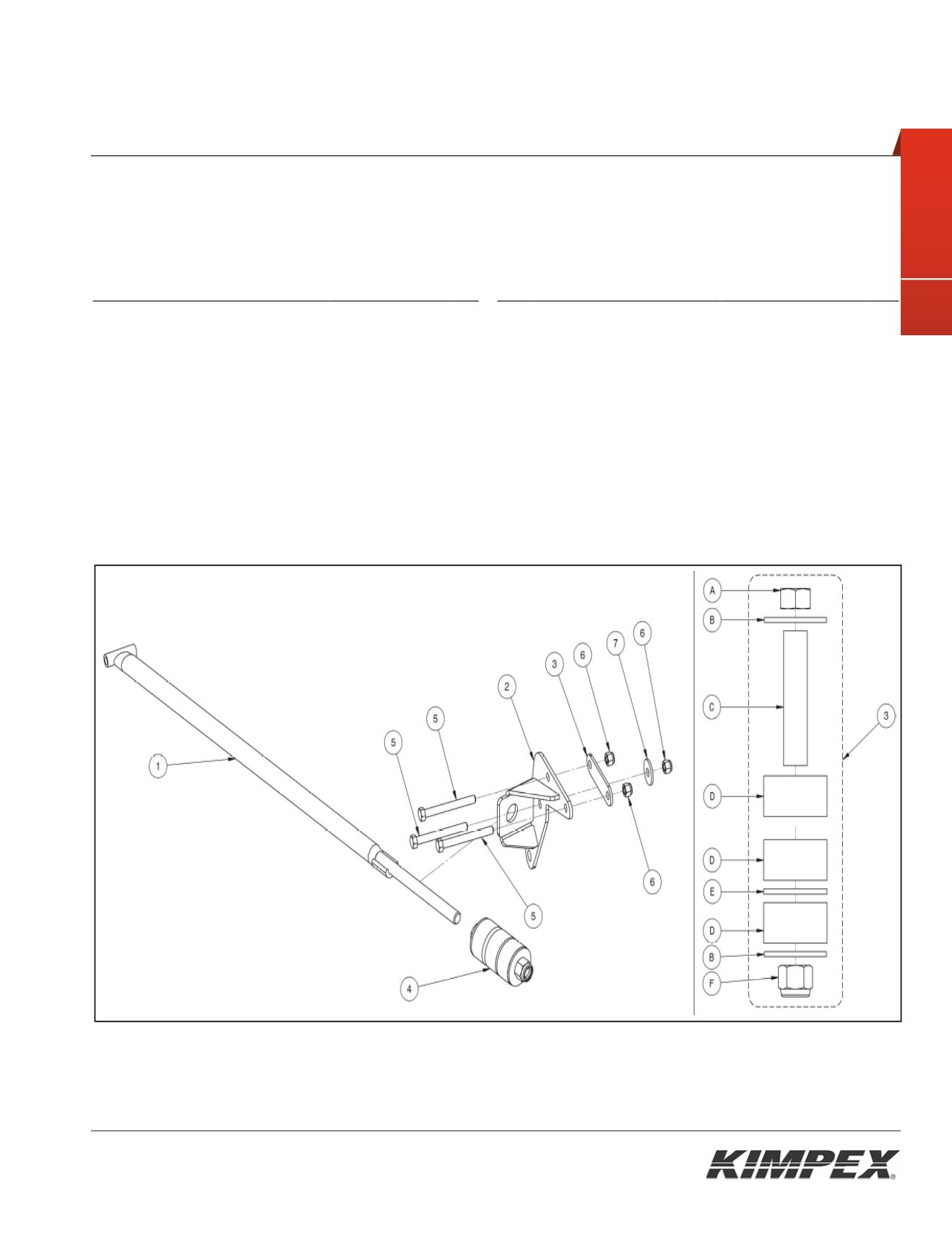

BRAS ANTI-ROTATION ARRIÈRE
(2810479-00-33)
Ref. Description
Item N
o
Qty Ref. Description
Item N
o
Qty
1
760mm anti-rotation arm
2810179-5000
1
A
5/8-11 Cl. 5 hex nut
S4111-11000-052
1
2
Right anti-rot. arm bracket
2810184-3000
1
B
50mm DE x 17mm DI x 3mm
Flat washer
S4612-M1600-01W
2
Left anti-rot. arm bracket
2810184-4000
1
C
Steel slider sleeve
2510039-3-20-2000
1
3
Clamping plate
2810184-5000
1
D
Rubber bushing
2510039-1-30-6000
3
4
Rear hardware set
7810182-1
1
E
51mm DE x 19mm DI x 3mm
Flat washer
S4612-01200-022
1
5
3/8-16 x 3-1/2" Cl. 5 hex bolt
S1711-00628-052
3
F
5/8-11 Nylon nut
S4186-11000-022
1
6
3/8-16 Nylon nut
S4186-10600-022
3
7
1-1/4" DE x 3/8" DI x 0.12"
Fender washer
S4614-00600-082
1
Fig.
