Mounting instructions
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 375721
For Commander Wide Track , WTX and Trex 2.0 Track Kits
2007-2009 Yamaha grizzly 700
KIMPEX INC.
/ 5355, ru St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810366
A-2810366
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
375721
For Commander WIDE TRACK, WTX, and TREX 2.0 Track Kits
MOUNTING INSTRUCTIONS
5
FRONT A-ARM BRACKET INSTALLATION
(see sketch D)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the front of the ATV off the ground and remove the
wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the A-arm
brackets. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 2-1/2”
carriage bolt (#
11
) into the hole
intended in the front left A-arm bracket (#
6
.
4)
Install the front left A-arm bracke (#
6
) under the lower front
A-arm so that the two parts fit snugly.
5)
Install the
1/4” nc X 2”
U-bolt (#
9
) above the lower front A-arm and
fasten it to the A-arm bracket (#
6
) using a
1/4” dia
flat washer
(#
17
) and
(2) 1/4” nc
self-locking nuts (#
13
) (screw the first
threads only).
6)
Install the
5/16” nc X 2-1/4”
U-bolt (#
10
) above the lower front
A-arm and fasten it to the A-arm bracket (#
6
) using a
5/16” dia
flat
washer (#
18
) and
(2) 5/16” nc
self-locking nuts (#
14
) (screw the
first threads only).
(see sketch E)
7)
Install the front left A-arm clamping plate (#
4
) above the lower
front A-arm and fasten it to the A-arm bracket (#
6
) using
(3)
3/8” nc X 2-1/2”
hex bolts (#
7
) and
(3) 3/8” nc
self-locking nuts (#
15
).
8)
Tighten all the bolts. Torque the
1/4” nc
nuts (#
13
) to 7 ft-lbs,
the
5/16” nc
nuts (#
14
) to 15 ft-lbs, and the
3/8” nc
nuts (#
15
) to
20 ft-lbs.
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
9)
Repeat
steps 2
to
8
for the opposite side.

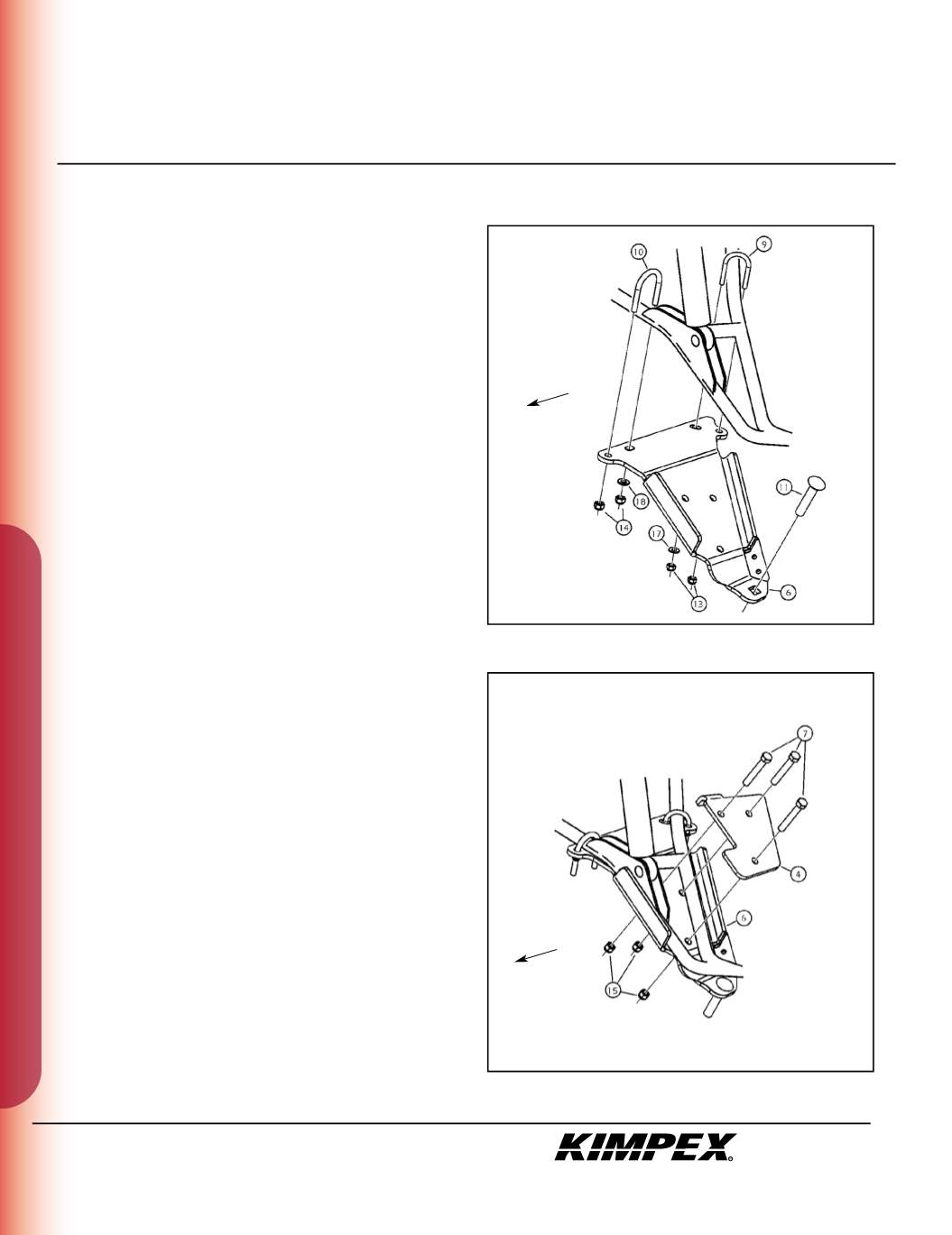

sketch D
LEFT
FRONT VIEW
LEFT
FRONT VIEW
Front of
the ATV
Front of
the ATV
sketch E
