4/9
ATV
KIMPEX INC.
/ 5355, rue St-Roch / Drummondville (Québec) Canada / J2B 6V4
KIMPEX USA
/ 100 Walnut Street / Champlain, New York / 12919
Lithographié au Canada / Litho’d in Canada
2810370
A-2810370 Rev. A
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374425
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
4
Neoprene flat washer
D
7810304-2000
1
9/16” O.D. X .39” I.D. X .44” tightening spacer
E
Q2212-10082
1
3/8” nc X 3-3/4” hex bolt
F
S1711-00630-052
1
3/8” nc self-locking nut
I
S4186-10600-022
1
3/8” dia Gr 8 flat washer
K
S4612-00600-0S1
1
3/8” nc X 4” hex bolt
AA
S1711-00632-052
1
3/8” I.D. X 1-1/4” O.D. X .120” Fender washer
BB
2810235-10-1000
2
Large ball joint spacer
A
2510039-1-20-2000
1
Short ball joint spacer
B
2510039-1-20-4000
1
1/2” nf nut
H
S4111-20800-022
1
1/2” nc self-locking nut
J
S4186-10800-022
1
1/2” dia X 1/2” nf ball joint
M
S9113-C0500-002
1
1/2” nc X 3” carriage bolt
Z
S2412-0G048-0A2
1
374109
Front anti-rotation
C
2810304-10A
1
2

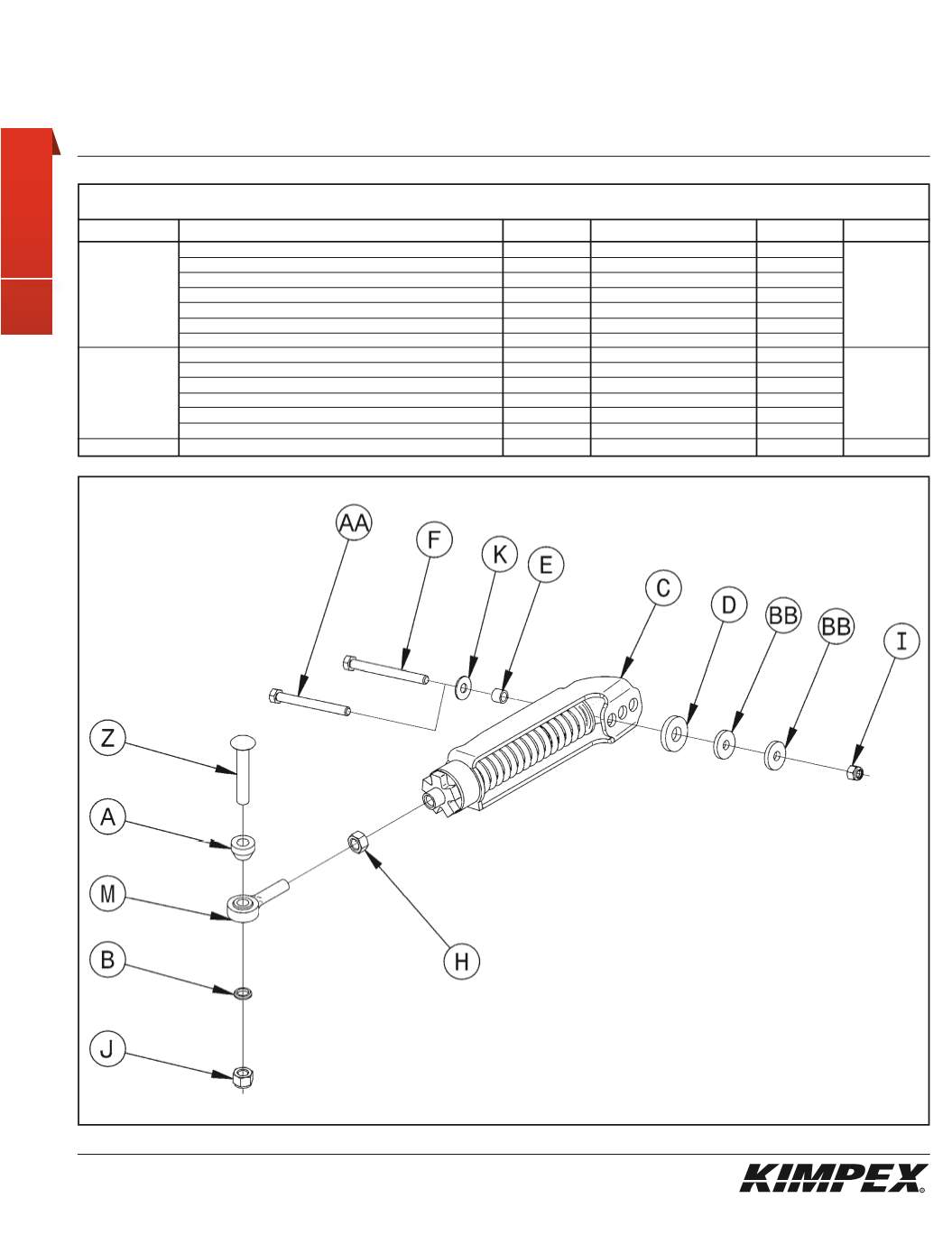

FRONT ANTI-ROTATION SPARE PARTS
Item No.
Qty / ATV
Quantity
Reference
Description
Item No. included
2
2
375541
375539
sketch C
