FRONT AND REAR A-ARM BRACKET KIT
Kimpex
#
374425
For Commander TREX UTV Track Kit
MOUNTING INSTRUCTIONS
2
FRONT LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000
2
2
Short ball joint spacer
2510039-1-20-4000
2
3
Tightening spacer
Q2212-10082
2
4
Main axle adapter
2810153-5000
2
5
Front anti-rotation assembly
2810304-10A
2
6
Front A-arm clamping plate
2810370-1-2000
2
7
3/8”-24 “T” nut
2810153-9000
8
8
Front left A-arm bracket
2810370-2-1000
1
Front right A-arm bracket
2810370-1-1000
1
9
3/8” nc X 4” hex bolt
S1711-00632-052
2
10
3/8” nc X 2” carriage bolt
S2412-0E032-002
8
Ref. Description
Item No.
Qty
11
1/2” nc X 3” carriage bolt
S2412-0G048-0A2
2
12
3/8” nc X 2-1/4” Allen socket
machine screw
S3161-B0D36-000
4
13
1/2” nf nut
S4111-20800-022
2
14
3/8” nc self-locking nut
S4186-10600-022
14
15
1/2” nc self-locking nut
S4186-10800-022
2
16
3/8” dia flat washer
S4612-00600-0S1
2
17
Support washer
2510235-10-1000
4
18
1/2” nf ball joint
S9113-C0500-002
2
19
Neoprene flat washer
7810304-2000
2

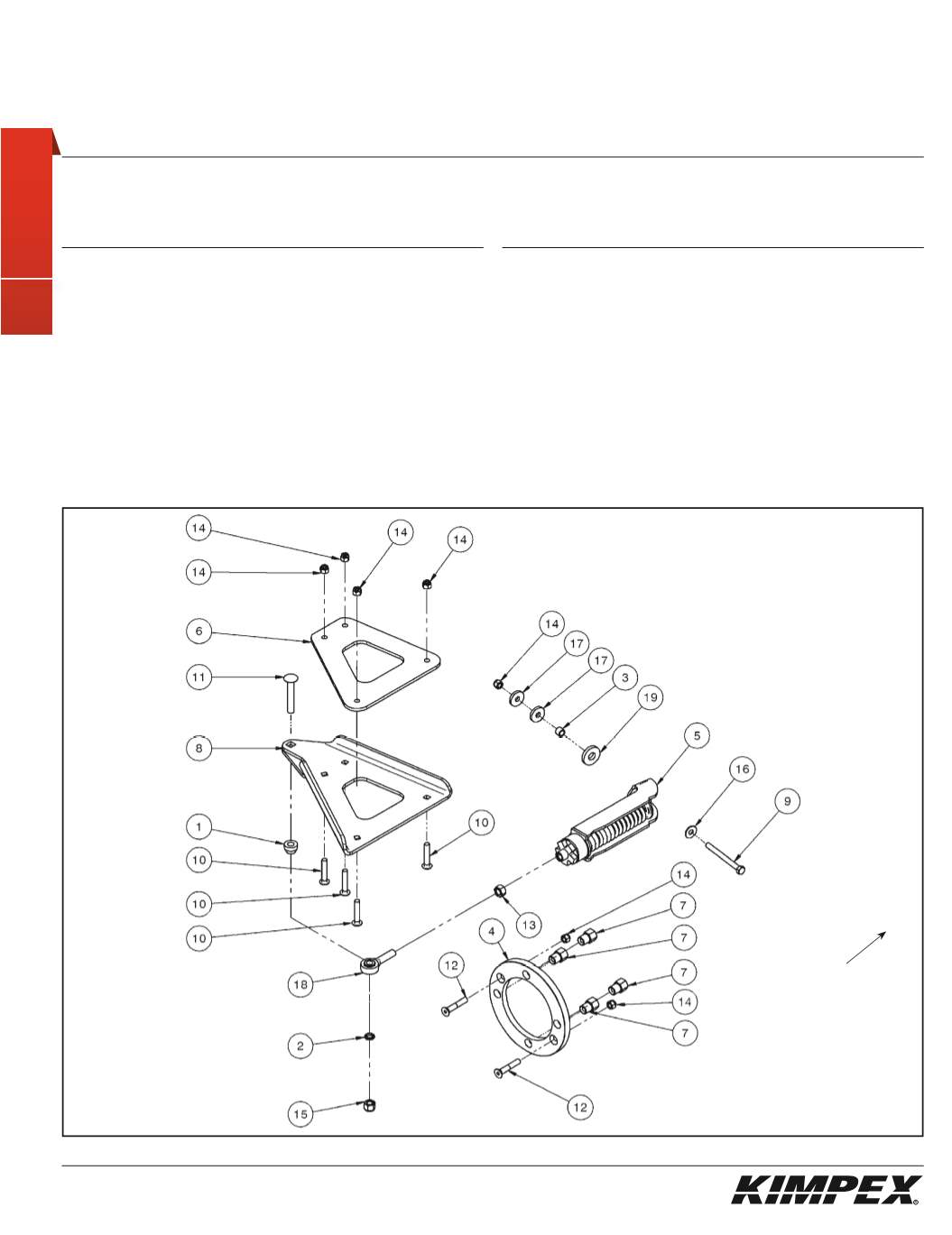

LEFT SIDE VIEW
Front of
the ATV
sketch A
