ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373719
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 660 2007-2008
FRONT ANTI-ROTATION INSTALLATION
(see sketch F)
NOTE :
Pay special attention to the orientation given to spacers (#5 and #6) during installation.
1)
Assemble the ball joint (#
15
) and the
1/2” nf
nut (#
14
) to the front anti-rotation assembly (#
13
)
.
2)
Install the large ball joint spacer (#
6
) with the narrow part facing down onto the
1/2” nc X 2-1/2”
carriage bolt (#
11
) installed in
step 3 of
the “FRONT SUB-TABLE INSTALLATION” section.
3)
Install the ball joint of the front anti-rotation assembly (#
15
) onto the bolt (#
11
), below the large ball joint spacer (#
6
). Install the short
ball joint spacer (#
5
) with the narrow part facing up, below the anti-rotation assembly (#
13
).
4)
Tighten the assembly with the
1/2” nc
self-locking nut (#
10
). Torque to 55 ft-lbs.
WARNING :
If the bolts are not sufficiently tightened, there is a risk of them becoming loose, of parts detaching and risk
of loss of control over the vehicle, as well as risk of personal injury.
5)
Rotate the anti-rotation assembly (#
13
) towards the center of the ATV to prevent it from interfering with the installation of the track kit.
NOTE :
Refer to the track kit manual for the correct adjustment.
6)
Repeat
steps 1
to
5
for the opposite side.

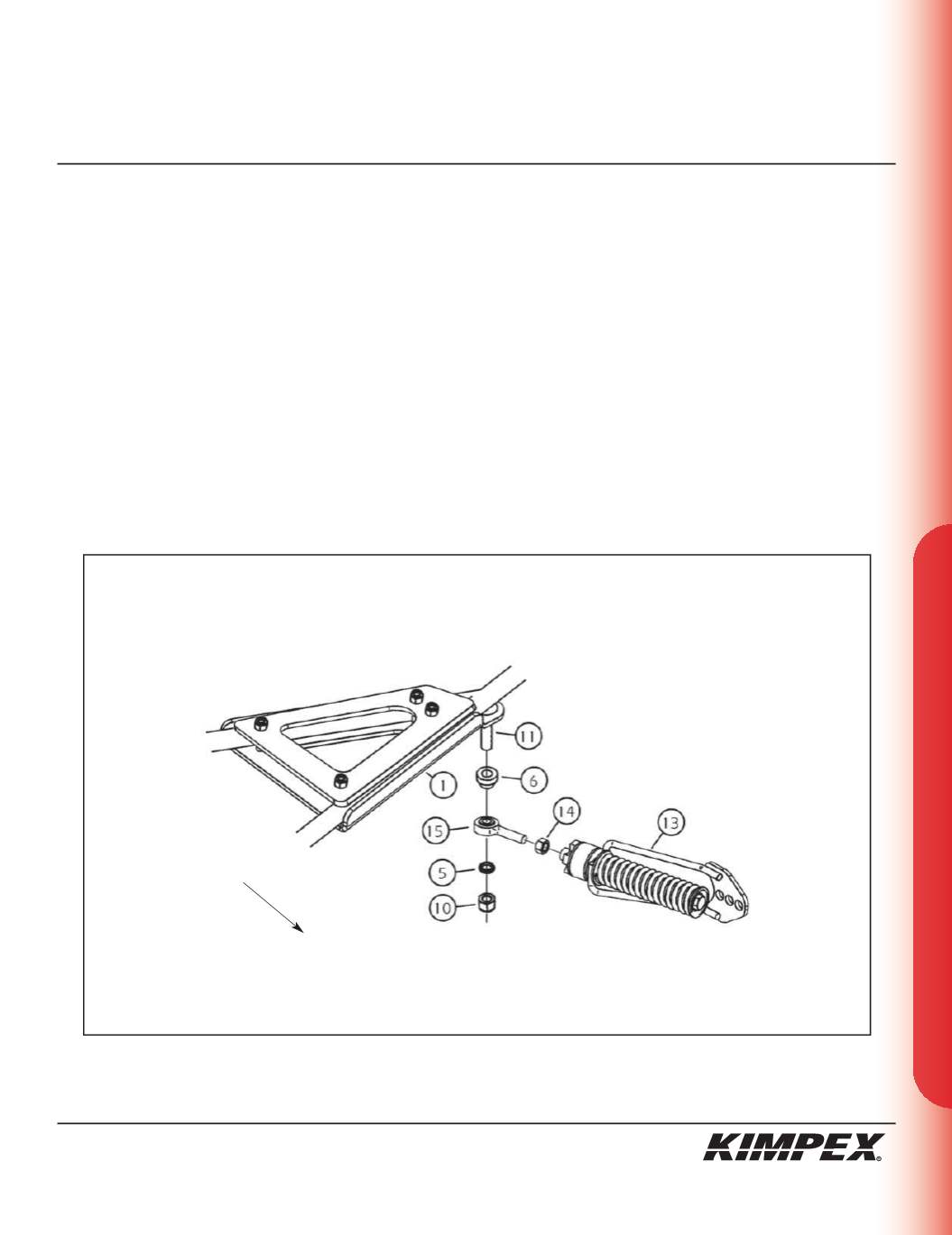

sketch F
LEFT
FRONT VIEW
Front of the ATV
