ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373719
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 660 2007-2008
REAR ANTI-ROTATION INSTALLATION
(see sketch H)
1)
Screw the
5/8” nc
nut (#
9
) onto the threaded part of the anti-rotation tube (#
2
).
2)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
5
) and the bushing spacer tube (#
4
) onto the threaded part of the anti-rotation
tube (#
2
).
3)
Install the rubber bushing (#
11
) over the bushing spacer tube (#
4
).
4)
Slide the anti-rotation assembly into the hole on the bottom of the rear sub-table plate (#
1
).
5)
Install the rubber bushing (#
11
), the
3/4” I.D. X 2” O.D. X 1/8”
flat washer (#
10
), and the other rubber bushing (#
11
) over the bushing spacer
tube (#
4
).
6)
Install the
17mm I.D. X 50mm O.D. X 3mm
flat washer (#
5
) onto the threaded part of the anti-rotation tube (#
2
).
7)
Screw the
5/8” nc
self-locking nut (#
8
) onto the threaded part of the anti-rotation tube (#
2
). Do not overtighten.
NOTE :
Refer to the track kit manual for the correct adjustment.
8)
Repeat
steps 1
to
7
for the opposite side.
NOTE :
Under extreme conditions of use of the Track Kit, it is possible that the tracks come into contact with the plastics
of the vehicle.

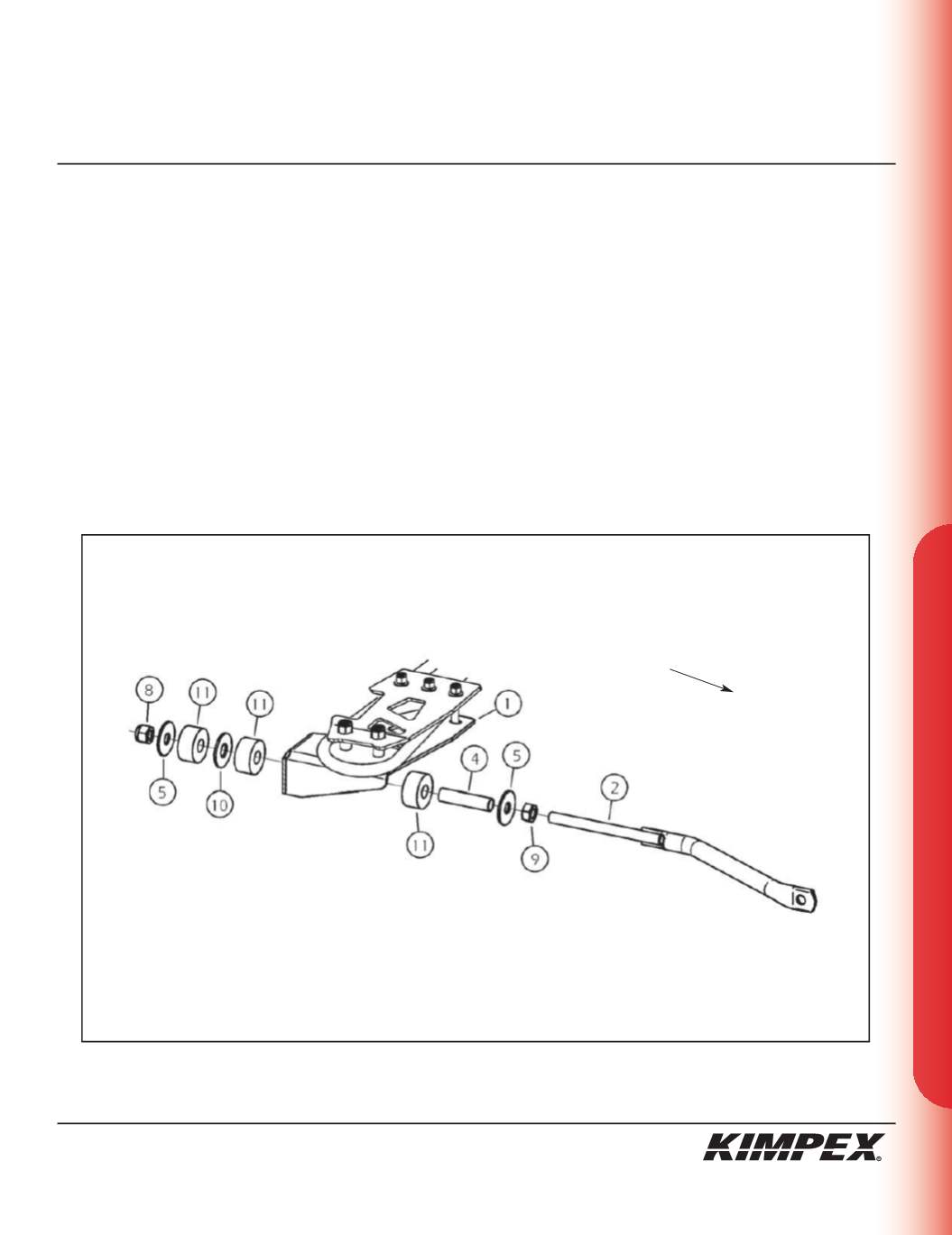

sketch H
LEFT
REAR VIEW
Rear of the ATV
