ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373719
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 660 2007-2008
FRONT SUB-TABLE INSTALLATION
(see sketch E)
WARNING :
Prior to installation, turn off the engine, put
in two-wheel driving mode, and block the wheels.
1)
Raise the front of the ATV off the ground and remove the
wheels.
WARNING :
When the ATV is raised, make sure that it is
properly secured/supported to prevent it from
accidentally falling during the installation of the sub-
tables. If not properly secured/supported, serious
physical injury could occur.
2)
Remove the front left CV shield. Do not discard. They will be
reinstalled later.
3)
Insert the
1/2” nc X 2-1/2”
carriage bolt (#
11
) into the hole
intended in the front left sub-table (#
1
).
4)
Install the front left sub-table (#
1
) under the lower front a-arm so
that the two parts fit snugly.
5)
Install the front sub-table clamping plate (#
4
) above the lower
front a-arm and fasten them to the sub-table (#
1
) using the
(4)
3/8” nc X 2”
hex bolts (#
3
) and the
(4) 3/8” nc
self-locking nuts (#
2
).
Torque to 20 ft-lbs
IMPORTANT :
Tighten in a manner not to permanently
deform the assembly.
6)
Repeat
steps 2
to
5
for the opposite side.

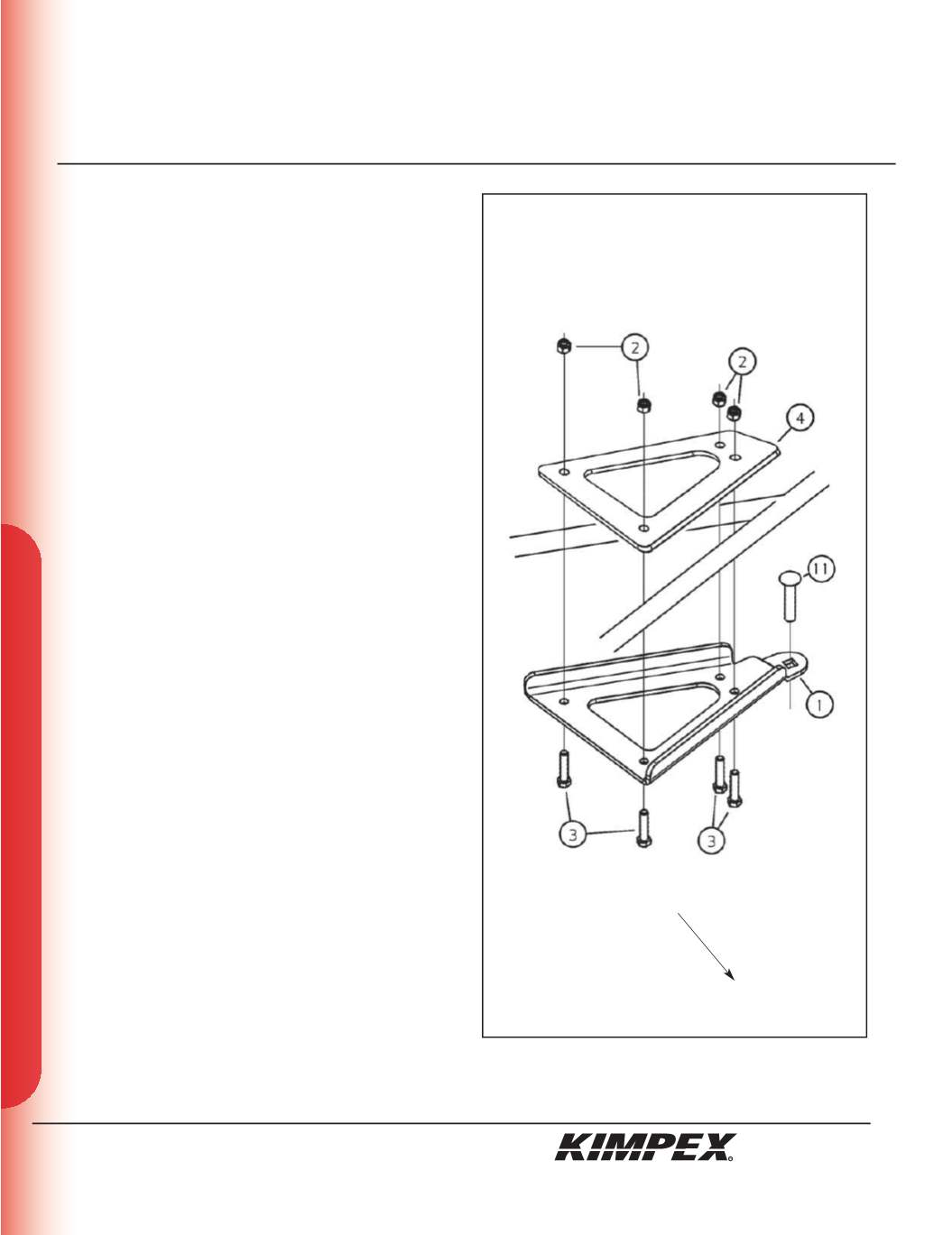

sketch E
LEFT
FRONT VIEW
Front of the ATV
