ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374010
For "Commander" track kit / Artic Cat Prowler

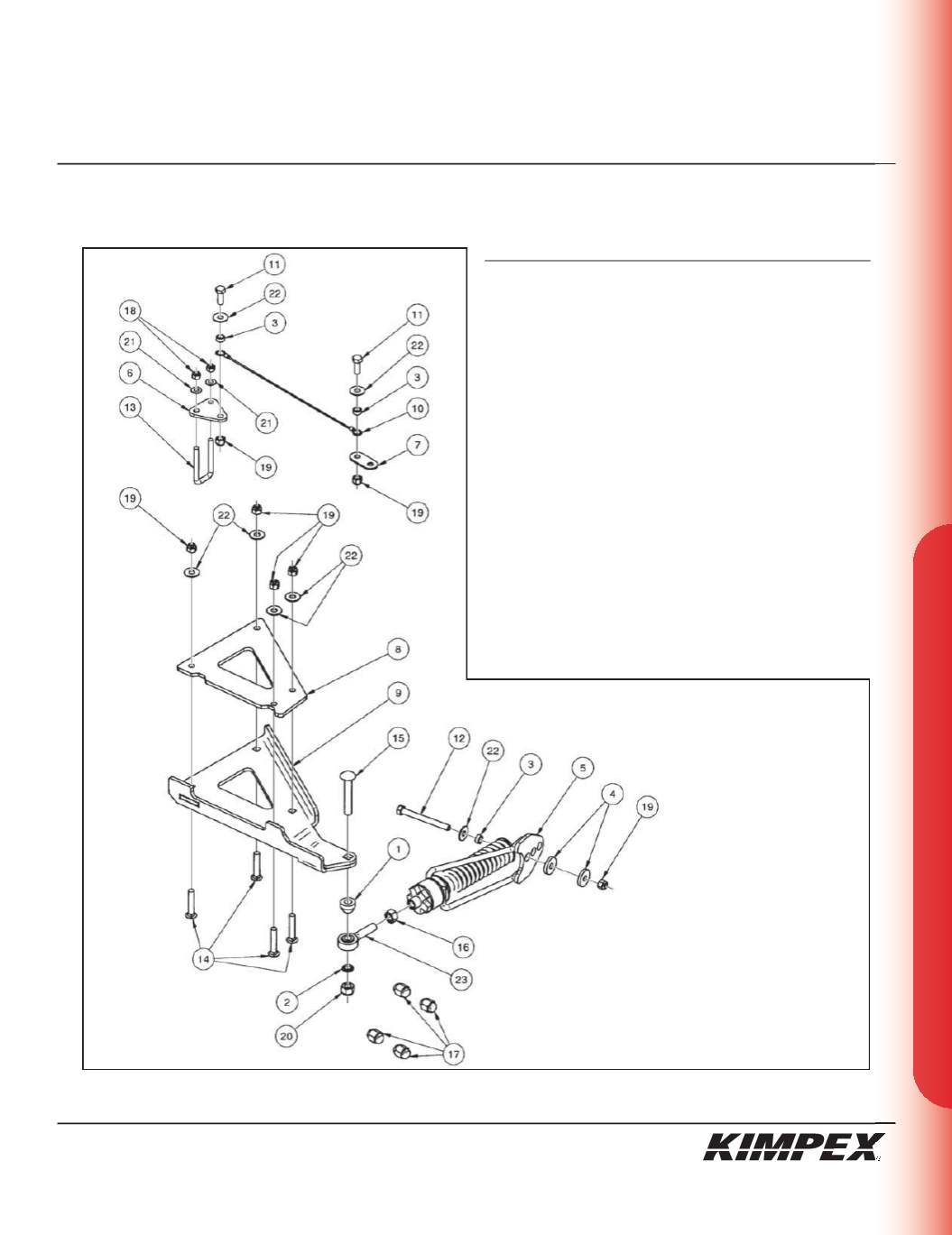

FRONT LEFT AND RIGHT A-ARM BRACKET
sketch A
Ref. Description
Item No.
Qty
1
Large ball joint spacer
2510039-1-20-2000 2
2
Short ball joint spacer
2510039-1-20-4000 2
3
Tightening spacer
2510039-1-30-4000 6
4
Flat washer
2510235-10-1000 4
5
Front anti-rotation assembly
2810203-40
2
6
Front limiter frame bracket
2810204-8000
2
7
Front limiter axle bracket
2810204-9000
2
8
Front A-arm clamping plate
2810204-5000
2
9
Front left A-arm bracket
2810204-2000
1
Front right A-arm bracket
2810204-1000
1
10
Opening cable
2810204-7000
2
11
3/8” nc X 1” hex bolt
S1711-00608-052 4
12
3/8” nc X 3-3/4” hex bolt
S1711-00630-052 2
13
5/16” nc X 2-3/4” U-bolt
S2215-D1639-002 2
14
3/8” nc X 2” carriage bolt
S2412-0E032-0A2
8
15
1/2” nc X 3” carriage bolt
S2412-0G048-0A2 2
16
1/2” nc nut
S4111-20800-022 2
17
M10 wheel nut
S4178-M010M-028 8
18
5/16” nc self-locking nut
S4186-10500-022 4
19
3/8” nc self-locking nut
S4186-10600-022 14
20
1/2” nc self-locking nut
S4186-10800-022 2
21
5/16” dia flat washer
S4612-00500-002 4
22
3/8” dia flat washer
S4612-00600-002 14
23
Ball joint
S9113-C0500-002 2
