ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 374010
For "Commander" track kit / Artic Cat Prowler

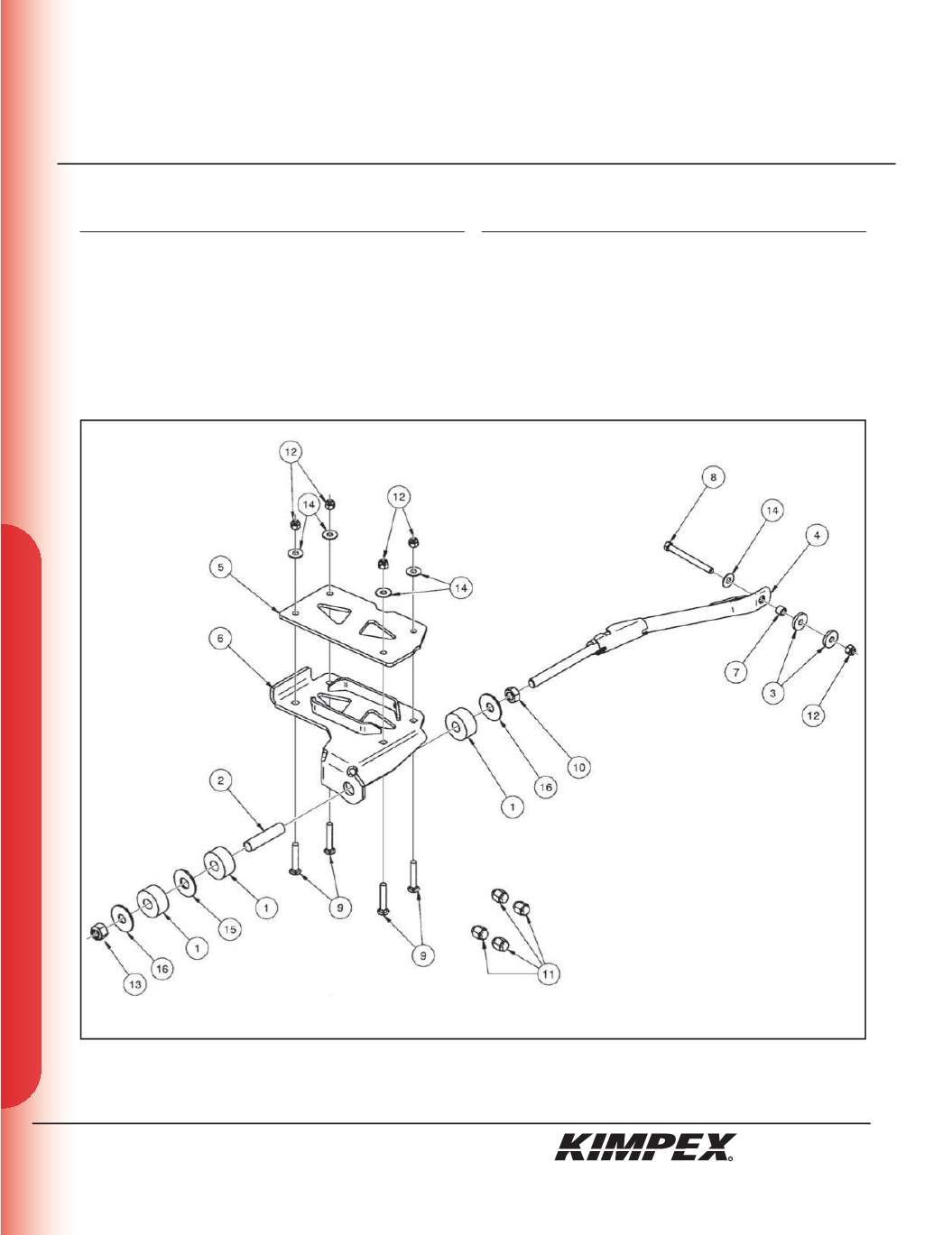

REAR LEFT AND RIGHT A-ARM BRACKET
Ref. Description
Item No.
Qty
1
Rubber bushing
2510039-1-30-6000 6
2
Bushing spacer tube
2510039-3-20-2000 2
3
Flat washer
2510235-10-1000 4
4
Rear anti-rotation tube
2810203-7000
2
5
Rear A-arm clamping plate
2810204-6000
2
6
Rear left A-arm bracket
2810204-4000
1
Rear right A-arm bracket
2810204-3000
1
7
Tightening spacer
Q2212-10082
2
8
3/8” nc X 4” hex bolt
S1711-00632-052 2
9
3/8” nc X 2-1/4” carriage bolt
S2412-0E036-0A2
8
Ref. Description
Item No.
Qty
10
5/8” nc nut
S4111-11000-052 2
11
M10 wheel nut
S4178-M010M-028 8
12
3/8” nc self-locking nut
S4186-10600-022 10
13
5/8” nc self-locking nut
S4186-11000-052 2
14
3/8” dia flat washer
S4612-00600-002 10
15
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
16
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
sketch B
