ATV
MOUNTING INSTRUCTIONS
FRONT AND REAR A-ARM BRACKET KIT
Kimpex
# 373719
For "Commander Wide Track" and " Commander trek Track kit
Yamaha Grizzly 660 2007-2008
REAR LEFT AND RIGHT SUB-TABLE
Ref. Description
Item No.
Qty
1
Rear left sub-table plate
2810238-5000
1
Rear right sub-table plate
2810238-4000
1
2
Rear anti-rotation tube
2810153-20-1000 2
3
Tightening spacer
2510039-1-30-4000 2
4
Bushing spacer tube
2510039-3-20-2000 2
5
17mm I.D. X 50mm O.D. X 3mm
flat washer
S4612-M1600-01W 4
6
3/8” nc X 3-1/2” hex bolt
S1711-00628-052 2
7
3/8” dia flat washer
S4612-00600-002 14
8
5/8” nc self-locking nut
S4186-11000-022 2
9
5/8” nc nut
S4111-11000-022 2
10
3/4” I.D. X 2” O.D. X 1/8”
flat washer
S4612-01200-022 2
Ref. Description
Item No.
Qty
11
Rubber bushing
2510039-1-30-6000 6
12
3/8” nc self-locking nut
S4186-10600-022 8
13
3/8” I.D. X 1-1/4” O.D. X .120”
Fender washer
S4614-00600-082 4
14
3/8” nc X 2-1/2” hex bolt
S1711-00620-052 6
15
1/2” nc self-locking nut
S4186-10800-022 4
16
1/2” nc X 3” hex bolt
S1711-00824-052 4
17
Rear left tightening plate
2810238-7000
1
Rear right tightening plate
2810238-6000
1
18
3/8” nc X 1” hex bolt
S1711-00608-052 2
19
3/8” dia lock washer
S4511-00600-002 2
Rear of
the ATV
*
“Commander Wide Track” Models Only.
**
“Commander Trek” Models Only.

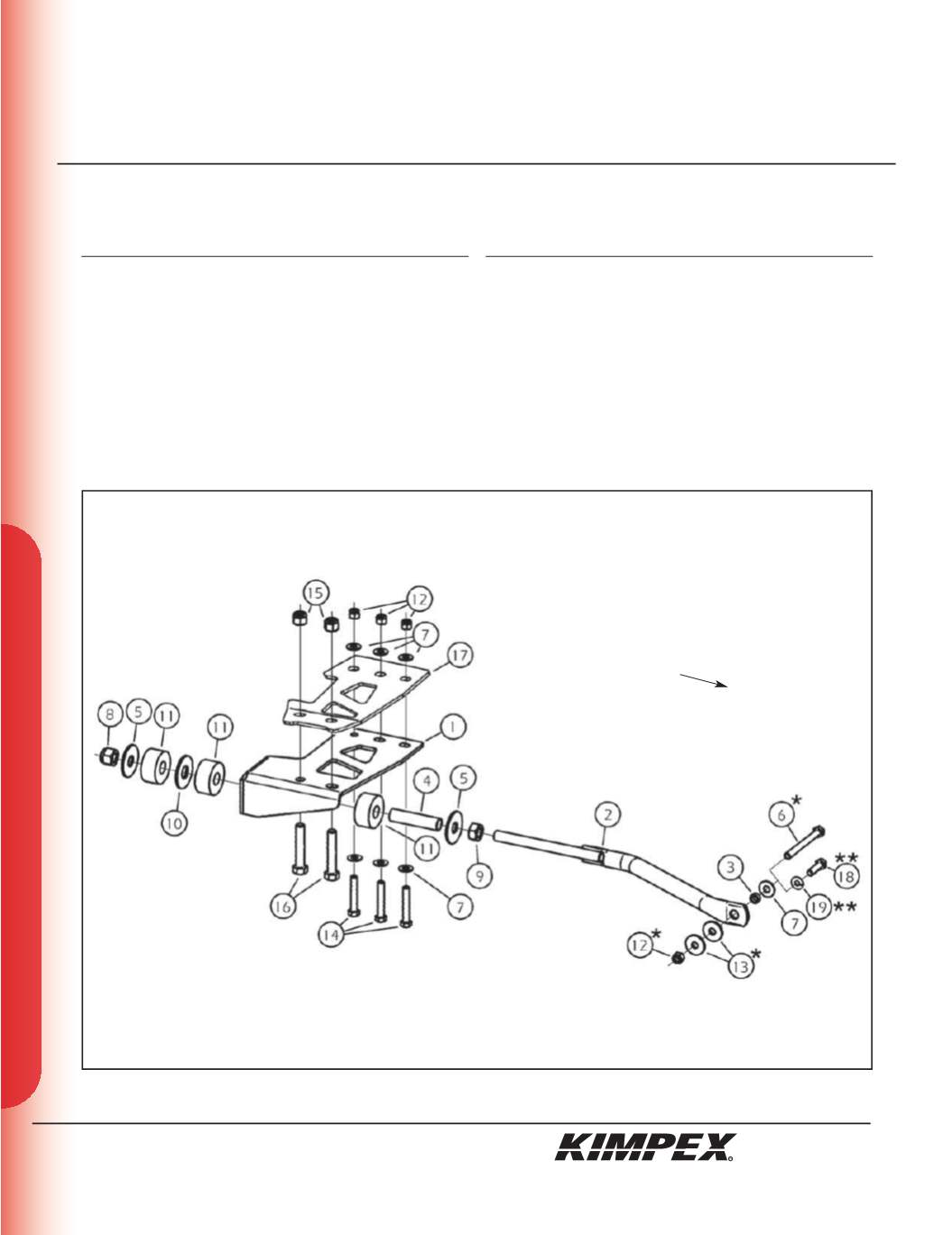

LEFT SIDE VIEW
sketch B
